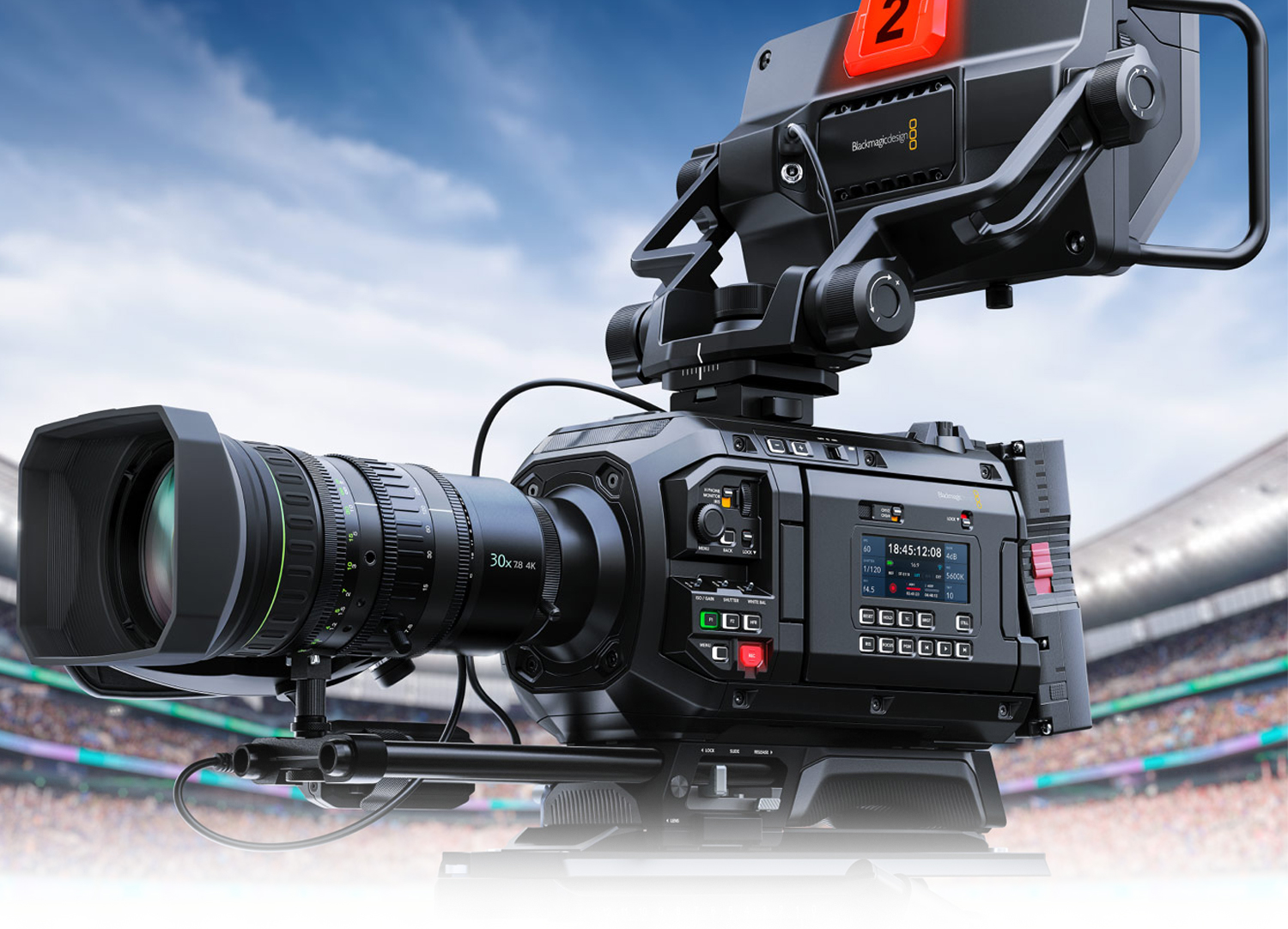

Revolutionary digital film camera designed for cinematic live production with 100G Ethernet and SMPTE-2110 output up to 440fps!
Camera Features
|
Effective Sensor Size |
35.64mm x 23.32mm (Large Format) |
|
Pixel Pitch |
2.9 microns |
|
Lens Mount |
PL mount. Interchangeable with URSA Cine lockable EF mount included. |
|
Lens Control |
Lens control of compatible EF lenses. Lens data from compatible PL lenses and control of some PL lenses. |
|
Dynamic Range |
16 Stops |
|
Shooting Formats |
12,288 x 8040 (12K 3:2 open gate) 9408 x 6264 (9K 3:2) 8192 x 5360 (8K 3:2 open gate) 4608 x 2592 (4.6K 16:9 B4 crop) 4096 x 2680 (4K 3:2 open gate) |
|
Frame Rates |
Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Maximum sensor frame rate dependent on the selected. |
|
High Speed Frame Rates |
12K 3:2 open gate up to 80 fps 12K 17:9 up to 100 fps 12K 2.4:1 up to 120 fps 9K 3:2 Super 35 up to 100 fps 8K / 4K 3:2 open gate up to 144 fps 8K / 4K 2.4:1 up to 224 fps 4.6K B4 crop 16:9 up to 240 fps |
|
Built-in ND Filters |
Button-activated ND filters with clear, 2-stop, 4-stop, and 6-stop IR ND filters. |
|
Focus |
Focus button turns on peaking; auto-focus available using compatible lenses. |
|
Iris Control |
Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses; iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode. |
|
Screens |
2 x Monitoring Screens 1 x Camera Status Screen |
|
Monitoring Screen Dimensions |
5 inches. |
|
Monitoring Screen Resolution |
1920px x 1080px |
|
Monitoring Screen Brightness |
1500 nits. |
|
Monitoring Screen Type |
LCD capacitive touchscreen |
|
Metadata Support |
Automatically populated lens data from i/Technology with compatible PL, LPL lenses and electronic EF lenses when using optional EF lens mount. Automatic recording of camera settings and slate data such as project, scene number, take, and special notes. |
|
Controls |
Touchscreen menus on 5-inch screen. Push buttons for other controls. 6 assignable shortcut keys plus 6 assignable viewfinder shortcut keys on optional URSA Cine EVF. |
Audio
|
Microphone |
Integrated stereo microphone. |
|
Built in Speaker |
1 x mono speaker. |
Media
|
Media |
1 x Blackmagic Media Module. |
|
Media Format |
Blackmagic |
Connections
|
Total Video Outputs |
3 |
|
SDI Video Outputs |
2 |
|
SDI Rates |
1.5G, 3G, 6G, 12G. |
|
100G 2110 IP Networks |
1 x 100G QSFP28 connection. |
|
2110 IP Video Outputs |
1 x 100G QSFP28 connection. |
|
2110 IP Video Inputs |
1 x 100G QSFP28 connection. |
|
Senders and Receivers per 100G |
1 x Ultra HD |
|
Analog Audio Inputs |
2 x XLR analog switchable between mic, line and AES audio. Phantom power support. 1 x 3.5mm headset jack |
|
Analog Audio Outputs |
1 x 3.5mm headset jack |
|
Reference Inputs |
Tri-Sync/Black Burst and Timecode. PTP clock and timecode over 2110 IP network. |
|
Viewfinder |
1 x Viewfinder USB-C with video, power, camera control data and locking connector. Works with URSA Cine EVF and PYXIS Monitor. |
|
USB-C Monitor Outputs |
2 x USB-C side monitor ports support URSA Cine EVF, PYXIS Monitor or DisplayPort monitors. |
|
Accessories |
1 x 7-pin Lemo ‘EXT’ for power out, serial communication, and run/stop. 1 x 3-pin Fischer ‘RS’ for power out and run/stop. |
|
Computer Interface |
2 x USB-C side expansion ports for camera accessories. Software updates using side USB‑C closer to rear. |
|
Ethernet |
1 x 100Gb/s QSFP28 connector for sending and receiving 2110 IP video or SMB file sharing, Web Media Management, Blackmagic Cloud uploads, camera control and streaming. |
|
Power |
1 x 8-pin Lemo compatible +24V DC power input. |
