Yarden 8-T Ceiling Tile Stereo Speaker

The Yarden 8-T is a high-performance ceiling tile stereo speaker featuring a Kevlar woofer and four pivoting titanium tweeters for wide, nearly 180-degree sound dispersion. It offers speech and music modes, stereo and mono operation, and a second-level crossover design for enhanced audio performance. The speaker includes a magnetic grille with security screws for easy installation and a multi-tap transformer with selectable 8Ω, 70V, and 100V settings for versatile audio system integration.

Contact to Seller
  • Type — 2–way Ceiling Tile Speaker
  • UL Listed
  • Woofer — 8” Kevlar(R) cone
  • Tweeters — Four 0.75” titanium domes
  • Impedance — Stereo 8Ω, mono 4Ω

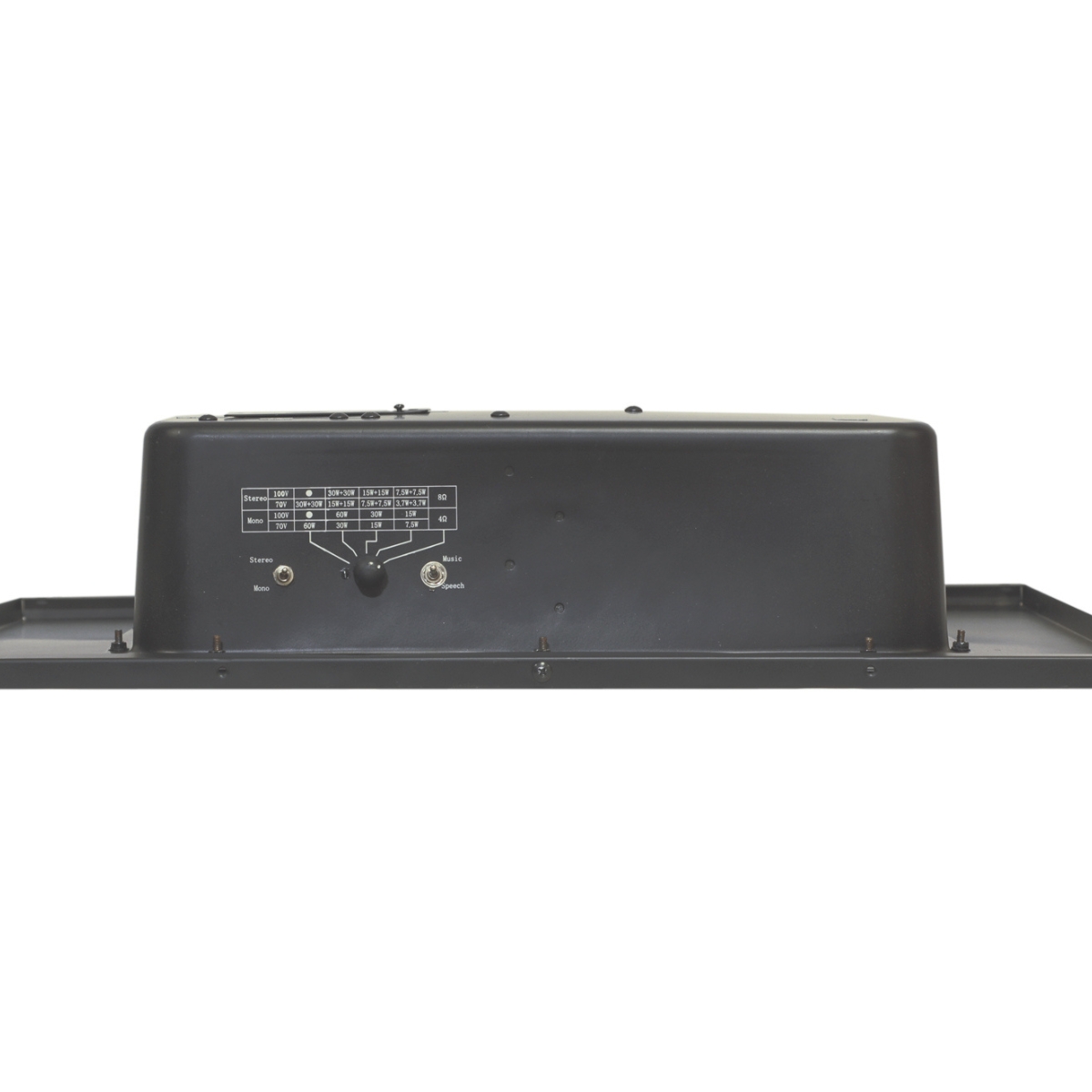

  • Stereo/Mono Selection
  • Speech/Music Selection
  • Power Handling — 2 x 40W RMS, 2 x 110W Continuous
  • Transformer Taps — 70/100V
Download Product catalog
DESCRIPTION Ceiling tile speaker
FREQUENCY RESPONSE 65Hz to 20kHz @−10dB, 80Hz to 20kHz @±3dB
WOOFER 8” (200mm) Kevlar(R) with rubber surround
TWEETER Four 0.75” (20mm) pivoting titanium domes
IMPEDANCE 8Ω stereo, 4Ω mono (transformer tap in off position)
TRANSFORMER TAPS Stereo: 70V – 3.75W/7.5W/15W/30W; 100V – 7.5W/15W/30W, Mono: 70V – 7.5W/15W/30W/60W; 100V – 15W/30W/60W
SENSITIVITY 87dB 1W @1m
MAX SPL Continuous: 102dB, peak: 105dB
POWER HANDLING 40W RMS, 110W continuous program
CROSSOVER FREQUENCY 2.175kHz
DIRECTIVITY FACTOR (Q) 9.43 averaged 1kHz to 10kHz
DIRECTIVITY INDEX (DI) 9.5dB averaged 1kHz to 10kHz
