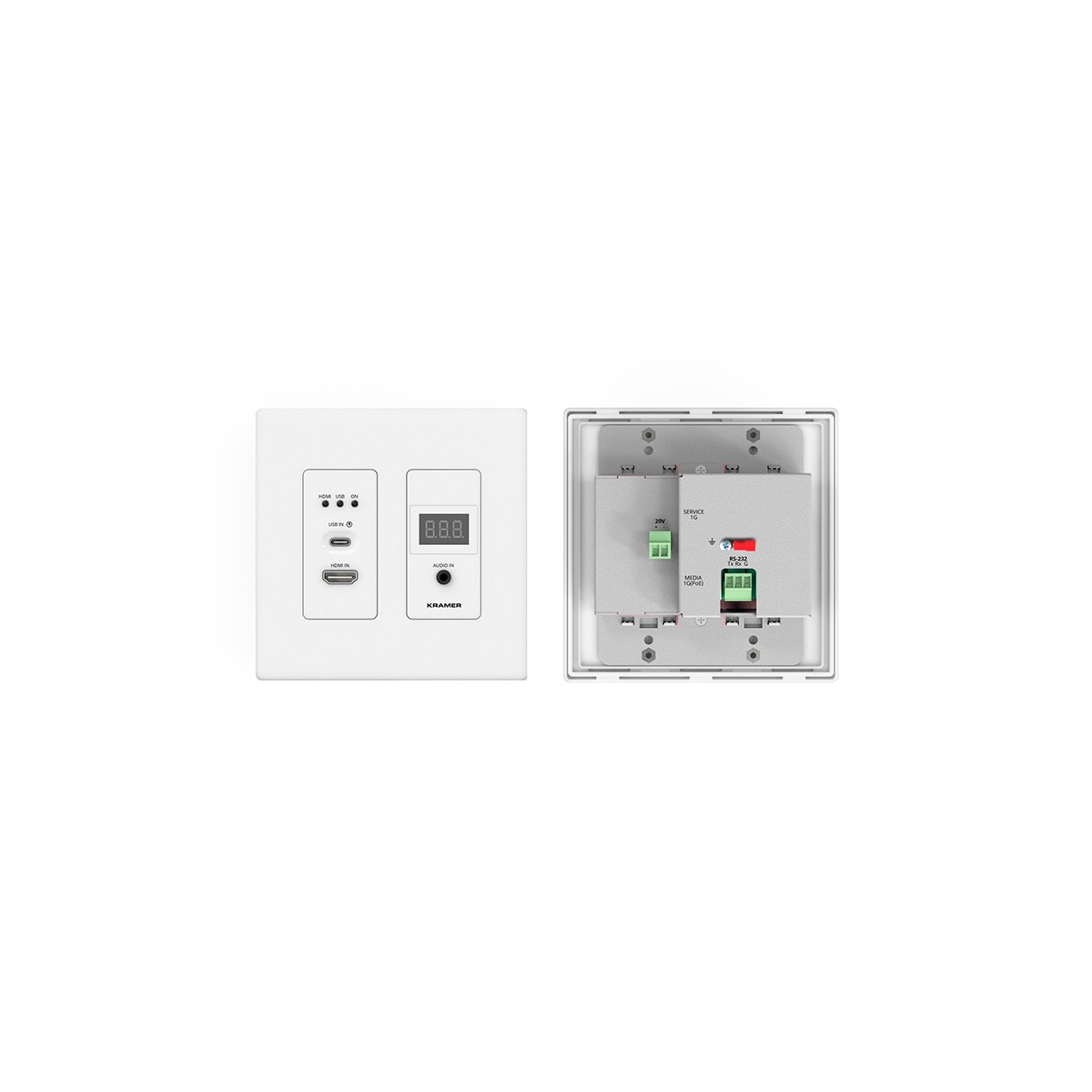

The WP-SW2-EN7 is an advanced wall-plate video encoder designed to stream 4K video signals over an IP network using Ethernet over copper cabling. It provides a compact and convenient solution for reliable AV signal distribution in professional environments.
- Outstanding end–user experience
- Ideal for large–scale deployments
- Robust security
- Simple planning and rollout
- Supports HDCP 2.2
| Inputs |
1 HDMI on a female HDMI connector 1 USB on a USB-C connector 1 Audio on a female 3.5 mm mini-jack |
| Ports |
2 Ethernet On RJ−45 female connectors 1 RS-232 on a 3−pin terminal block connector |
| Network |
Multicast through RTSP (Real Time Streaming Protocol): IGMP snooping, non–blocking, Layer 2 Unicast Through RTSP (Real Time Streaming Protocol Bitrate Peak: 850Mbps, 4K average: 350Mbps, 1080p average: 250Mbps |
| Video |
Compression Standard: JPEG-based, private stream Max Resolution: 4K@30Hz 4:4:4 |
| Video Streaming |
Compression Standard: JPEG2K-based, proprietary stream Max Input Resolution: 4K@60hz (4:2:0) Max Output Resolution: 4K@30hz (4:4:4) Max End-to-End Resolution: 4K@30hz (4:4:4) |
| Audio |
Supported Formats: LPCM, Dolby, and DTS LPCM LPCM upto 7.1/24−bit/192kHz Dolby: Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0 |
