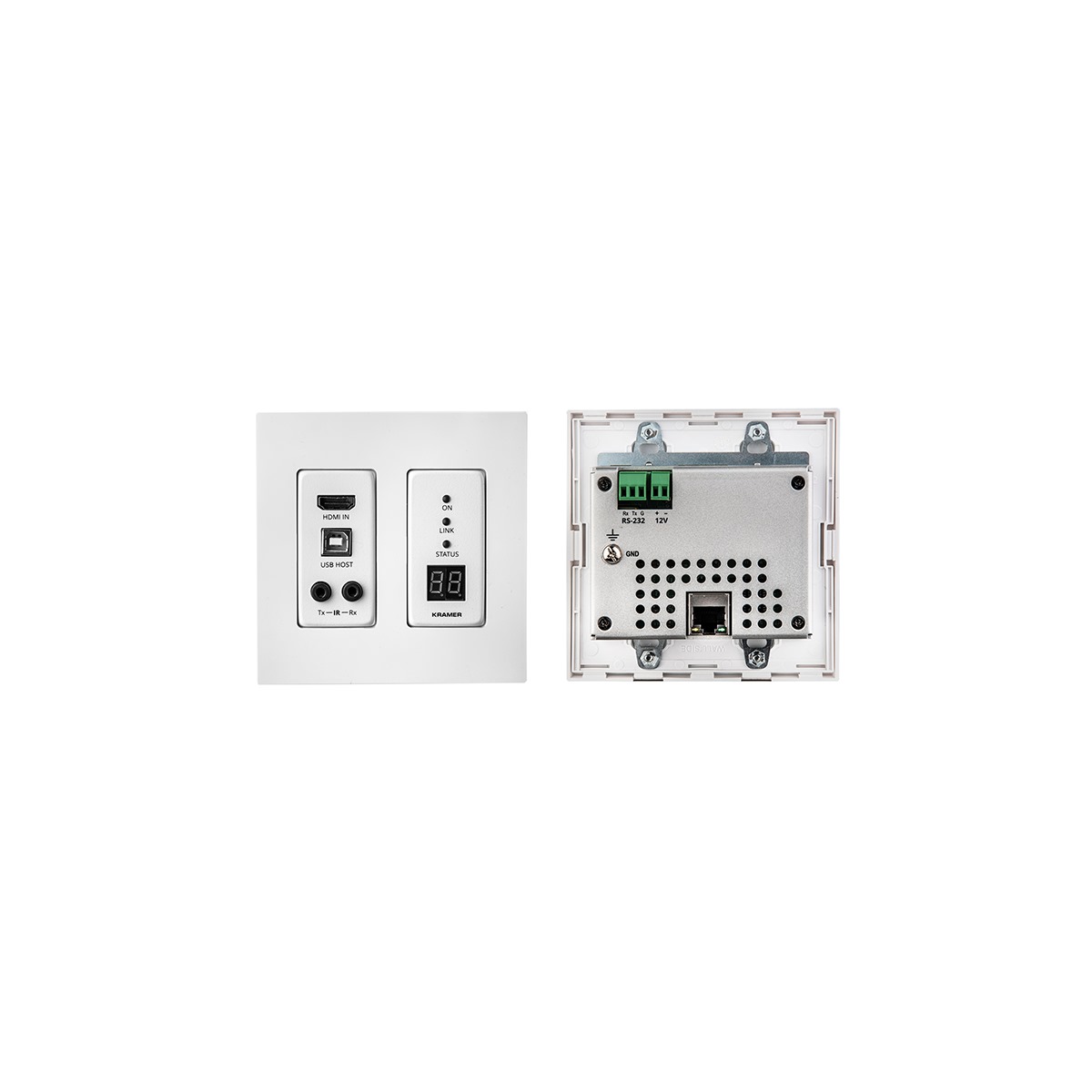

WP-EN6 Gang Wall–Plate Video Encoder

The WP-EN6 is a 2-gang (US) wall-plate video encoder that streams 4K@60Hz (4:2:0) HDMI video with HDCP 2.2, IR, RS-232, and USB signals over an IP network. It supports both unicast and multicast configurations, making it suitable for flexible AV signal distribution across multiple displays and devices.

Contact to Seller
  • RS–232, IR, and USB extension
  • 16x16 video wall
  • Reliable KVM over IP
  • Control via embedded web pages and an open API
  • Streaming over standard 1G network
Download Product catalog
Inputs 1 HDMI: On an HDMI connector
Ports

1 RS–232: On a 3−pin terminal block connector

1 USB: On a USB Type-B connector

1 IR (Tx): On 3.5mm mini jack

1 IR (Rx): On 3.5mm mini jack

1 Ethernet (LAN/PoE): On an RJ–45 connector
General

Network: 10M/100M/1000M

Network Switch Requirements: 1G multicast, IGMP snooping, non–blocking, Layer 2

Streaming: Unicast and multicast through RTSP (Real-Time Streaming Protocol)
Video

Compression standard: JPEG 2000

Content Protection: HDCP 2.2
Audio Channels (HDMI embedded Audio): PCM 2, 5.1, 7.1 Channel, Dolby Digital 5.1 Channel, Dolby Digital Plus, Dolby Digital TrueHD, DTS 5.1 Channel, DTS–ES, DTS–HD High Resolution, DTS–HD Master Audio
User Interface

Controls: Reset button, channel display

Indicators: Device ID, link, and power LEDs
Power

Source: PoE

Consumption: 400mA max
