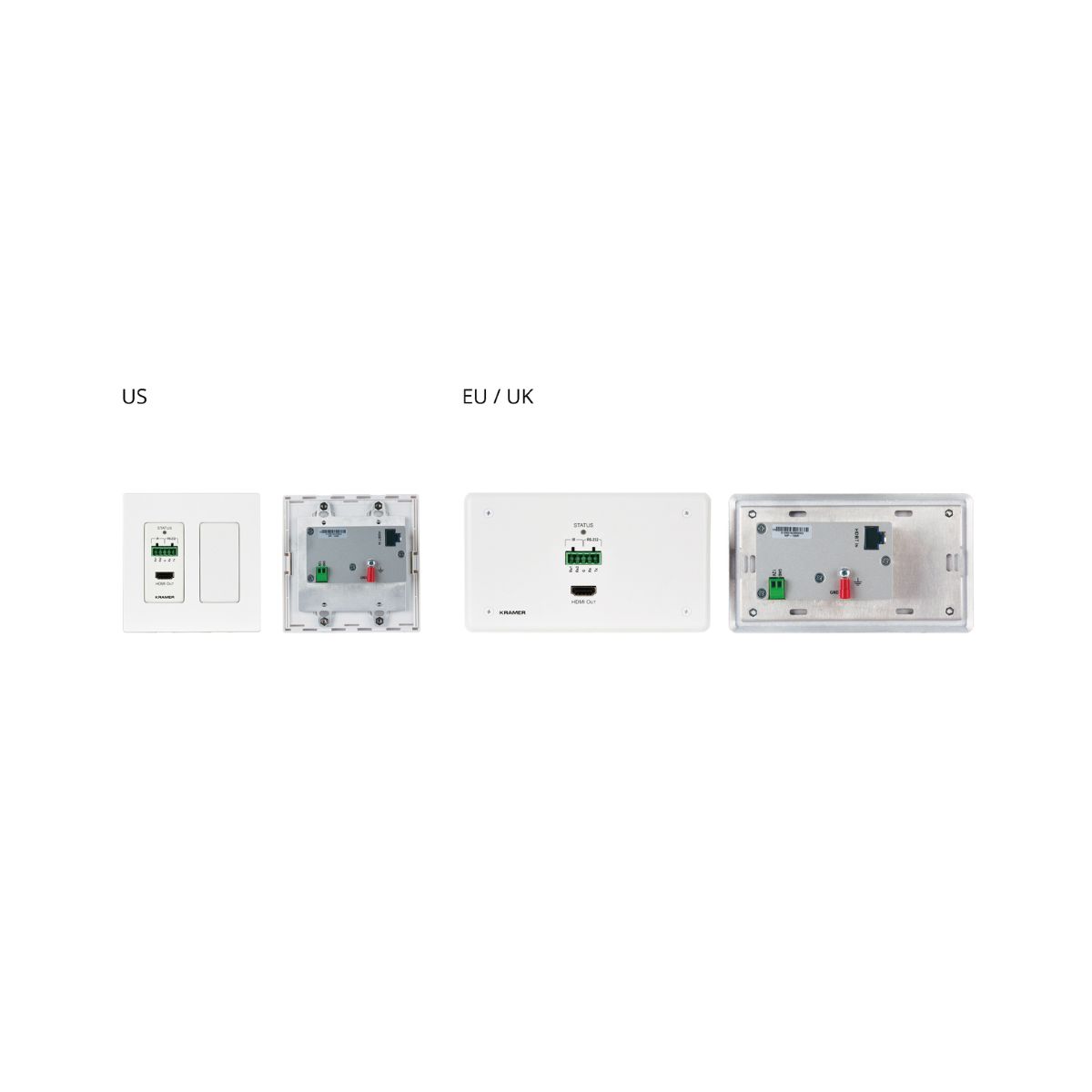

WP-789R

WP−789R is a high−performance, long−reach HDBaseT wall−plate receiver for 4K@60Hz (4:2:0) HDMI and HDCP 2.2 signals over twisted pair. It converts the transmitted HDBaseT signal into an HDMI signal. It extends video signals up to 40m (130ft) over Kramer copper cables at 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions. This wall plate is powered through PoE (Power over Ethernet) over the twisted pair cable.

Contact to Seller
  • HDBaseT 1.0 receiver
  • Powered by PoE (Power over Ethernet/HDBaseT)
  • Up to 70m (230ft) at 1080p
  • Up to 40m (130ft) at 4K@60Hz (4:2:0)
  • Control extension

Inputs
  • HDBT: On a female RJ–45 connector

Outputs
  • HDMI: On a female HDMI connector
  • IR: On 2–pin terminal block connectors (Tx–1 or Tx–2 and G) for signal extension over HDBT line

Ports
  • RS-232: On 3–pin terminal block connectors (G, Rx, Tx) for signal extension over HDBT line
  • RS-232: On 3–pin terminal block connectors (G, Rx, PROG) for upgrading the FW

Video
  • Max Bandwidth: 10.2Gbps
  • Max Resolution: 4K@60Hz (4:2:0)
  • Compliance: Supports HDCP 2.2, deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0

Extension Line
  • Up to 40m (130ft): At 4k@60Hz (4:2:0)
  • Up to 70m (230ft): At full HD (1080p@60Hz)

Extended RS-232
  • Baud Rate: 300 to 115200 baud
