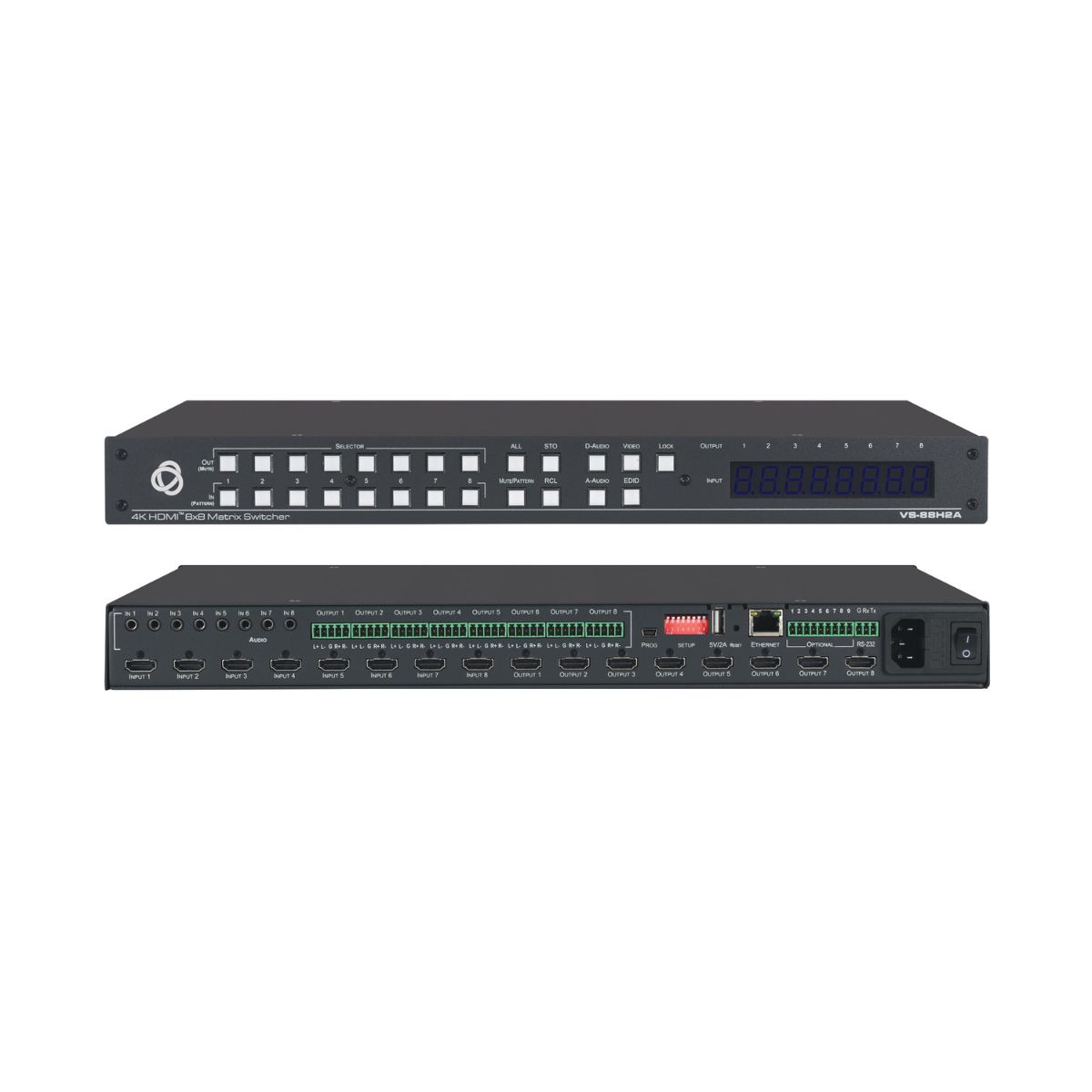

VS-88H2A

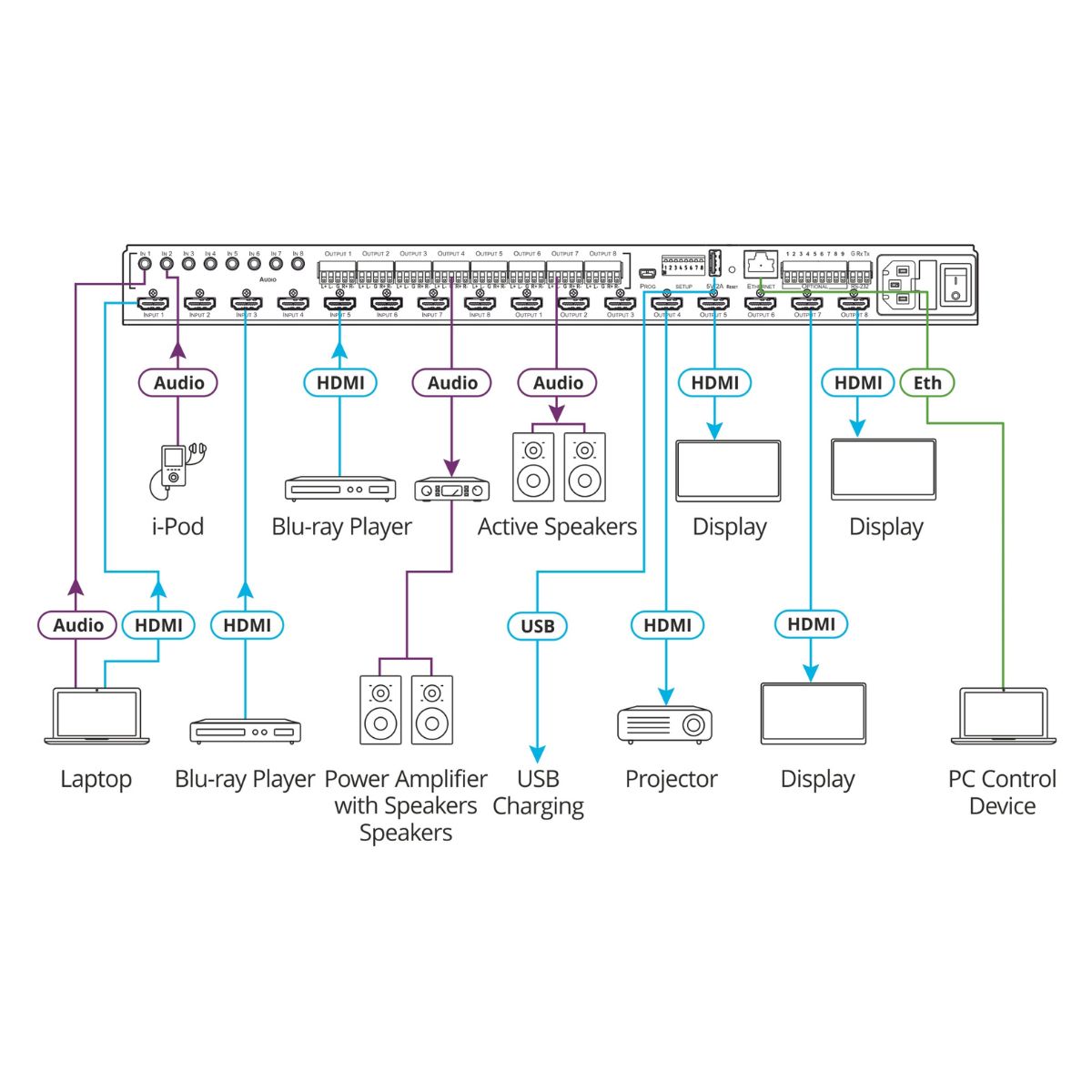

VS−88H2A is a high−quality matrix with eight HDMI inputs independently routable to eight HDMI outputs. Integrated audio matrix, with matrix eight audio input and eight audio output ports, enables independent and flexible audio and ARC extraction, insertion, and routing between any HDMI and audio ports.

Contact to Seller
  • 4K60 (4:4:4) resolution
  • Audio breakaway and ARC
  • Flexible switching & routing
  • Remote control & management
Download Product catalog

Inputs
  • 8 HDMI: On female HDMI connectors
  • 8 Stereo Analog Unbalanced Audio: On 3.5mm mini jacks

Outputs
  • 8 HDMI: On female HDMI connectors
  • 8 Stereo Balanced Audio: On 5–pin terminal blocks (+4dBu nominal)

Ports
  • 1 USB: On a mini–USB connector for device firmware upgrade or management
  • 1 RS−232: On a 3–pin terminal block connector
  • 1 Ethernet: On an RJ–45 female connector for device control and management
  • 1 5V/2A USB: On a female USB–A connector for powering another device

Video
  • Max. Output Resolution: 4K@60Hz (4:4:4)
  • Max Data Rate: 18Gbps bandwidth (6Gbps per graphic channel)
  • Content Protection: HDCP 2.2
  • Max Switching Time: Standard Mode: 3sec
  • Max Switching Time: Safe Mode: 4sec

Audio
  • Matrix Size: 24x24
  • Routable Signals: Input/output ports, breakaway forward/ARC signals

Control
  • Front Panel: Buttons for device operation (for example, input/output selection)
  • Indicators: 7-segment display
