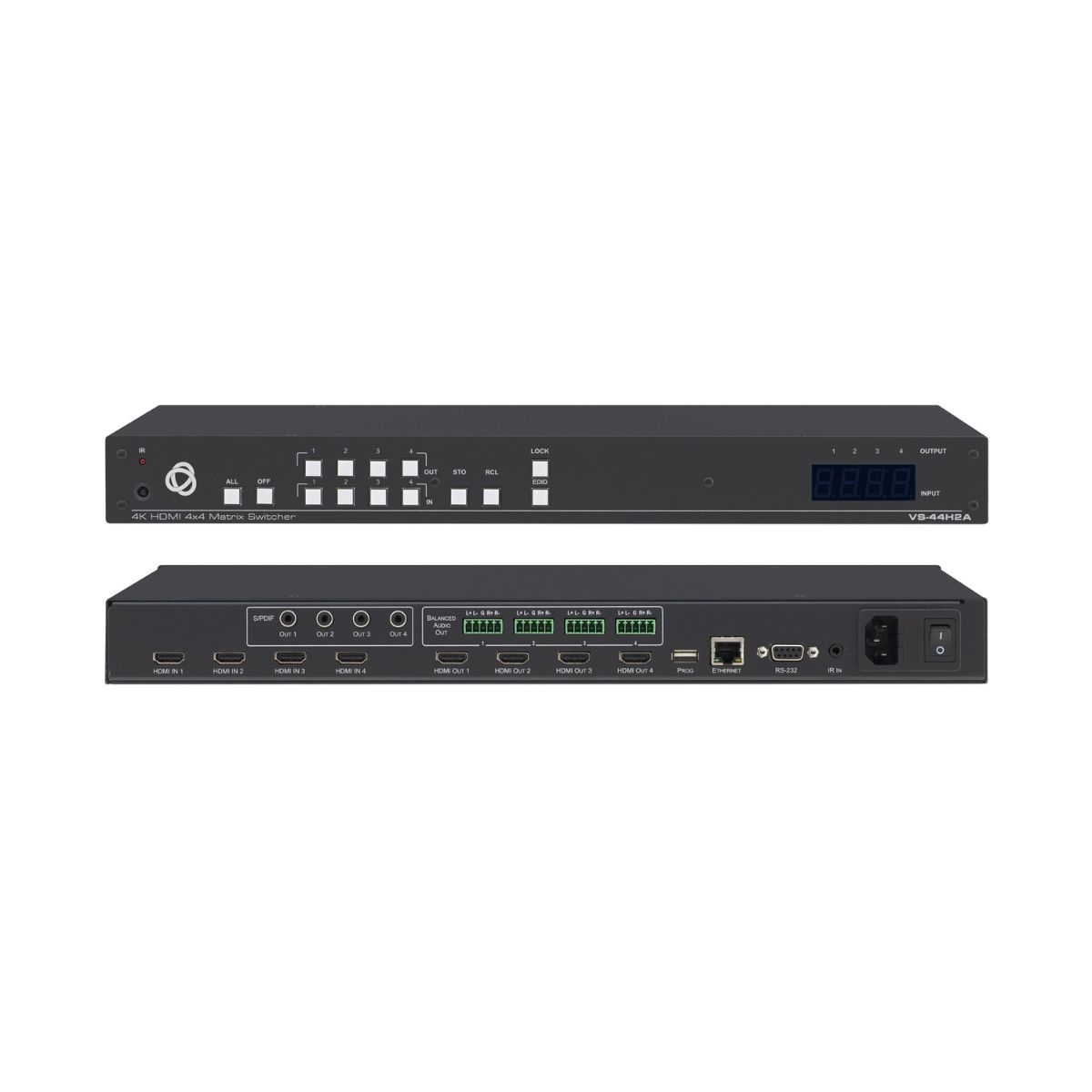

VS-44H2A

VS−44H2A is a high−performance 4x4 matrix switcher for 18G 4K@60Hz (4:4:4) HDR HDMI signals. It reclocks and equalizes the signals and can route any one of four HDMI, HDCP−compliant sources (selectable) to any or all outputs simultaneously.

Contact to Seller
  • Resolutions up to 4K60 (4:4:4)
  • Analog and Digital Audio De–embedding
  • Step–In over HDMI
Download Product catalog

Inputs
  • 4 HDMI: On female HDMI connectors

Outputs
  • 4 HDMI: On female HDMI connectors
  • 4 S/PDIF: On female RCA connectors
  • 4 Balanced Stereo Audio: On 5–pin terminal block connectors

Ports
  • 1 USB: On a Mini female connector
  • 1 RS-232: On a 9–pin D–sub connector
  • 1 IR IN: On a 3.5mm mini jack
  • 1 Ethernet: On an RJ–45 female connector

Video
  • Max. Resolution: 4K@60Hz 4:4:4
  • Max. Data Rate: 18Gbps (6Gbps per graphic channel)
  • Content Protection: Supports HDCP 2.2/1.4
  • HDMI Support: HDR10, xvYCC color, Dolby TrueHD/DTS–HD Master Audio, 3D Video as specified in HDMI 2.0

User Interface
  • Front Panel: IN and OUT selection buttons
  • Front Panel: OFF, ALL, STO, RCL EDID, LOCK buttons

Power
  • Source: 100–240V AC, 50/60Hz
  • Consumption: 60VA
