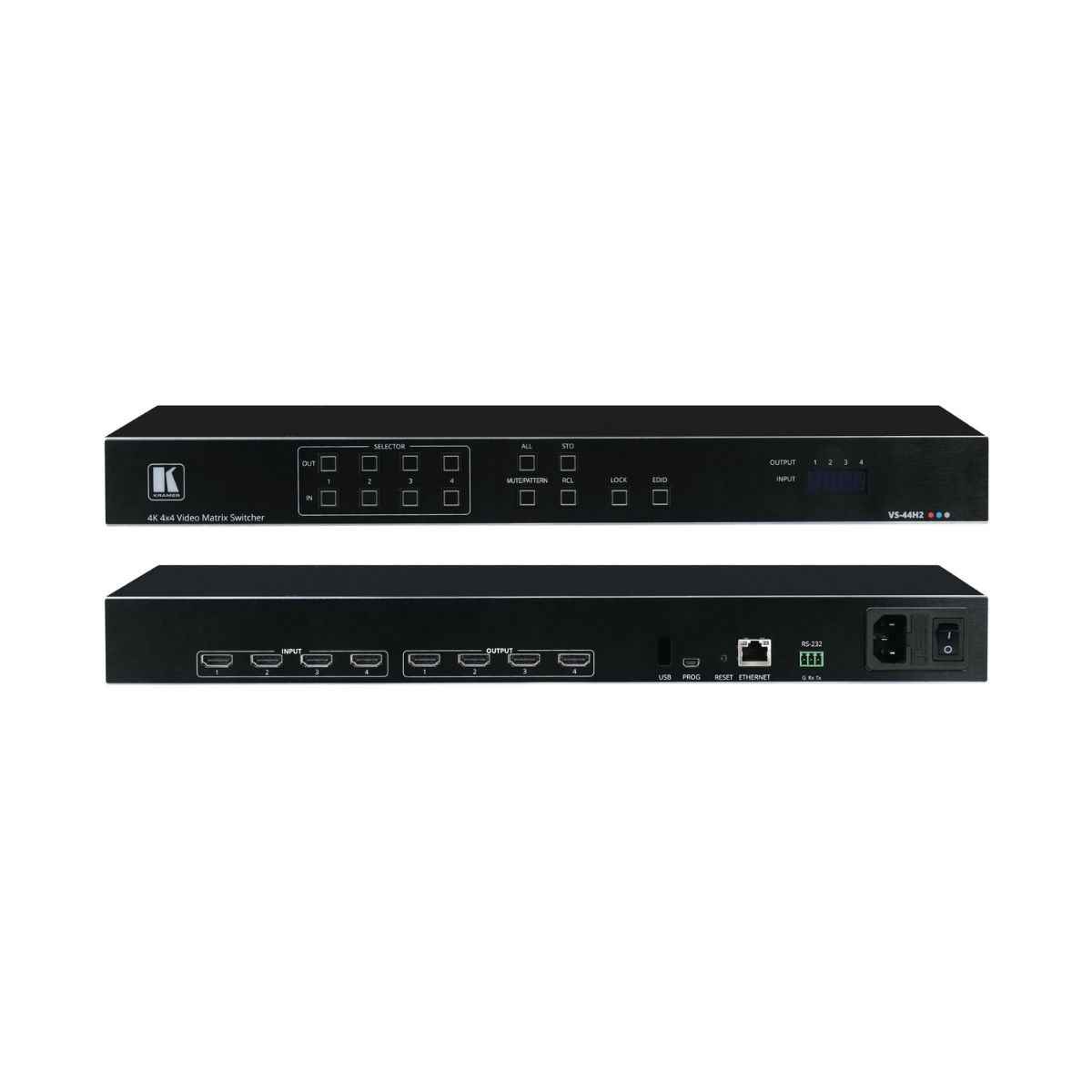

VS-44H2

VS−44H2 is a high−performance 4x4 matrix switcher for 4K@60Hz (4:4:4) HDR signals. It reclocks and equalizes the signals and can route any one of 4 HDMI, HDCP−compliant sources (selectable) to any or all outputs simultaneously.

Contact to Seller
  • Resolutions up to 4K@60Hz (4:4:4)
  • Simple and Powerful Maestro 1.5 Room Automation
  • Active source detection for priority, last–connected automatic and manual switching
  • Selectable HDCP per input
  • Embedded pattern generator
Download Product catalog

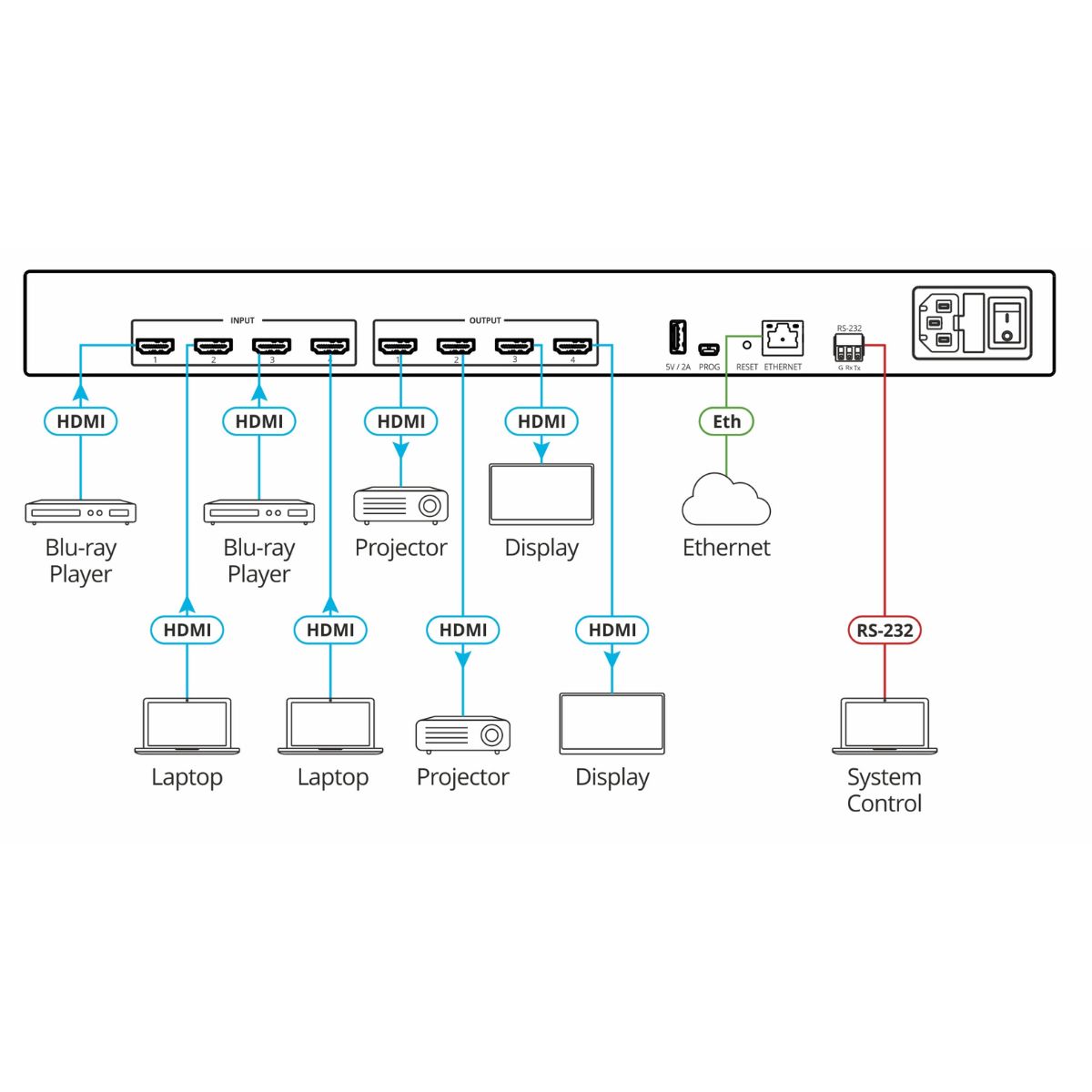

Inputs
  • 4 HDMI: On female HDMI connectors

Outputs
  • 4 HDMI: On female HDMI connectors

Ports
  • 1 USB: On a Mini–USB connector for device control
  • 1 RS–232: On a 3–pin terminal block connector for device control
  • 1 Ethernet: On an RJ–45 connector
  • 1 USB: On a USB–type A connector for powering an external device

Video
  • Max. Resolutions: 4K@60Hz (4:4:4)
  • Max Data Rate: 18Gbps bandwidth (6Gbps per graphic channel)
  • HDMI Support: Deep Color, 3D, up to 7.1 uncompressed audio channels as specified in HDMI 2.0
  • Content Protection: HDCP 1.4 and 2.2

User Interface
  • Indicators: Input/output LCD display
  • Control: Input/output selection, mute, test pattern, memory, front panel lock, buttons. RS–232 and USB connections for sending serial commands via PC, touch screen system, or other serial controller. Embedded web pages via LAN for configuration and control

Power
  • Source: 100–240V AC, 50–60Hz
  • Consumption: 54VA
