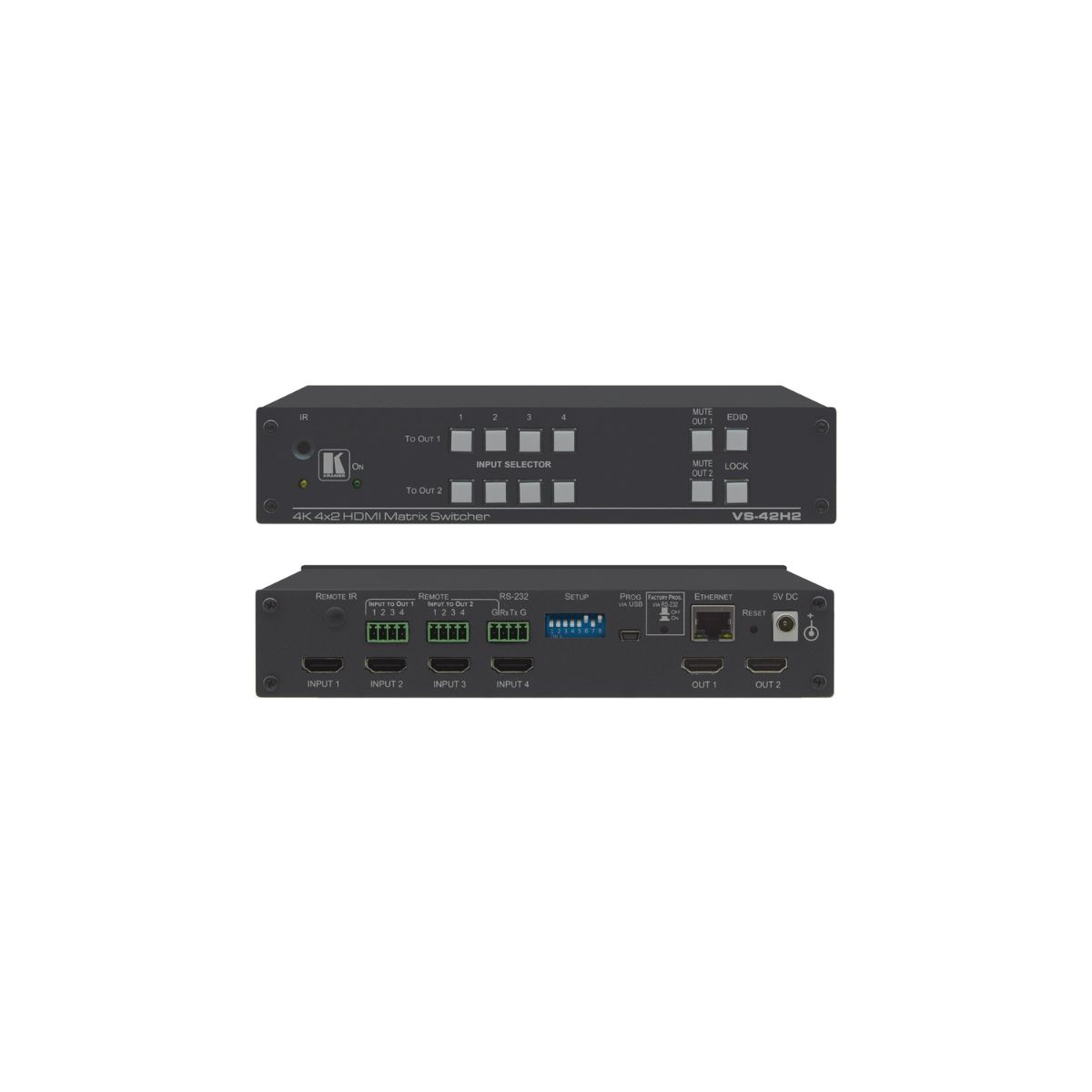

VS-42H2

VS−42H2 is a high−performance 4x2 matrix switcher for 4K HDR HDMI signals. It reclocks and equalizes the signals and can route any one of four HDMI, HDCP−compliant sources (selectable) to any or all outputs simultaneously.

Contact to Seller
  • Resolutions up to 4K60 (4:4:4)
  • HDCP 2.2/1.4 compliant
  • Automatic switching (last connected/priority)
  • Front panel button switching
  • Mute buttons for each output
  • Control through Ethernet, IR, RS–232
Download Product catalog

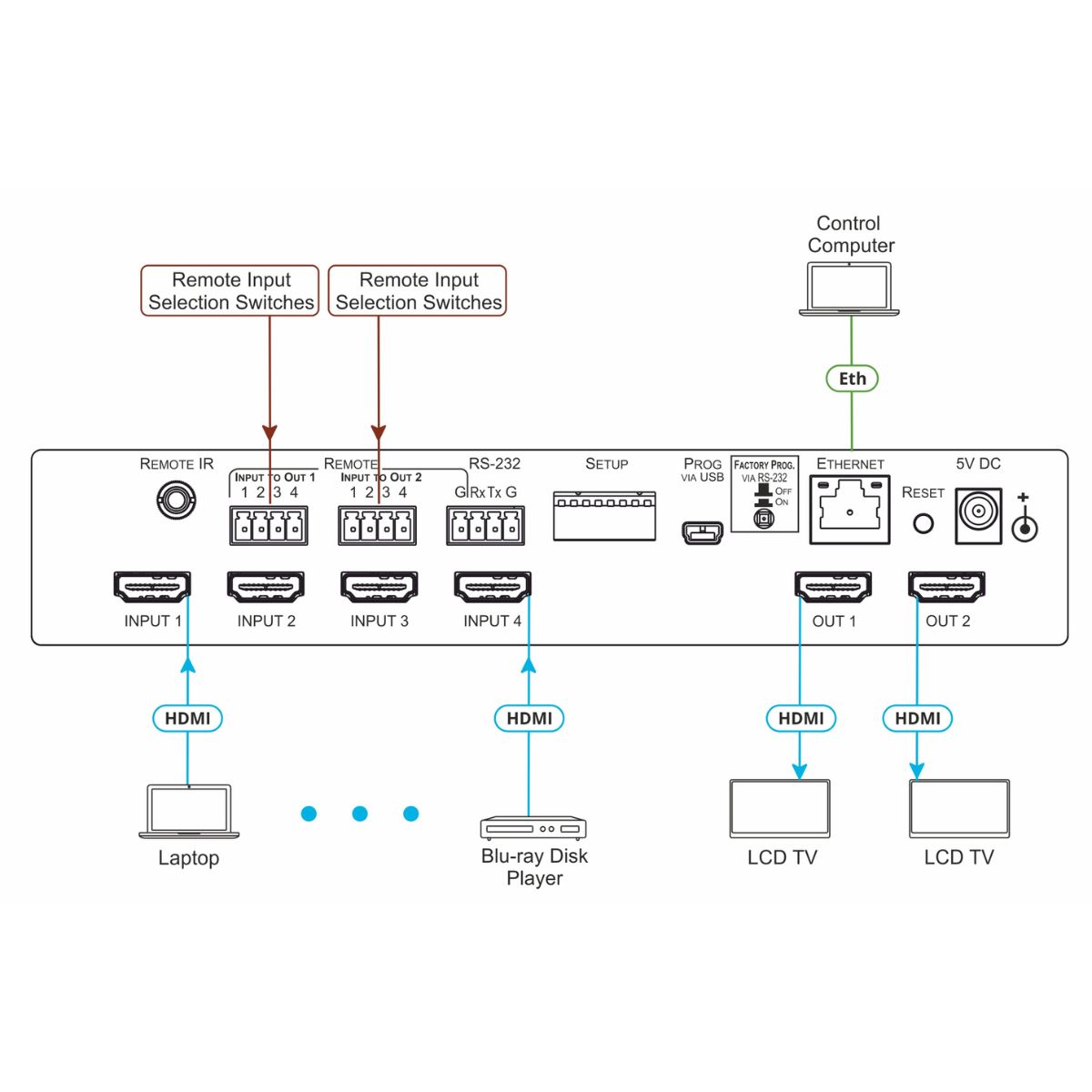

Inputs
  • 4 HDMI: On female HDMI connectors

Outputs
  • 2 HDMI: On female HDMI connectors

Ports
  • 1 Ethernet: On an RJ–45 female connector
  • 1 RS-232: On a 3–pin terminal blocks
  • 1 USB: On a mini USB connector
  • 8 Remote Selection Contact-Closure Switches: On 9 terminal block pins

Video
  • Max. Resolution: 4K@60Hz 4:4:4
  • Max. Data Rate: 18Gbps (6Gbps per graphic channel)
  • Compliance: HDCP 2.2/1.4

User Interface
  • Control: Input selector, output mute, EDID capture, and panel lock buttons. DIP switch HDCP configuration
  • Indicators: Switching, IR, and power LEDs

Power
  • Source: 5V DC
  • Consumption: 2.5A
