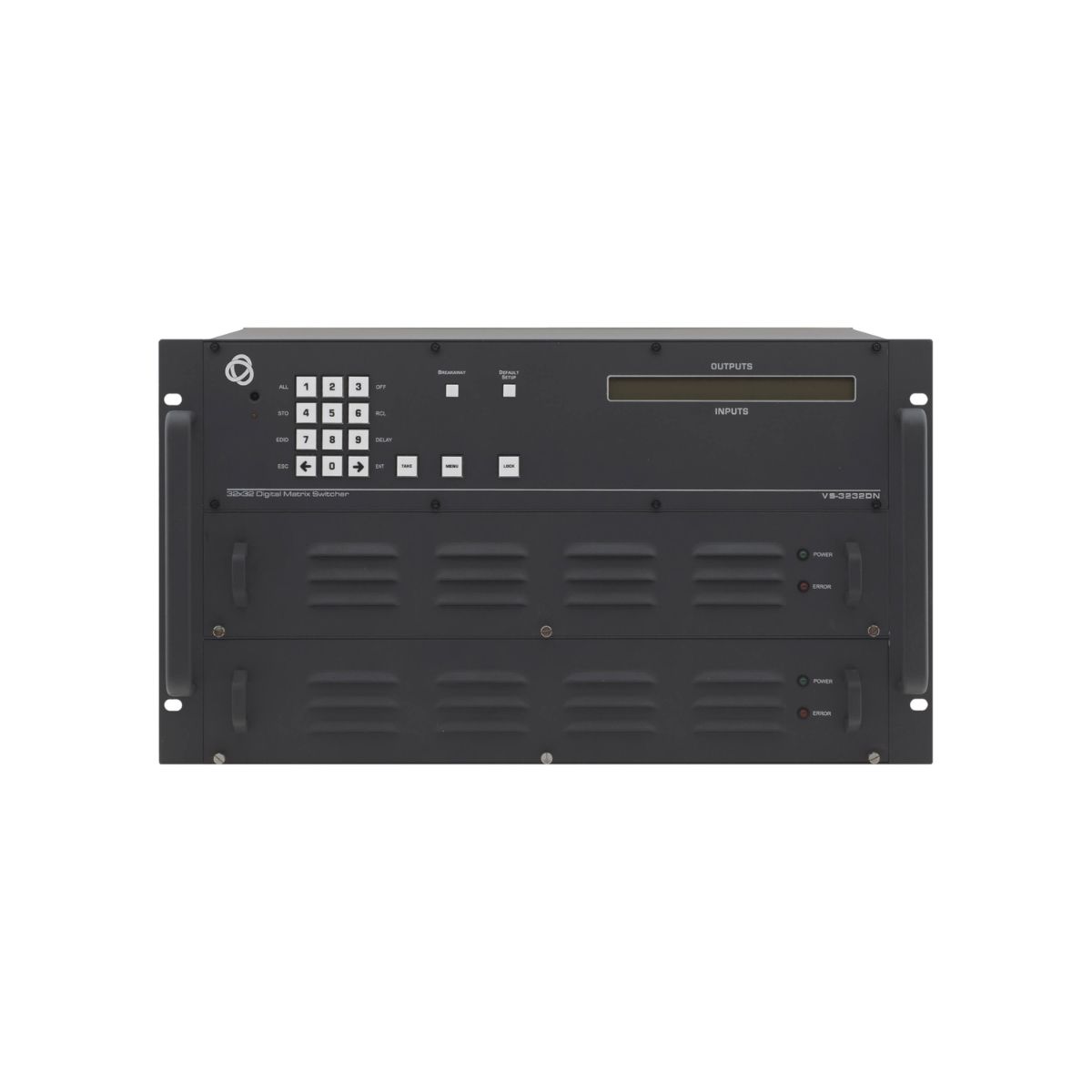

VS-3232DN-EM

VS−3232DN−EM is a high−performance 4x4 to 32x32 4K@60Hz (4:2:0) modular matrix switcher chassis for AV signals. The unit is a multi−format digital switcher, populated from 4x4 to 32x32 in increments of four inputs and/or four outputs. The chassis includes optional dual, redundant power supplies, a control module, and a test module that can monitor and test any input and output in the matrix. VS−3232DN−EM supports a wide variety of input and output cards for different AV signals.

Contact to Seller
  • Max. Data Rate — 10.2Gbps (3.4Gbps per graphics channel)
  • Mix Input/Output Modules
  • Local DVI Monitor Output
  • Optional Redundant Power Supply
  • Control — RS–232, Ethernet, IR & USB
Download Product catalog

INPUTS
  • 4 to 32 (in increments of 4) of various inputs
  • See ACCESSORIES & RELATED PRODUCTS

OUTPUTS
  • 4 to 32 (in increments of 4) of various outputs
  • See ACCESSORIES & RELATED PRODUCTS

MAX RESOLUTION
  • 4K@60Hz (4:2:0)

CONTROLS
  • Front panel buttons, infrared remote control transmitter (38kHz–modulated), RS–232, Ethernet, mini USB port, in/out audio testing jacks, and reset button (for future use)

SWITCHING
  • Confirm or At Once for immediate switching

POWER CONSUMPTION
  • 100–240V AC, 50/60Hz, 320VA with optional Hot–Swappable redundant power supply
