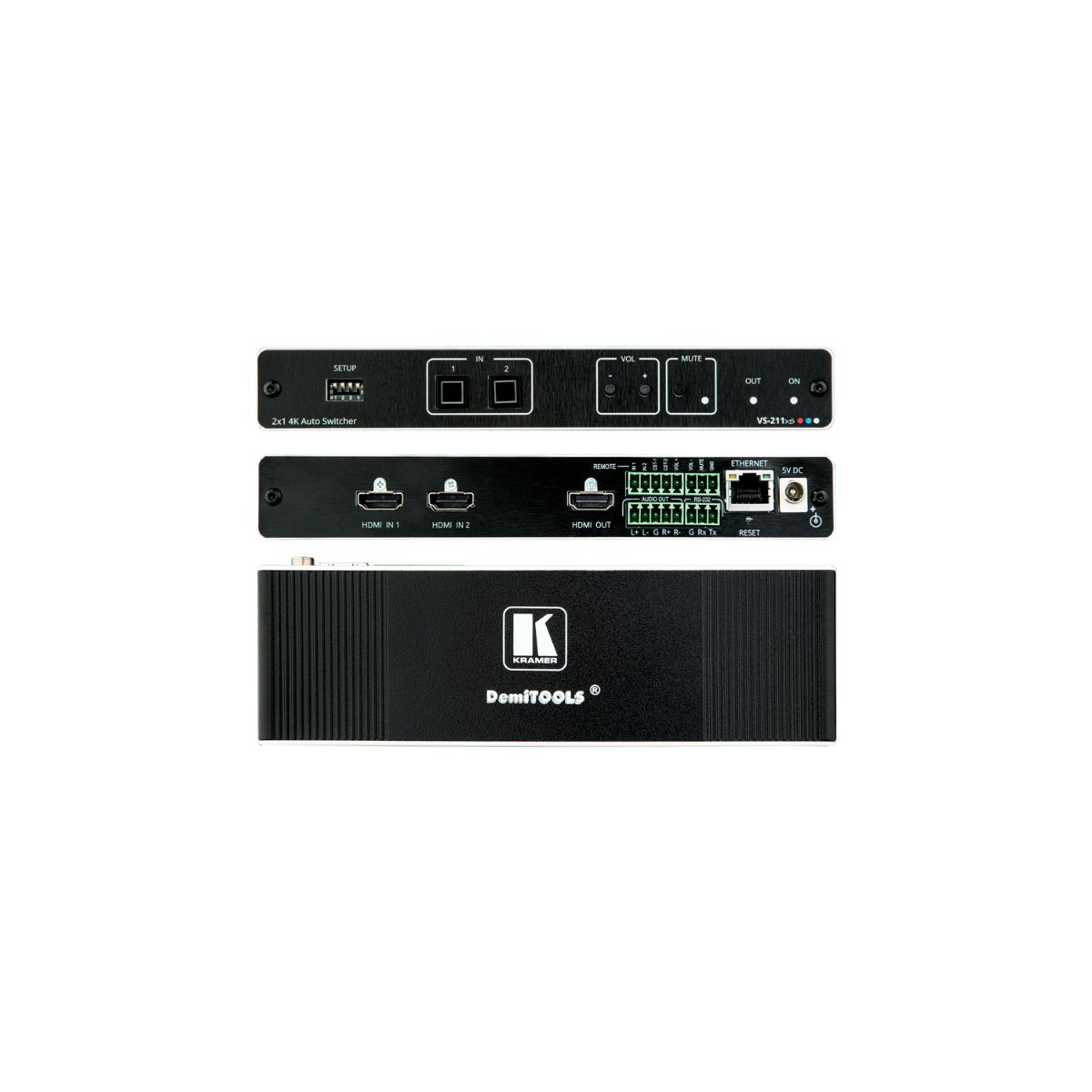

VS-211XS

VS−211XS is an intelligent 2x1 automatic switcher for 4K HDR, HDMI video signals. VS−211XS offers an intelligent switching experience with built−in Maestro room control and the standard priority / last−connected switching function based on active video signal detection.

Contact to Seller
  • 2x1 Plug & Play Switcher
  • Powerful Built–in Maestro Room Control
  • Intelligent IP–driven Control Gateway
  • Up to 4K@60Hz (4:4:4) Resolution
  • Audio De–embedding
Download Product catalog

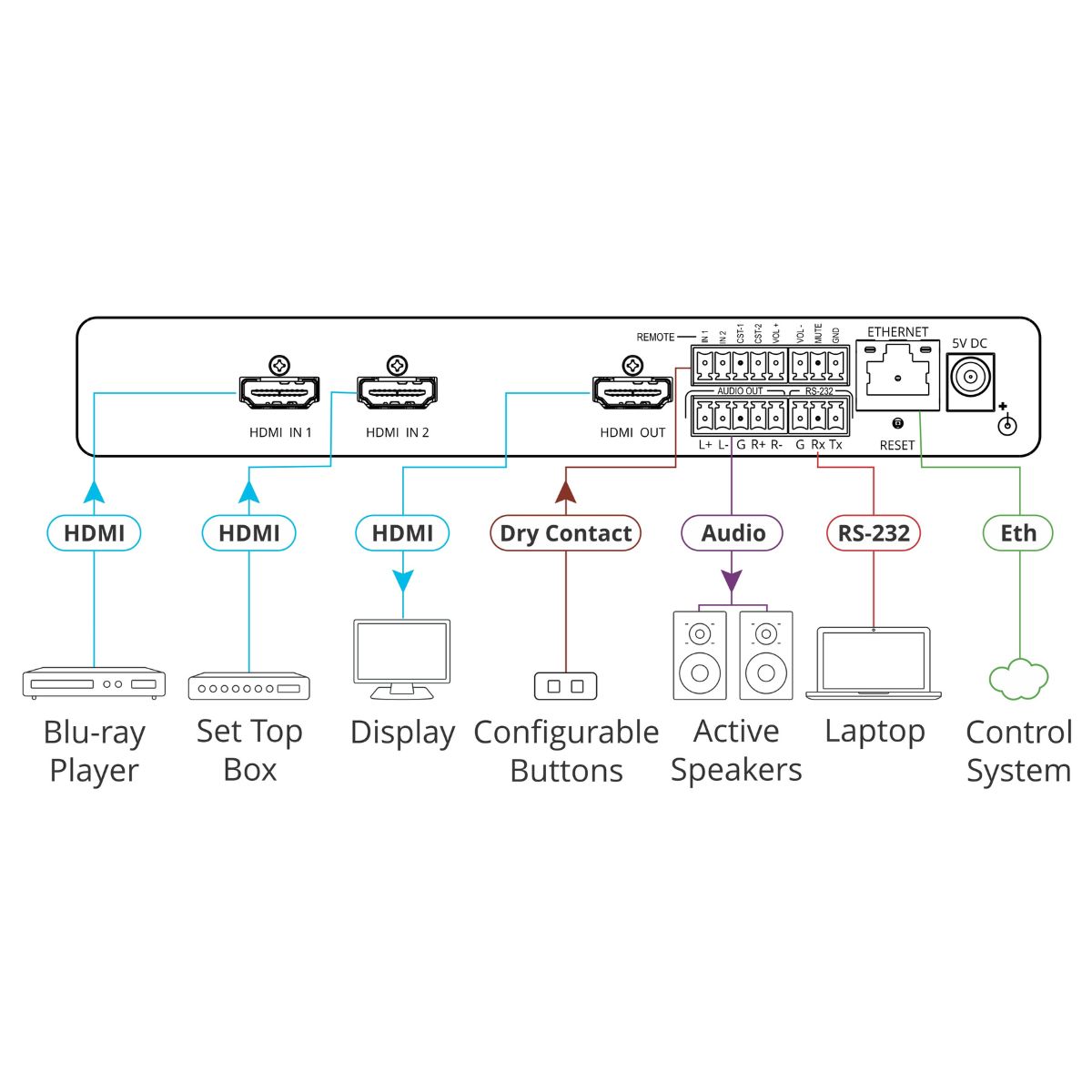

Inputs
  • 2 HDMI: On a female HDMI connector

Outputs
  • 1 HDMI: On a female HDMI connector
  • 1 Balanced Stereo Audio: On 5–pin terminal block connector

Ports
  • RS-232: On a 3–pin terminal block connector
  • Remote Contact Closure: On an 8–pin terminal block connector
  • Ethernet: On an RJ–45 connector

Video
  • Max Data Rate: 17.82GBPS (5.94Gbps per graphic channel)
  • Max Resolution: 4K@60 (4:4:4)
  • Compliance: HDR10 as specified in HDMI 2.0, HDCP 2.2

Power
  • Source: 5V DC, 4A
  • Consumption: 810mA

User Interface
  • Controls: Input selection, volume, and mute buttons, DIP switches for configuring switching policy and audio de–embedding source, embedded web pages via IP
