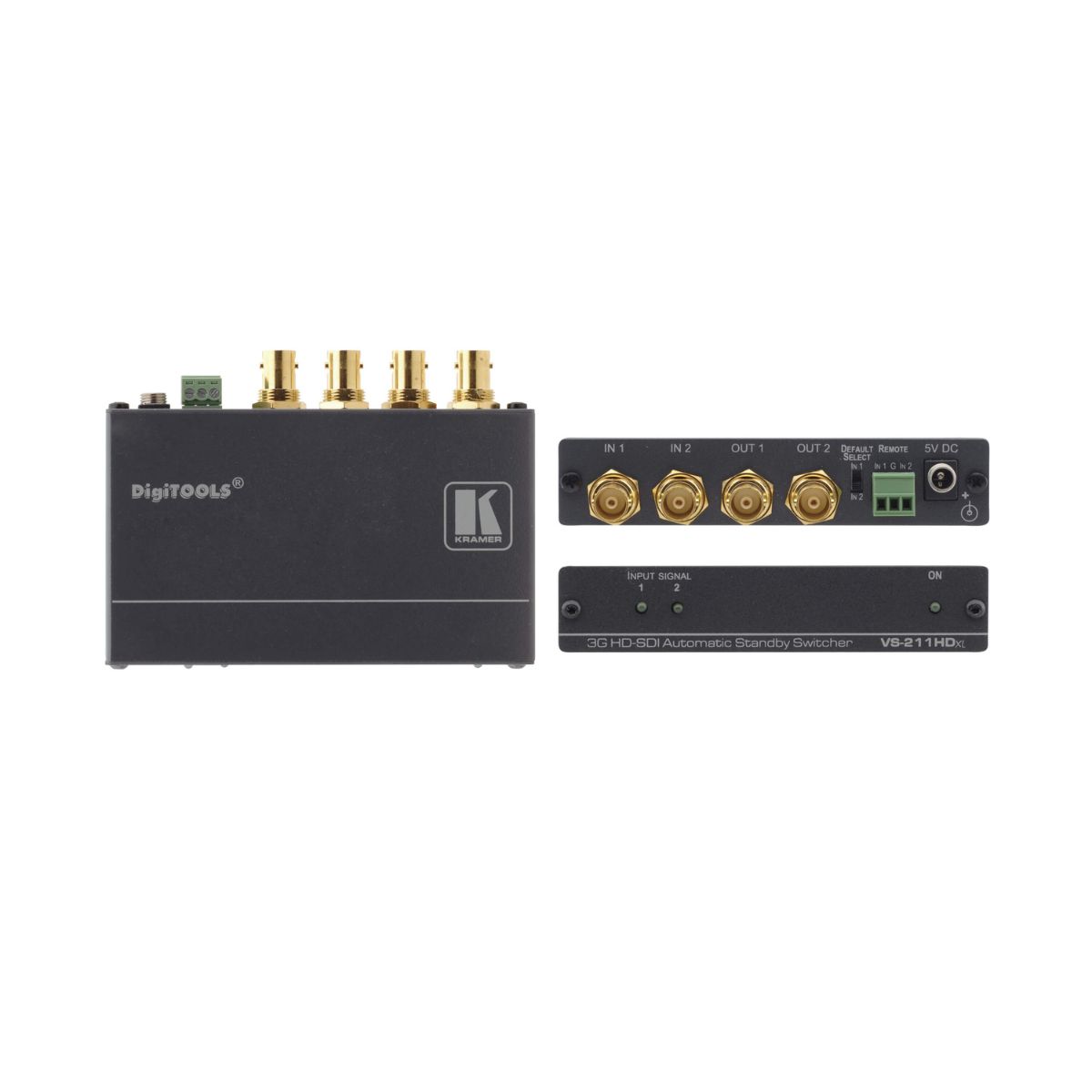

VS-211HDxl

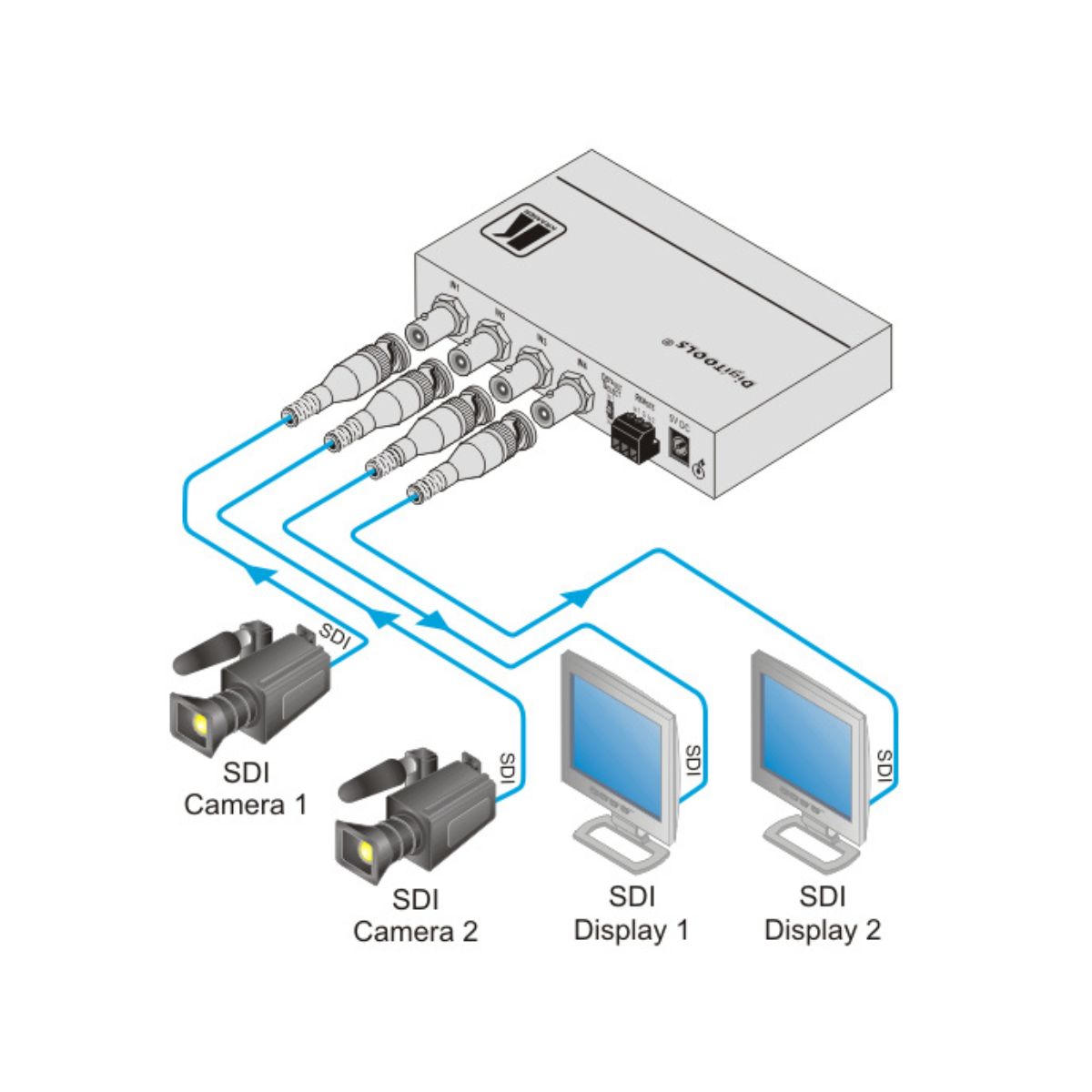

The VS−211HDxl is a high−performance automatic switcher for 3G HD−SDI video signals. When configured as a standby switcher, it switches to the secondary input when the primary input is lost.
- Max. Data Rate — 3Gbps.
- Multi–Standard Operation — SDI (SMPTE 259M and SMPTE 344M), HD–SDI (SMPTE 292M) & 3G HD–SDI (SMPTE 424M).
- HDTV Compatible.
- Control — Contact closure or automatic switching.
- Automatic Standby Switching — Switches from the secondary input to the primary input when a primary signal is detected.
- Primary Input — Selectable.
INPUTS |
|
OUTPUTS |
|
MAX. OUTPUT LEVEL |
|
DATA RATE |
|
CONTROLS |
|
COUPLING |
|
