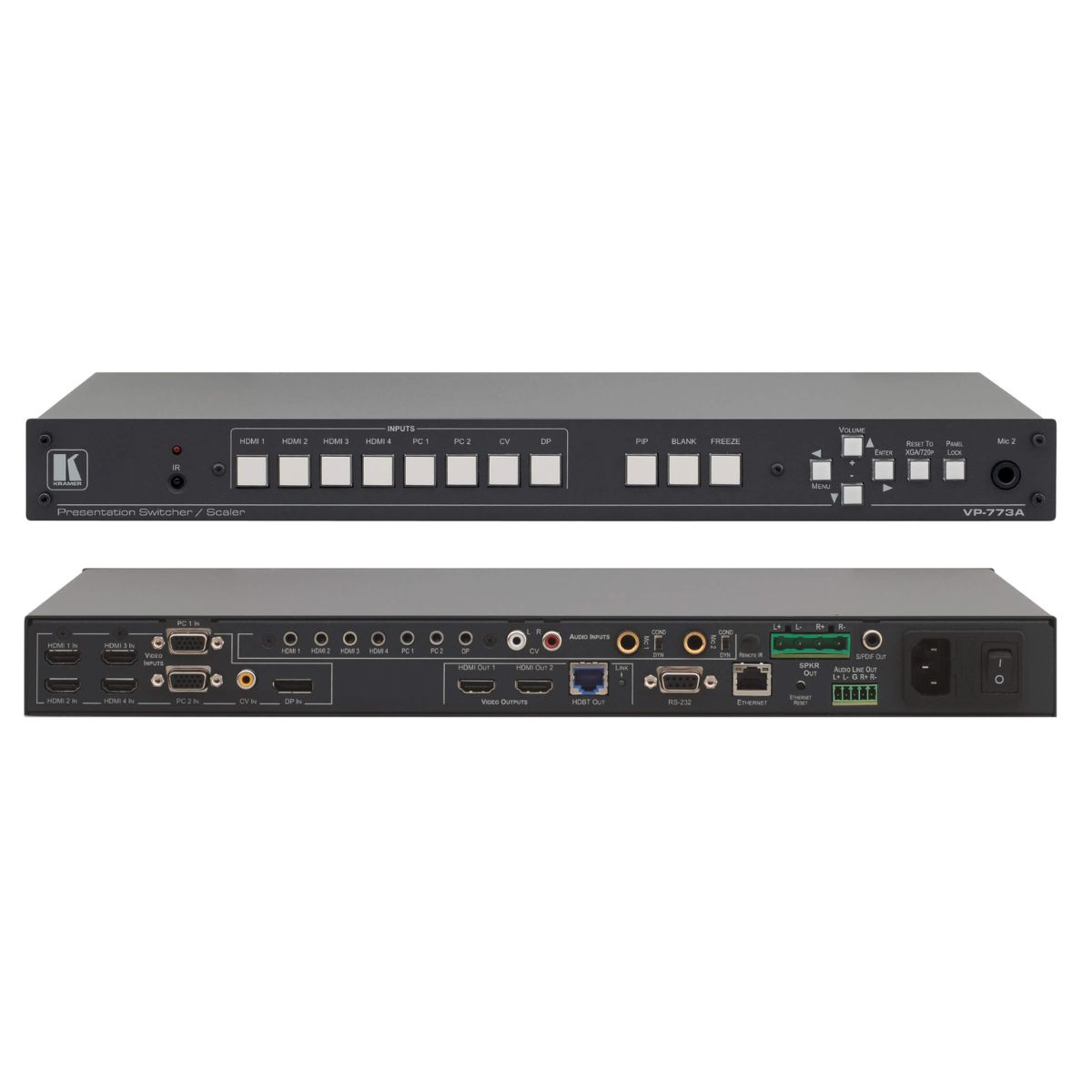

The VP-773A is a high-performance presentation switcher and scaler featuring DisplayPort, composite video, VGA, and HDMI inputs. It scales video, embeds audio, and simultaneously outputs signals through two HDMI and one HDBaseT outputs. It also provides S/PDIF, balanced stereo audio outputs, and a built-in audio amplifier with speaker outputs.
-
8-Input Presentation Switcher: Supports 4 HDMI, 2 VGA, 1 DisplayPort, and 1 Composite Video input.
-
Picture-in-Picture (PIP): Supports PIP, picture-and-picture, and split-screen modes with adjustable window positioning and sizing.
-
High-Quality Video Scaling: Kramer PixPerfect™ technology with advanced de-interlacing, noise reduction, and scaling.
-
Multiple Outputs: Simultaneous output through 2 HDMI and 1 HDBaseT port.
-
2K Resolution Support: Supports resolutions up to 2048 × 1080 and 1080p.
-
HDMI Deep Color: Supported on all HDMI inputs and outputs.
-
Smooth Switching: Fade-Thru-Black technology provides clean, glitch-free transitions.
-
Advanced EDID Management: Configurable EDID management for each input.
-
Audio Integration: Supports embedded and analog audio, S/PDIF digital audio, and balanced stereo audio.
| HDMI Inputs | 4 × HDMI with Deep Color |
| VGA Inputs | 2 × 15-pin HD |
| DisplayPort Input | 1 × DisplayPort 1.1a |
| Composite Video Input | 1 × RCA |
| Audio Inputs | HDMI, VGA, DP, composite audio, and 2 microphone inputs |
| HDMI Outputs | 2 × HDMI with Deep Color |
| HDBaseT Output | 1 × RJ-45 |
| Digital Audio Output | 1 × S/PDIF RCA |
