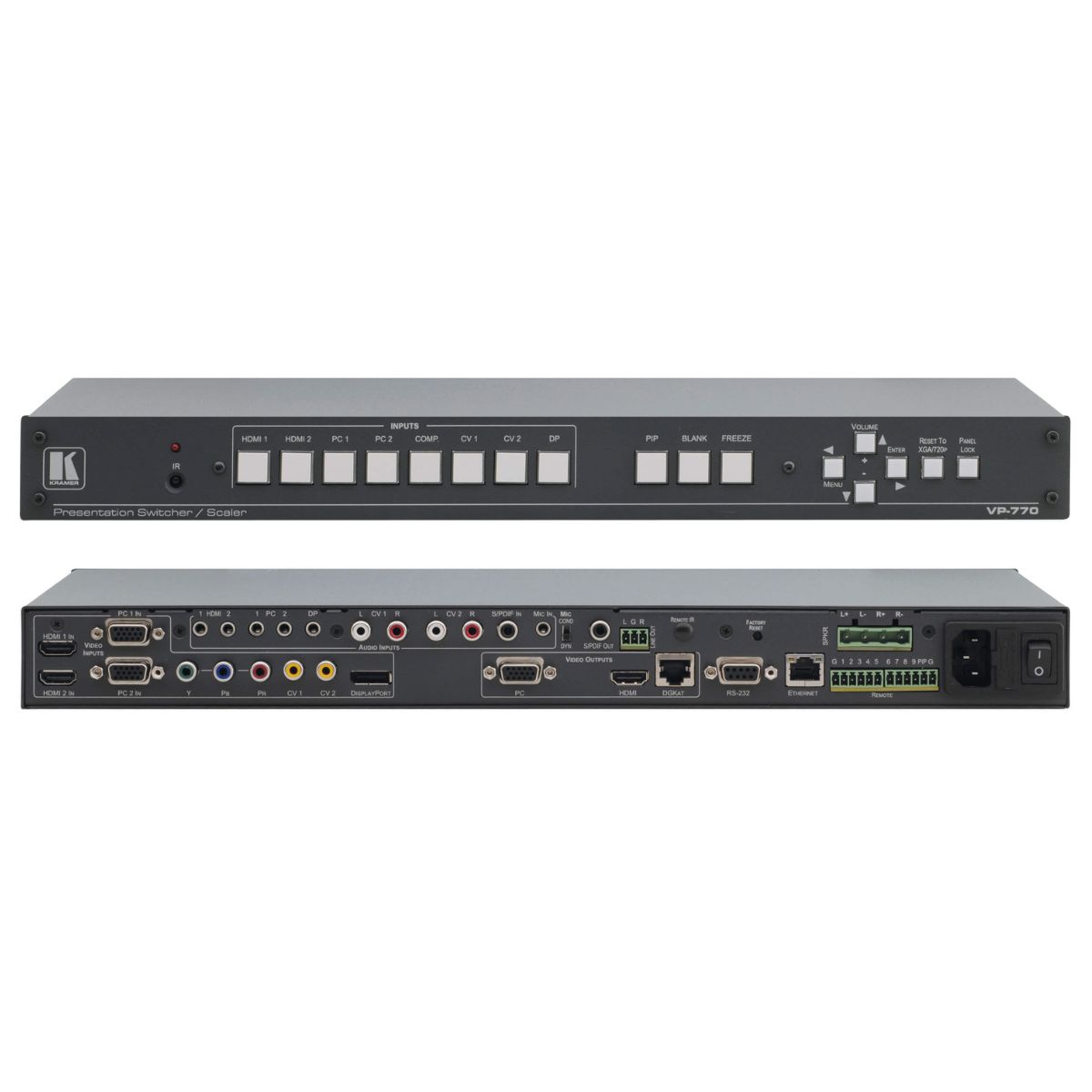

VP-770 Presentation Switcher/Scaler with Speaker Output

The VP-770 is a high-performance presentation switcher and scaler supporting composite, component, DisplayPort, VGA, and HDMI inputs. It scales video, embeds audio, and provides HDMI, VGA, and DGKat twisted-pair outputs, along with digital audio, unbalanced stereo, and a 10W amplified balanced stereo speaker output.

Contact to Seller
  • PixPerfect™ Scaling Technology
  • Fade–Thru–Black Clean Ultra-Fast Switching
  • K–IIT XL™ Picture–in–Picture
  • Luma Keying via PiP Window
  • Eight Video Inputs and three Video Outputs
  • Multiple Output Resolutions — Up to 2K and 1080p
  • 3D Comb Filtering & Powerful Noise Reduction Filters
  • HDMI, HDCP & Deep Color Support
Download Product catalog
INPUTS 2 HDMI (deep color) connectors, 2 VGA on 15−pin HD connectors, 1 component video on 3 RCA connectors, 2 composite video on RCA connectors, 1 DisplayPort connector, 2 HDMI, 2 VGA, 1 DP, 2 CV unbalanced stereo audio on 3.5mm mini jack connectors, 1 S/PDIF (for component video input) digital audio on an RCA connector, 1 mic on a 3.5mm mini jack connector
OUTPUTS 1 VGA on a 15−pin HD connector, 1 HDMI (deep color)connector, 1 DGKat on an RJ−45 connector, 1 S/PDIF digital audio on an RCA connector, 1 unbalanced stereo audio on a 3−pin terminal block connector, 12x10W speaker amplifier balanced stereo audio on terminal block connectors
COMPLIANCE WITH HDMI STANDARD Supports HDMI (deep color) and HDCP, Supports: DisplayPort 1.1a OUTPUT RESOLUTIONS:640x480@60, 640x480@75, 800x600@50, 800x600@60, 800x600@75, 1024x768@50, 1024x768@60, 1024x768@75, 1280x768@50, 1280x768@60, 1280x800@60, 1280x1024@50, 1280x1024@60, 1280x1024@75, 1360x768p60, 1366x768@50, 1366x768@60, 1400x1050@50, 1400x1050@60, 1600x900@60, 1600x1200@50, 1600x1200@60, 1680x1050@60, 1920x1200@60, 480i60, 480p60, 576i50, 576p50, 720p50, 720p59.94, 720p60, 1080p23.976, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2048x1080@60Hz, 2048x1080@50Hz
CONTROLS Front panel buttons, OSD, IR remote control, RS−232 on a 9−pin D−sub connector, Ethernet, contact closure
OPERATING TEMPERATURE 0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE −40° to +70°C (−49° to 158°F)
HUMIDITY 10% to 90%, RHL non-condensing
POWER SOURCE 100−240V AC, 56VA max
