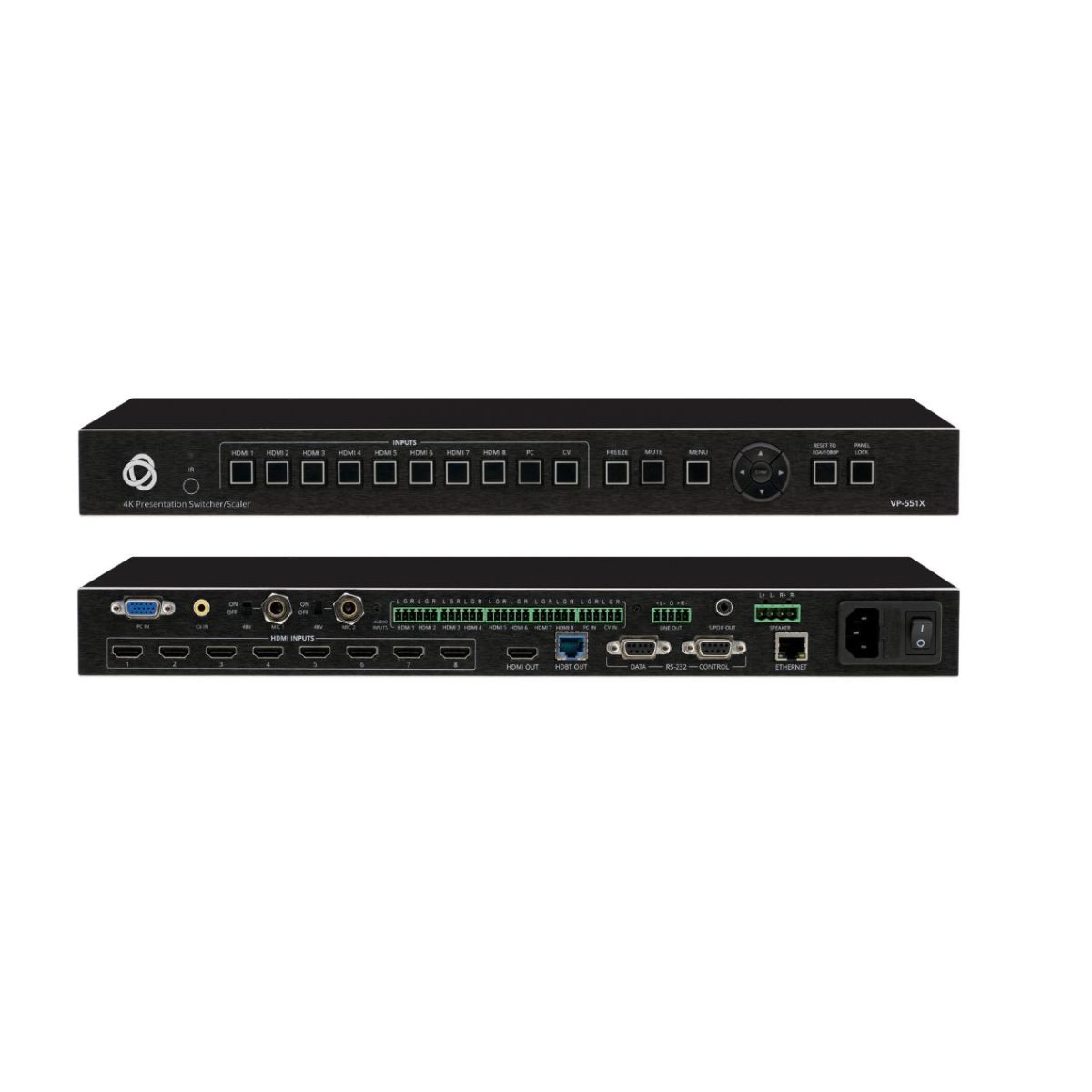

VP-551X 10–Input 18G 4K Presentation Switcher/Scaler

VP-551X is a professional 4K@60Hz presentation scaler/switcher supporting HDMI, VGA, and composite video inputs. It provides flexible audio selection, video scaling, and simultaneous HDMI and HDBaseT output. Processed audio is available through balanced stereo, S/PDIF, and built-in speaker outputs.

Contact to Seller
  • 2 Mic Inputs
  • 48V Phantom Power for Microphone
  • Control — RS–232, Ethernet & IR
  • Speaker Output
  • PoE Provider
Download Product catalog
Inputs 8 HDMI: On female HDMI connectors
  1 Computer Graphics: On a 15−pin HD connector
  1 Computer Graphics: On a 15−pin HD connector
  1 Computer Graphics: On a 15−pin HD connector
  2 Microphones: On 6mm jacks
Outputs 1 HDBaseT: On an RJ–45 connector
  1 HDMI: On a female HDMI connector
  1 Balanced Analog Stereo Audio: On a 5–pin terminal block
  1 Digital Audio: On a female S/PDIF connector
  1 Speaker: On a 4−pin terminal block
Video Max. HDBT Range 130m (430ft) at 1080p@60Hz 36bpp) 100m (330ft) at 4k @60Hz (4:2:0)
Ports 1 RS–232 (Data): On a 3–pin terminal block
  1 RS–232 (Control): On a 3–pin terminal block
  1 Ethernet: 100Mbps, on an RJ–45 connector
