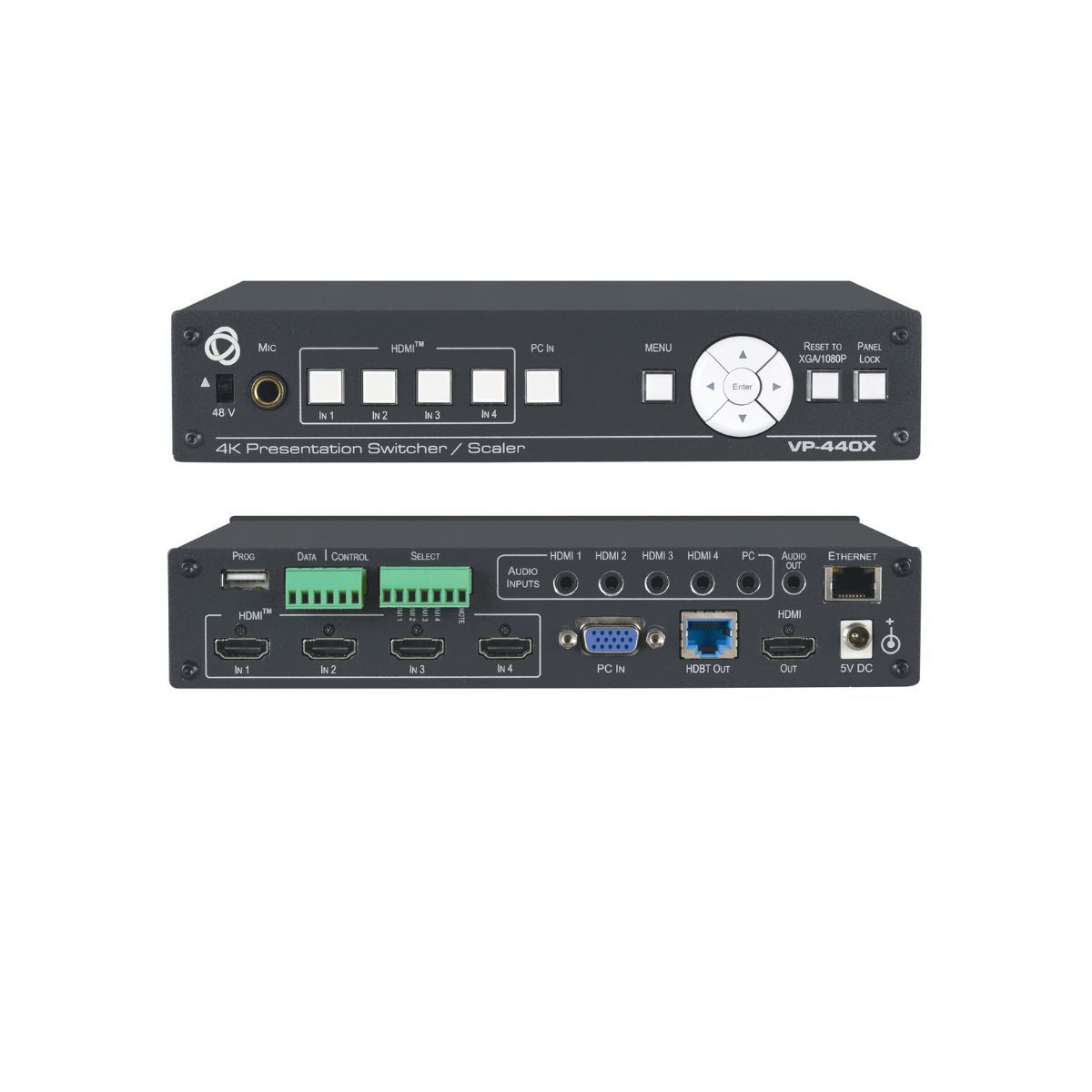

VP-440X 4K Presentation Switcher/Scaler
VP-440X is a high-performance 18G 4K HDR presentation switcher/scaler featuring four HDMI inputs and one VGA input. It supports video scaling, audio embedding, and simultaneous HDMI and HDBaseT outputs with analog stereo audio. HDBaseT extends 4K@60Hz (4:2:0) video up to 40m (130ft) over CAT copper cables, with longer distances supported at lower HD resolutions.
- 4 HDMI inputs
- Supports up to 4K@60 4:4:4 on the HDMI output
- Supports up to 4K@60 4:2:0 on the HDBaseT output
- HDBaseT Max. Range: 70m (230ft) at 1080p, 40m (130ft) at 4K@60Hz (4:2:0)
- Analog audio and microphone embedding
- CEC Support for display ON/OFF
- Upscales and downscales to/from all resolutions
| Inputs | 4 HDMI: On female HDMI connectors |
| 1 VGA: On a 15–pin HD connector | |
| 5 Stereo Analog Unbalanced Audio: On a 3.5mm mini jack | |
| 1 Microphone: On a 6.3mm jack | |
| Outputs | 1 HDMI: On a female HDMI connector |
| 1 HDBaseT: On an RJ–45 connector | |
| 1 Stereo Analog Unbalanced Audio: On a 3.5mm mini jack | |
| Ports | 1 Ethernet: 100Mbps, on an RJ–45 female connector |
| 1 DATA RS-232: On a 3–pin terminal block for serial link extension | |
| 1 CTRL RS-232: On a 3–pin terminal block for device control | |
| 6 Contact Closure Switches: On a 7−pin terminal block connector | |
| 1 USB: On a female USB–A connector for firmware upgrade | |
| Video | Max. Resolution: 4K@60Hz (4:4:4) |
| Max Data Rate: 18Gbps (6Gbps per graphic channel) | |
| Standards Compliance: HDCP 1.4 & 2.2; supports HDR10 |
