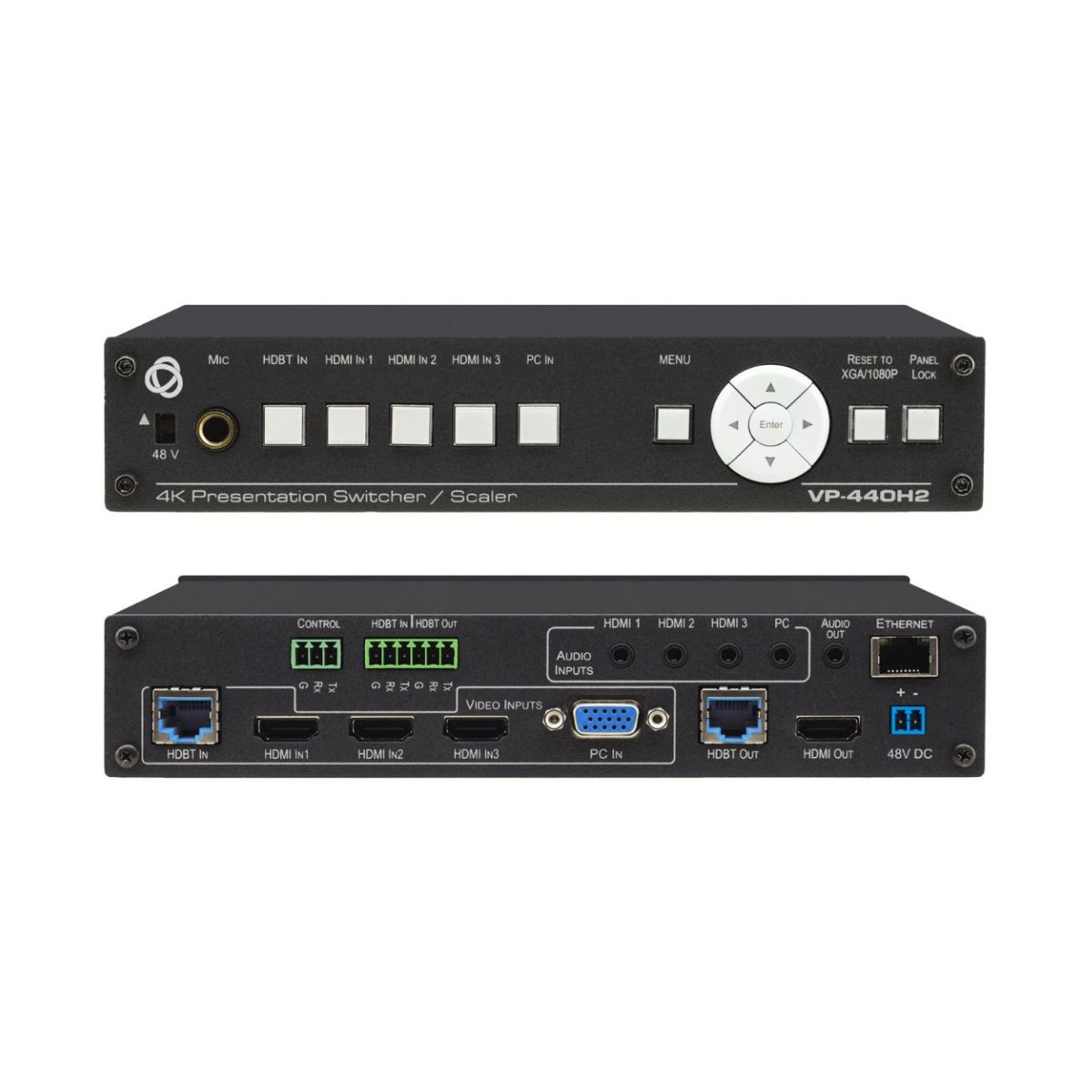

VP-440H2 HDMI Simultaneous Outputs
VP-440H2 is a high-performance 4K@60Hz (4:4:4) presentation scaler/switcher with one HDBaseT/PoE input, three HDMI inputs, and one VGA input. It scales video, embeds audio, and simultaneously outputs the processed signal through HDMI and HDBaseT, with support for both analog and embedded audio inputs and outputs.
- HDBaseT/PoE, HDMI, VGA Inputs
- Microphone Input, Audio Embedding/De–embedding and Audio DSP
- Auto–Input Switching
- Resolution — Up to 4K@60Hz (4:4:4)
- Control — Ethernet with built–in web pages, On–Screen Display, RS–232
| Inputs | 3 HDMI: On female HDMI connectors |
| 1 VGA: On a 15–pin HD connector | |
| 1 HDBT: On an RJ−45 connector | |
| 1 Stereo Analog Unbalanced Audio: On a 3.5mm mini jack | |
| 1 Microphone: On a 6.3mm jack connector (with selectable 48V phantom power) | |
| Outputs | 1 HDMI: On a female HDMI connector |
| 1 HDMI: On a female HDMI connector | |
| 1 Unbalanced Stereo Audio: On a 3.5mm mini jack | |
| Video | Maximum HDBT Range: 130m (430ft) at 1080p@60Hz (36bpp); 100 m (330ft) at 4K@60Hz (4:2:0) |
| Switching Time between Inputs: 2 to 3 seconds | |
| HDMI Compliance: HDMI 2.0 | |
| HDCP Compliance: HDCP 2.2 | |
| Supported PC Web Browsers | Windows 7 and Higher: Internet Explorer (32/64 bit) version 10, Firefox version 30, Chrome version 35 |
| MAC: Chrome version 35, Firefox version 30, Safari version 7 | |
| Minimum Browser Window Size: 1024 x 768 |
