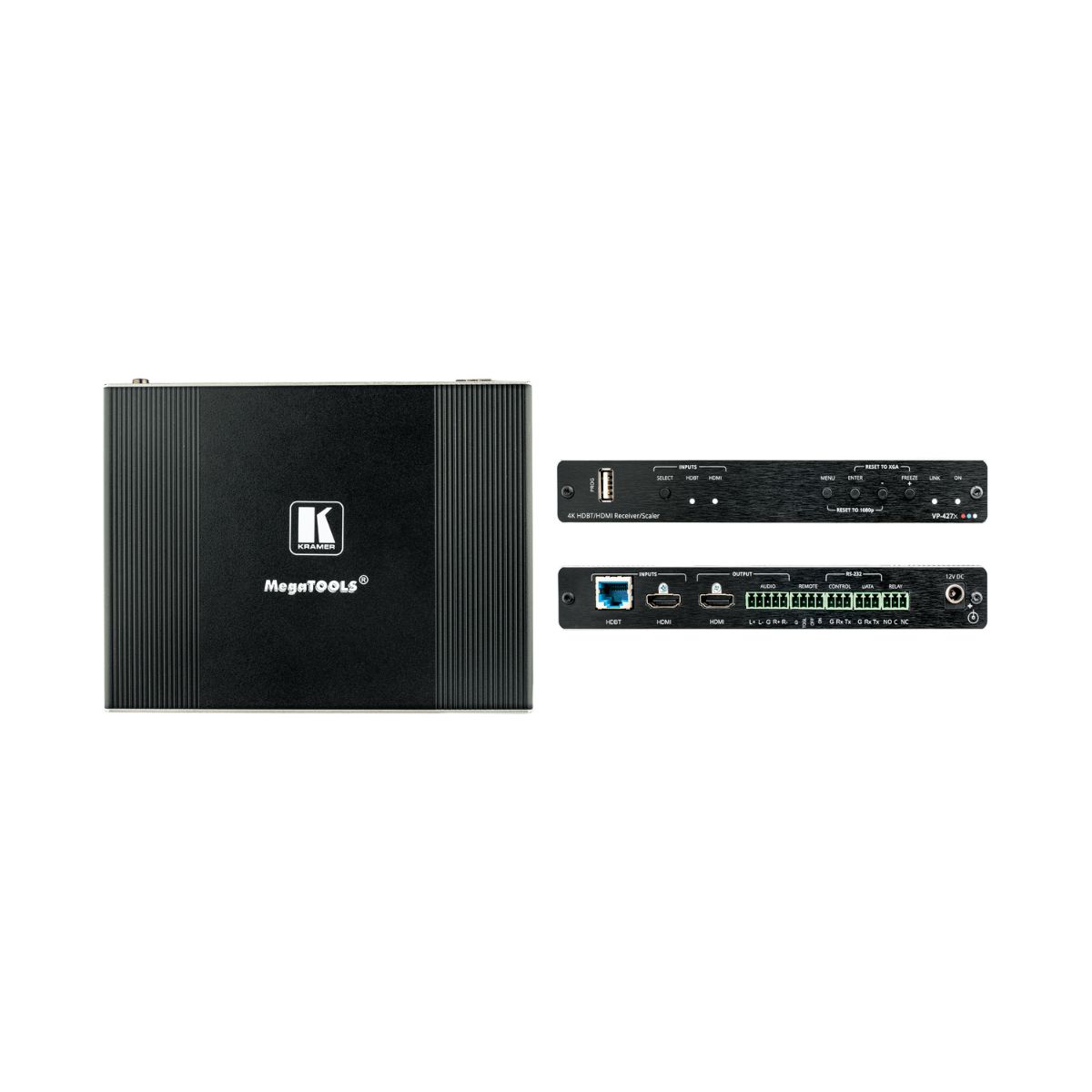

VP-427X

VP 427X is a high−performance auto−switcher receiver with integrated scaler for 4K HDMI™ over long−reach HDBaseT, with a local HDMI input and an HDMI output. VP 427X receives the HDBaseT signal from a compatible transmitter, converts it to an HDMI signal and up− or down−scales the picture to any resolution up to 4K@60Hz (4:4:4) set by the user or automatically matching the resolution of the display connected to the HDMI output.

Contact to Seller
  • Up to 4K@60Hz (4:4:4) up/down scaling resolution
  • Up to 70m (230ft) reach
  • Auto CEC–enabled display on/off
  • OSD management
Download Product catalog

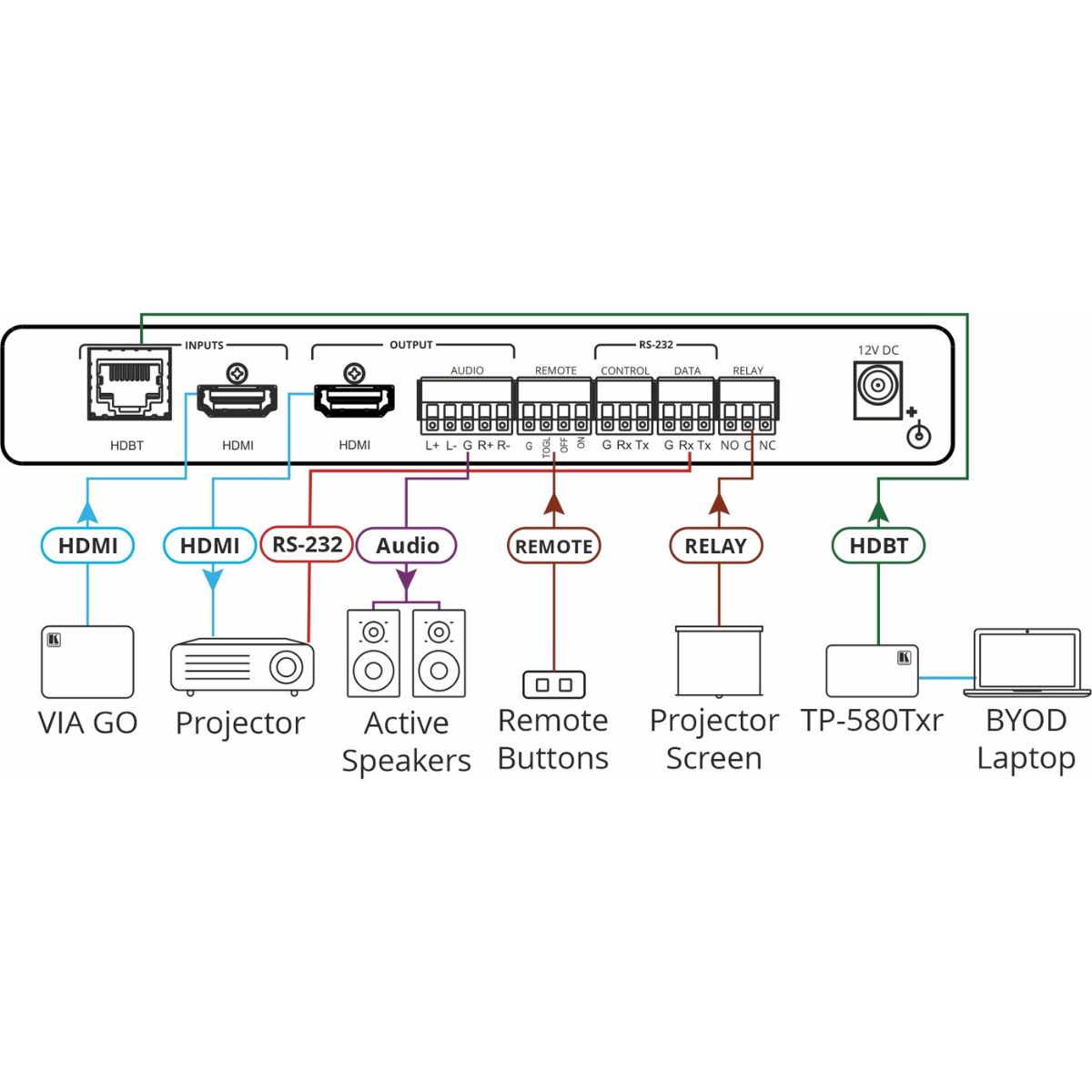

Inputs
  • 1 HDBaseT: On an RJ–45 female connector
  • 1 HDMI: On a female HDMI connector

Outputs
  • 1 HDMI: On a female HDMI connector
  • 1 Balanced Audio: On a 5–pin terminal block connector

Ports
  • 1 Control RS−232: On a 3–pin terminal block connector
  • 1 Data RS−232: On a 3–pin terminal block connector
  • 3 Remote Contact−Closure: On a 4 pin terminal block connector
  • 1 Relay: On a 3–pin terminal block connector
  • 1 Program USB: On a USB–A connector for firmware upgrade

Video
  • Max Data Rate (on the HDMI ports): 18Gbps
  • Max Resolution (on HDMI ports): 4K@60Hz (4:4:4)
  • Compliance: 4K60, CEC, xvYCC color per HDMI 2.0
  • Content Protection: HDCP 2.2, 1.4

Extended RS-232
  • Baud Rate: 300 to 115200

Power
  • Source: 2A/12V
  • Consumption: 1A
