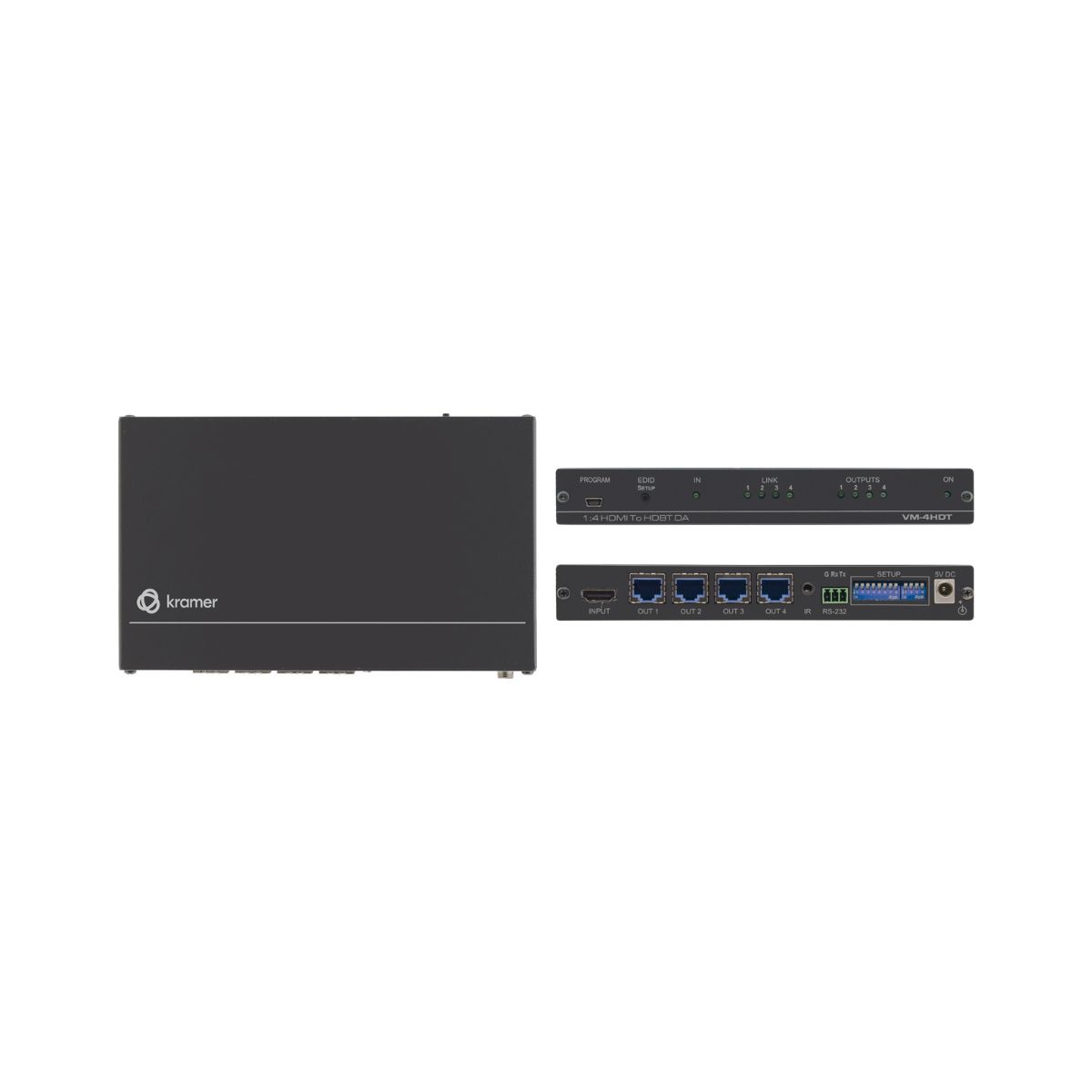

VM-4HDT

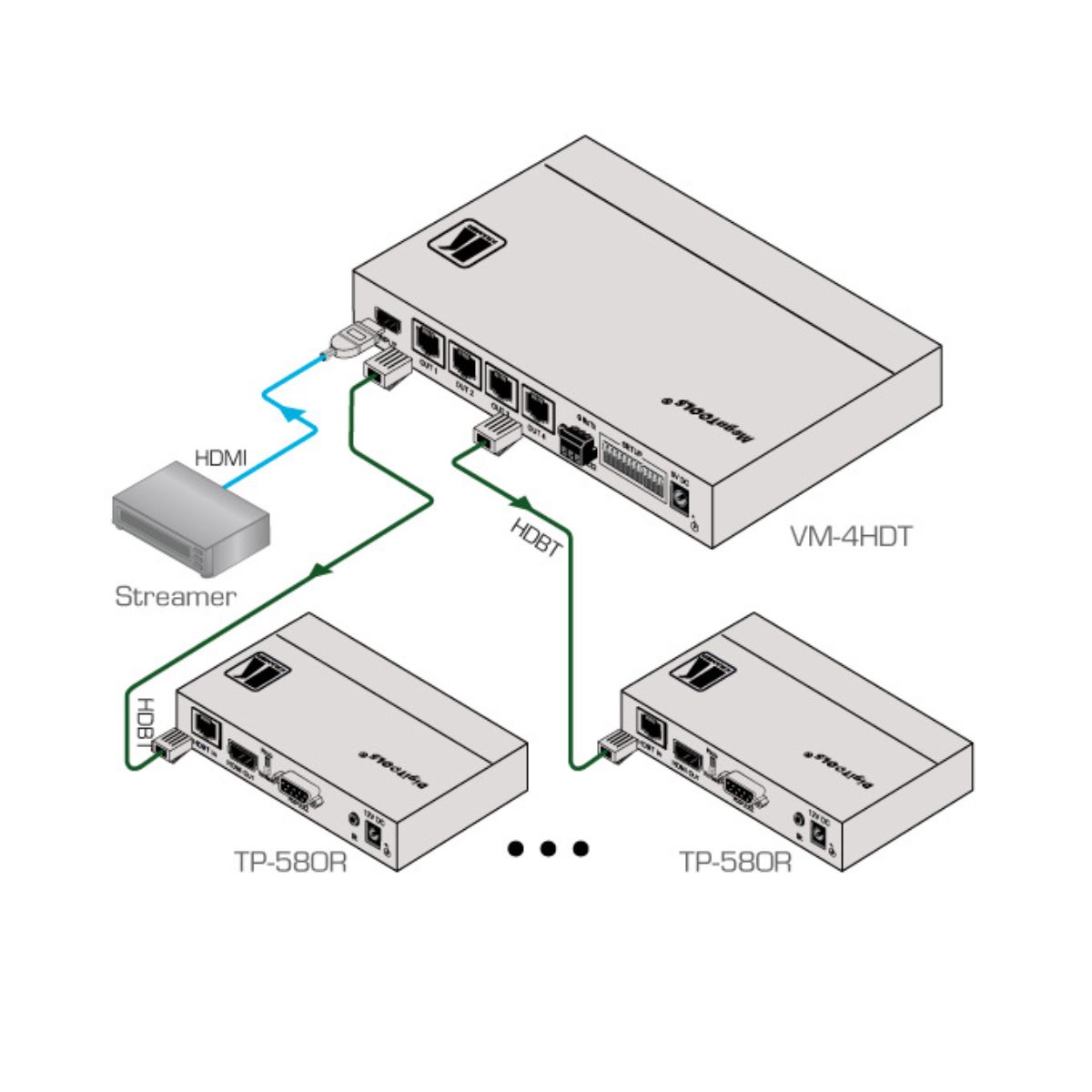

VM−4HDT is a high−quality, long−reach 4K@60Hz (4:2:0) HDBaseT extender distributor that takes one HDMI input, with IR and RS−232 control signals, converts it to an HDBaseT extension line signal, and distributes it to four HDBaseT outputs that connect to compatible HDBaseT receivers.

Contact to Seller
  • 1:4 HDMI extender distributor
  • Up to 70m (230ft) at 1080p
  • Up to 40m (130ft) at 4K (4:2:0)
  • Up to 4K (4:2:0) 24bpp video resolution
  • HDCP 1.4, HDBaseT 1.0 compliance

Inputs
  • 1 HDMI: On an HDMI female connector

Outputs
  • 4 HDBT: On RJ–45 female connectors

Ports
  • 1 IR: On a 3.5mm mini jack for IR link extension
  • 1 RS−232: On a 3–pin terminal block for serial link extension

Video
  • Max. Data Rate: 10.2Gbps (3.4Gbps per graphic channel)
  • Max. Resolution: 4K@60Hz (4:2:0) 24bpp
  • Standards Compliance: Supports HDCP 1.4 and HDBaseT 1.0
  • HDMI Support: Deep Color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0

Extension Line
  • Up to 40m (130ft): At 4K@60Hz (4:2:0)
  • Up to 40m (130ft): Note: When using Kramer HDBaseT cables
  • Up to 70m (230ft): At full HD (1080p @60Hz 36bpp)
    • Up to 70m (230ft): Note: When using Kramer HDBaseT cables

General
  • Controls: EDID setup button, 12 setup DIP switches
  • Indicator LEDs: OUTPUTS 1–4, LINK 1–4, active input, power on
    • 1 RS-232: On a Mini–USB female connector for firmware upgrade

Environmental Conditions
  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: –40° to +70°C (–40° to 158°F)
  • Humidity: 10% to 90%, RHL non–condensing

Power
  • Source: 5.2V DC, 4A
  • Consumption: 5V DC, 800mA
