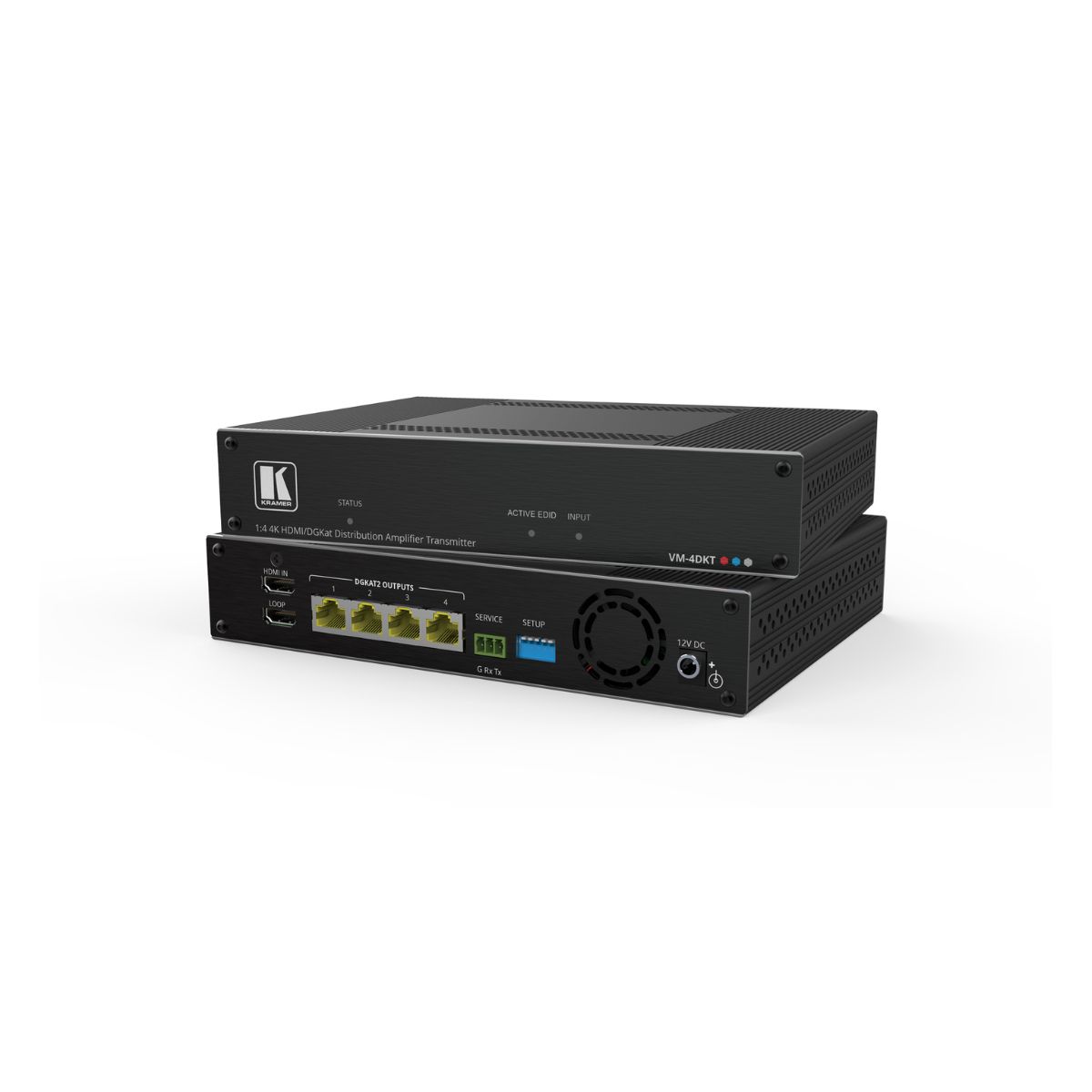

VM-4DKT

VM−4DKT is a high−quality, long−reach, 4K@60Hz (4:4:4) DGKat extender distributor that converts HDMI input signals into the transmitted DGKat™ 2.0 signal and distributes it to four identical outputs, which are connected to compatible DGKat receivers.

Contact to Seller
  • 1:4 HDMI extender distributor
  • Up to 60m (200ft) at 4K60 (4:4:4)
  • Remote PoC powering
  • Monitoring and cascading loop connection
Download Product catalog

Inputs
  • 1 HDMI: On an HDMI female connector

Outputs
  • 4 DGKat: On RJ–45 female connectors for extension lines
  • 1 HDMI Loop: On an HDMI female connector

Ports
  • 1 RS–232: On a 3–pin terminal block connector

Video
  • Transmitted Data Bandwidth: Up to 18Gbps (6Gbps per graphic channel)
  • Max Resolution at High Compression Level: 3840x2160@60Hz (4:4:4) 24bpp
  • Max Resolution at Standard Compression Level: 4096x2160@60Hz (4:4:4) 24bpp
  • Standards Compliance: HDR10, HDCP 2.3

High Compression Reach Extension
  • Using Shielded UNIKAT Cables: Up to 60m (200ft) at 4K@60Hz (4:4:4), Up to 70m (230ft) at 4K@30Hz (4:4:4) or full HD (1080p @60Hz 36bpp)
    • Using Plenum HDKat Cables: Up to 40m (130ft) at 4K@60Hz (4:4:4), Up to 50m (160ft) at 4K@60Hz (4:2:0) or full HD (1080p @60Hz 36bpp)

Standard Compression Reach Extension
  • Using Shielded UNIKAT Cables: Up to 40m (130ft) at 4K@60Hz (4:4:4), Up to 70m (230ft) at 4K@30Hz (4:4:4) or full HD (1080p @60Hz 36bpp)

Extension Line
  • Signal Compression: Standard or high compression level applied to >1080p signals
  • Compliance: DGKat 2.0
