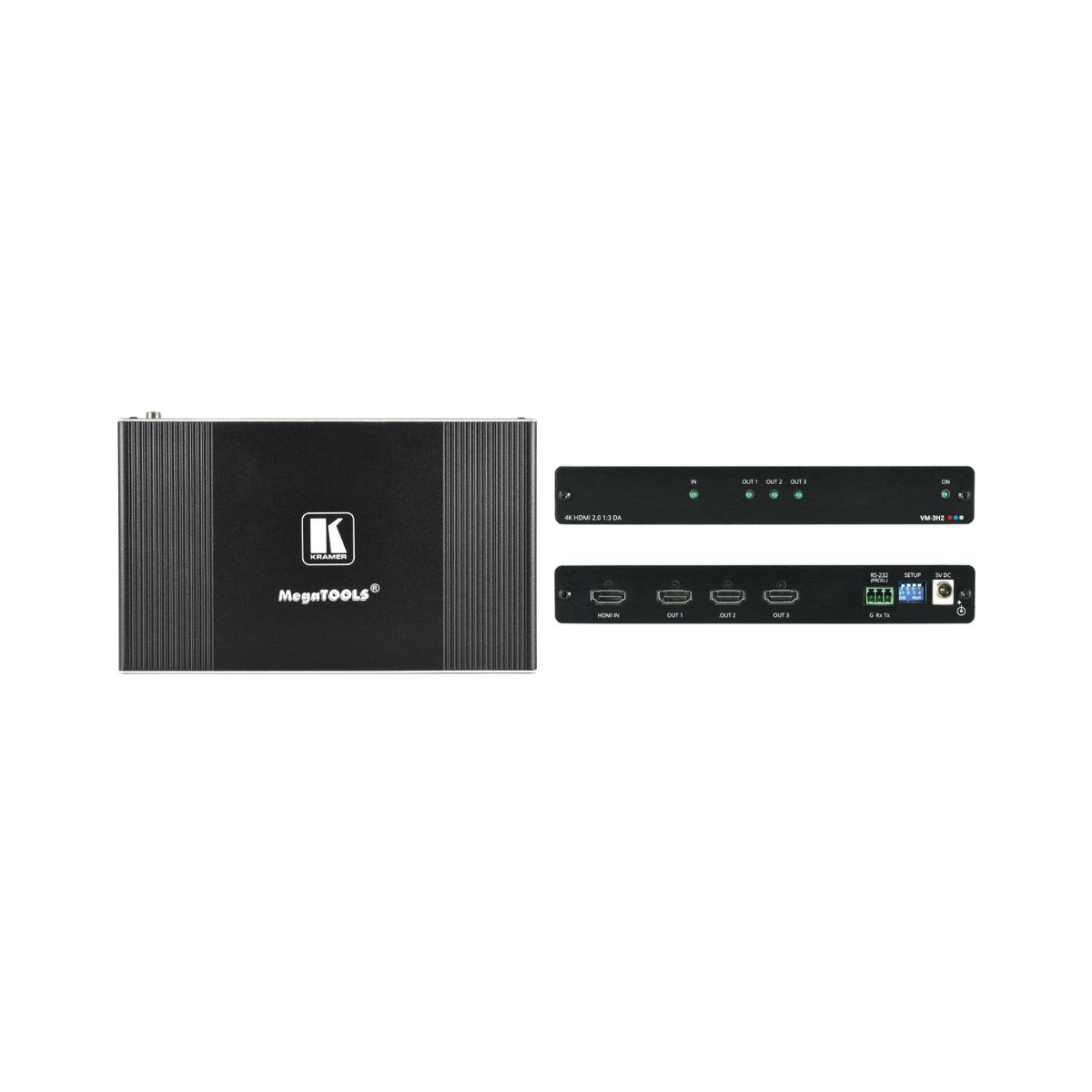

VM-3H2

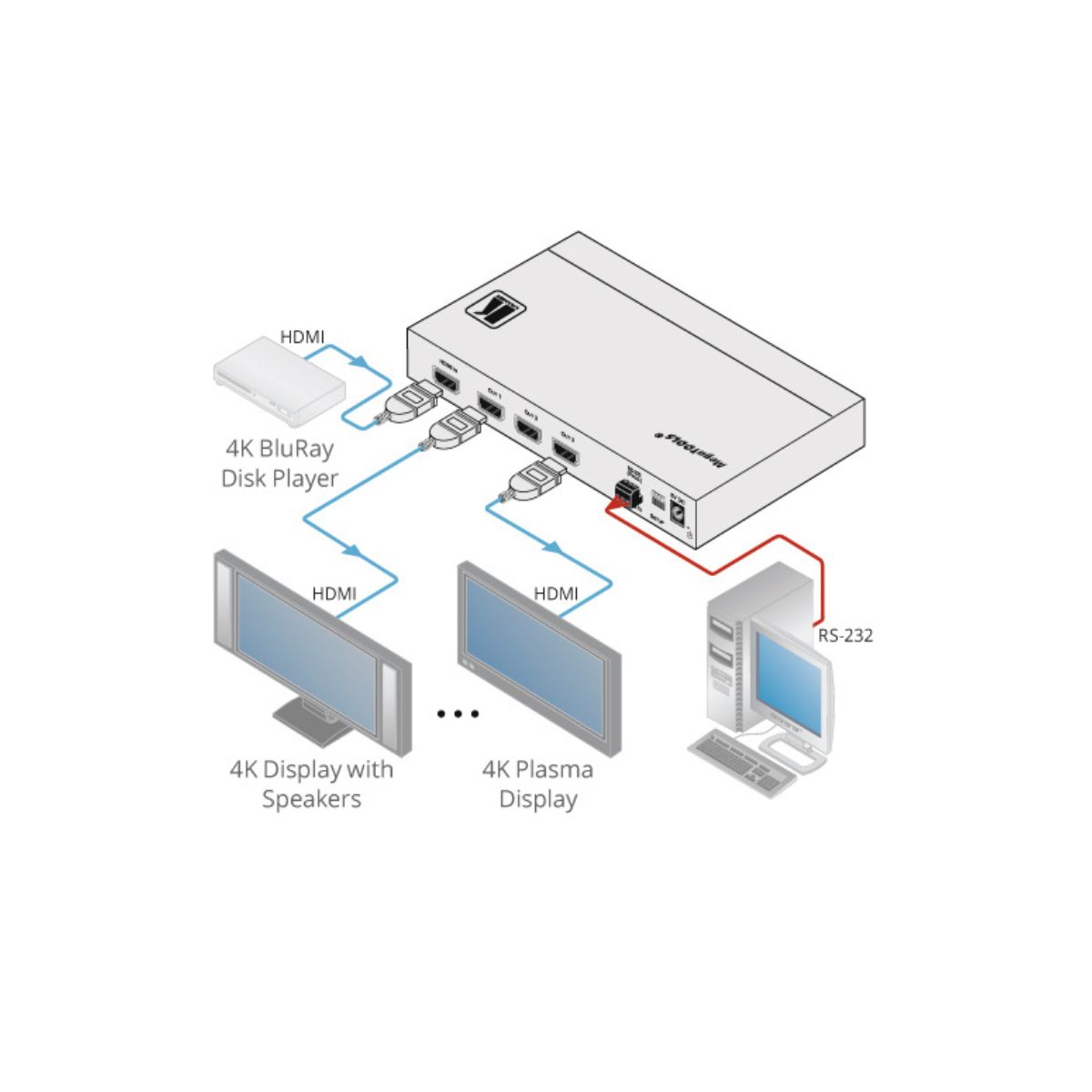

The VM−3H2 is a 1:3 distribution amplifier for up to 4K HDR HDMI signals that comply with the HDCP 2.2 content protection standard. The unit takes one HDMI input, equalizes and reclocks the signal, and distributes it to three identical outputs.

Contact to Seller
  • 1:3 HDMI distributor
  • Resolution — Up to 4K@60Hz (4:4:4)
  • Bandwidth — Up to 17.82Gbps
  • Compliance — HDR10, HDCP 2.2
  • Simple, intelligent EDID operation
  • Force RGB
  • HDCP authorization control
Download Product catalog

INPUT
  • 1 HDMI connector

OUTPUTS
  • 3 HDMI connectors

PORT
  • 1 RS–232 for firmware upgrade

VIDEO
  • Up to 17.82Gbps bandwidth (5.94Gbps per graphic channel)
  • Up to 4K@60Hz (4:4:4) resolution
  • HDR10, HDCP 2.2 signal compliance
  • Supports deep color, x.v.Color™, lip sync, 7.1 PCM, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0

INDICATOR LEDs
  • ON, IN, OUT 1 to 3

OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE
  • –40° to +70°C (–40° to 158°F)

HUMIDITY
  • 10% to 90%, RHL non–condensing

POWER CONSUMPTION
  • 5V DC, 730mA
