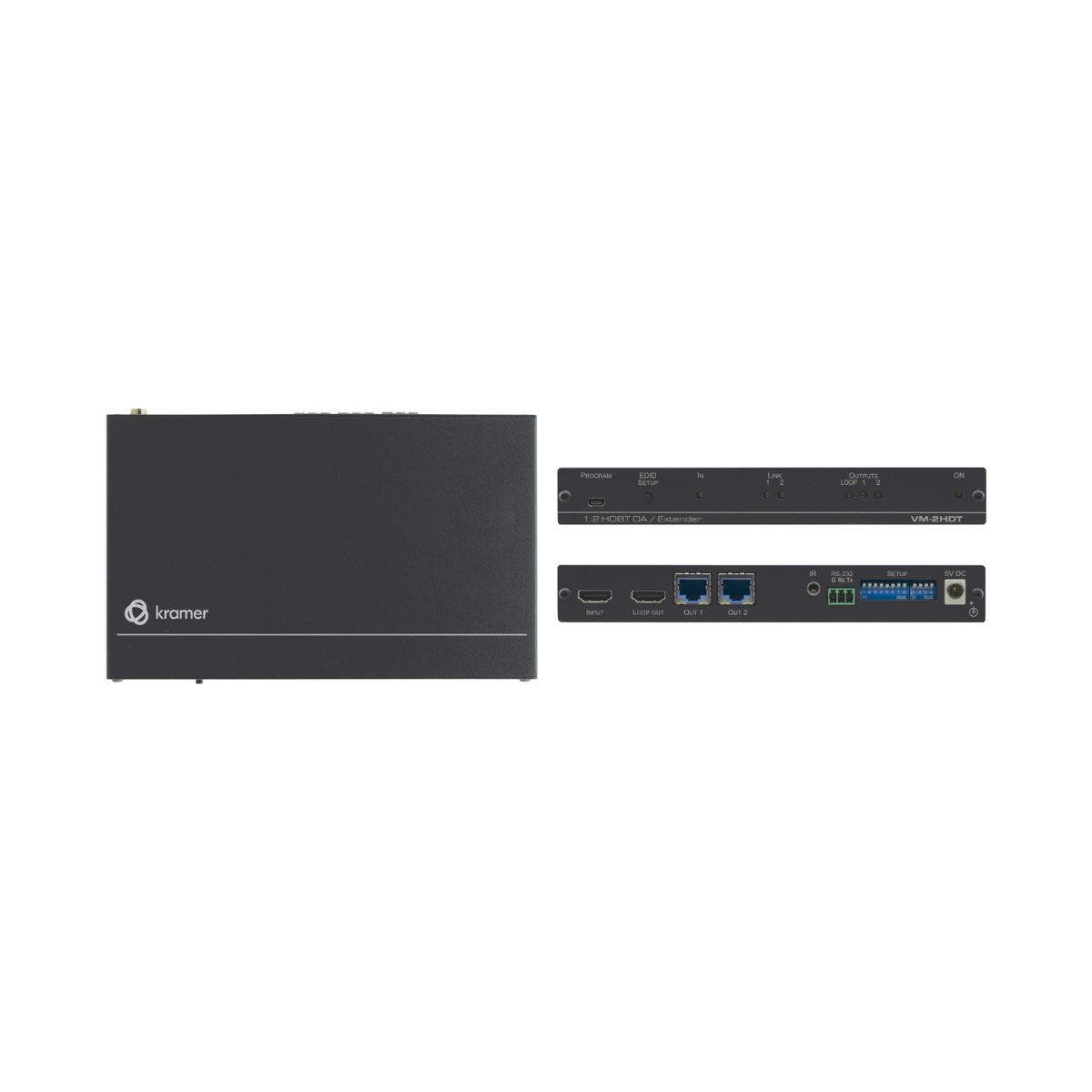

VM-2HDT

VM−2HDT is a high−quality, long−reach 1:2 HDBaseT extender distributor that takes one HDMI input, with IR and RS−232 control signals, converts it to an HDBaseT extension line signal, and distributes it to 2 HDBaseT outputs that connect to compatible HDBaseT receivers. VM−2HDT includes an HDMI LOOP output for connecting to an additional unit in a daisy chain.

Contact to Seller
  • 1:2 HDMI extender distributor
  • Up to 70m (230ft) at 1080p
  • Up to 40m (130ft) at 4K (4:2:0)
  • Up to 4K@60Hz (4:2:0) 24bpp video resolution
  • HDCP 1.4, HDBaseT 1.0 compliance
Download Product catalog

Inputs
  • 1 HDMI: On an HDMI female connector

Outputs
  • 2 HDBT: On RJ–45 female connectors
  • 1 Loop HDMI: On an HDMI female connector

Ports
  • 1 IR: On a 3.5mm mini jack for IR link extension
  • 1 RS−232: On a 3–pin terminal block for serial link extension

Video
  • Max. Data Rate: 10.2Gbps (3.4Gbps per graphic channel)
  • Max. Resolution: Up to 4K@60Hz (4:2:0) 24bpp
  • Standards Compliance: Supports HDCP 1.4 and HDBaseT 1.0
  • HDMI Support: Deep Color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0

Extension Line
  • Up to 40m (130ft): At 4K@60Hz (4:2:0) (when using Kramer HDBaseT cables)
    • Up to 70m (230ft): At full HD (1080p @60Hz 36bpp) (when using Kramer HDBaseT cables)

User Interface
  • Indicator LEDs: Outputs, inputs, communication link and power
  • Controls: EDID setup button, 12 setup DIP switches
  • 1 RS-232: On a Mini–USB female connector for firmware upgrade
