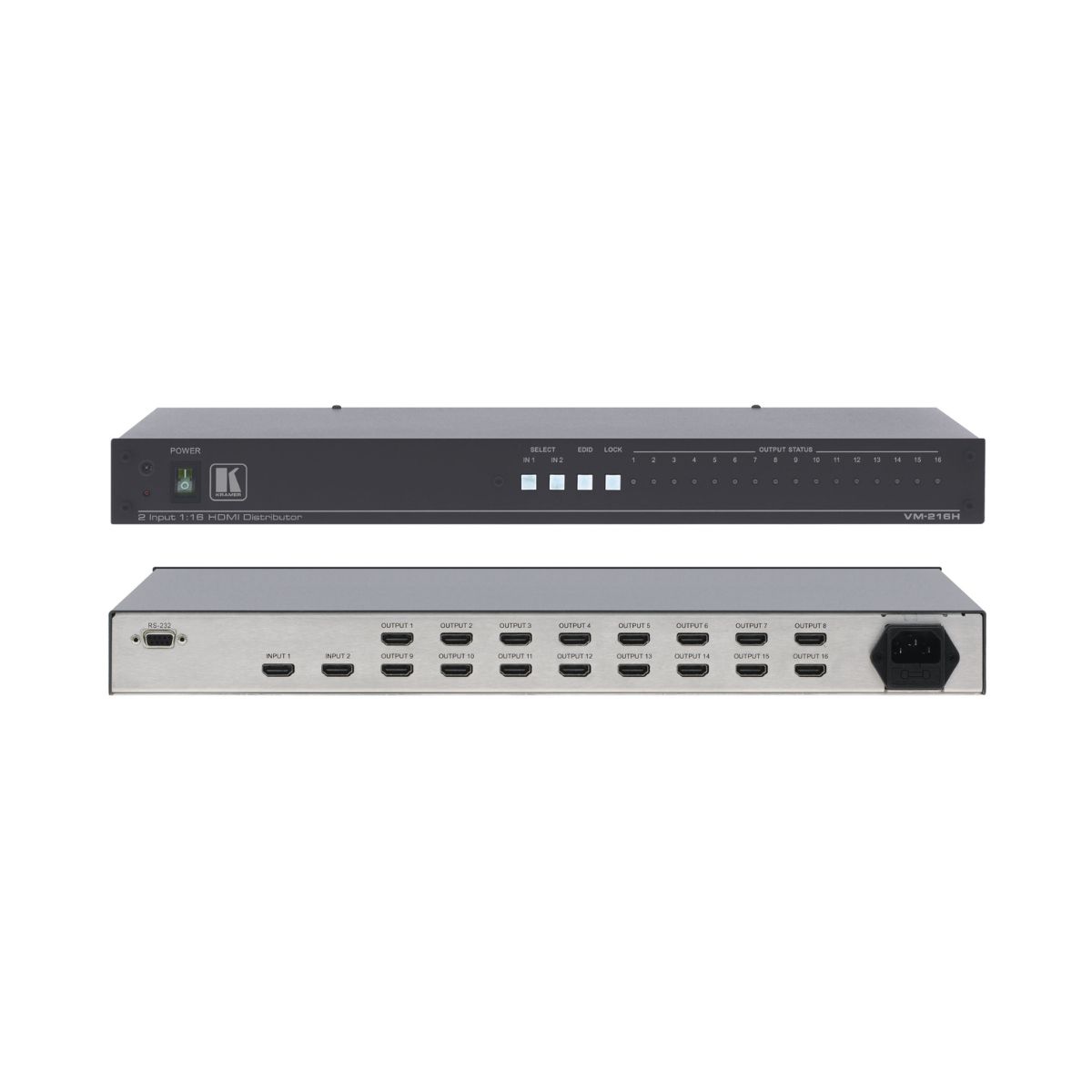

VM-216H

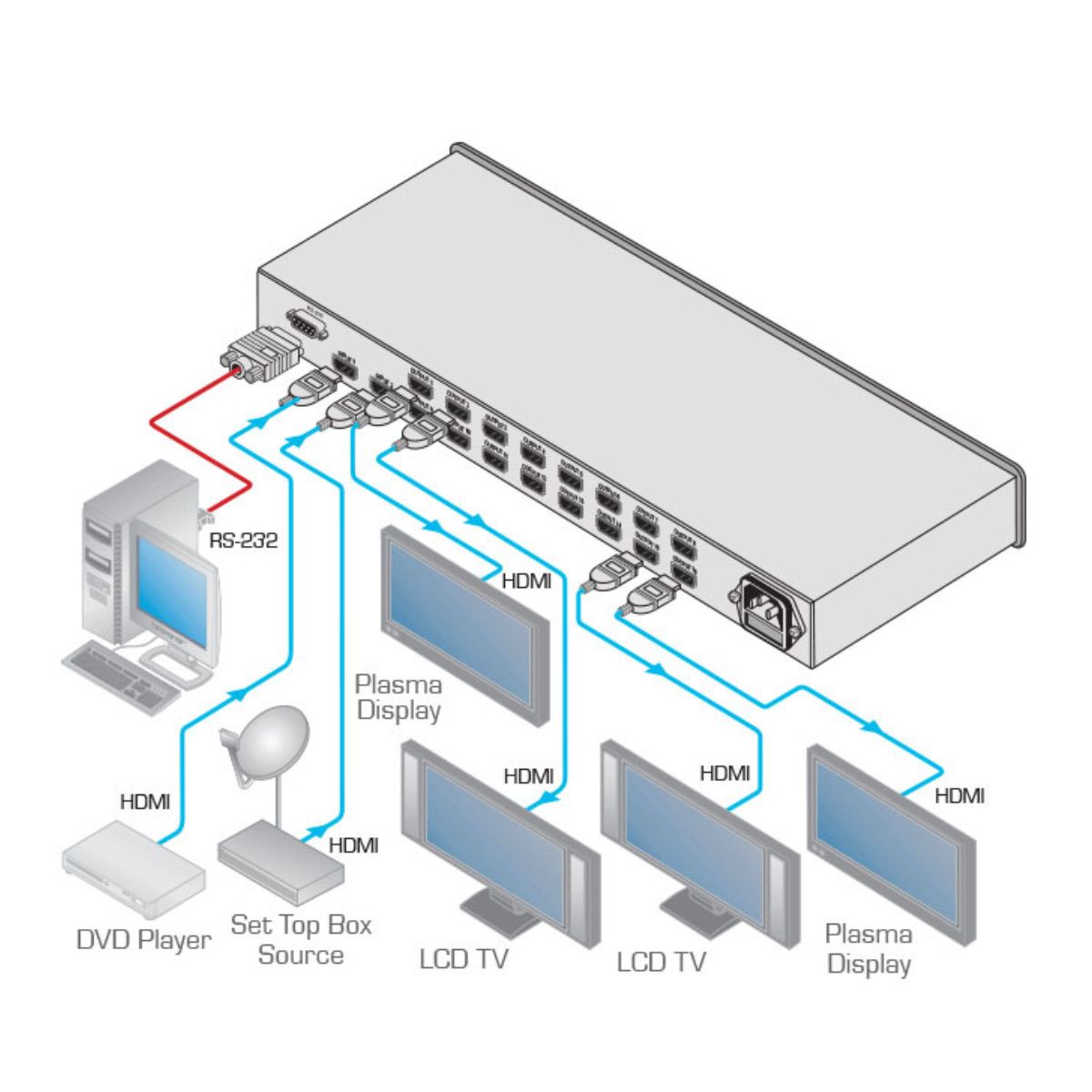

The VM−216H is a distribution amplifier for HDMI signals. It reclocks and equalizes one of 2 selectable input signals and distributes it to 8 or 16 identical outputs.

Contact to Seller
  •  Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).
  •  HDTV Compatible.
  •  HDCP Compliant.
  •  HDMI Support — Deep Color, x.v.Color™, Lip Sync, CEC.
  •  3D Pass–Through.
  •  Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
  •  EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
  •  Control — RS–232 & IR.
  •  Active Output LED Indicators.
Download Product catalog

INPUTS
  • 2 HDMI connectors

OUTPUTS
  • 16 on HDMI connectors

BANDWIDTH
  • 6.75Gbps (2.25Gbps per graphic channel)

COMPLIANCE WITH HDMI STANDARD
  • Supports HDMI and HDCP

CONTROLS
  • EDID, IN 1, IN 2, IR remote controller, and LOCK buttons

INDICATOR LEDs
  • Output status LEDs

OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE
  • –40° to +70°C (–40° to 158°F)

HUMIDITY
  • 10% to 90%, RHL non–condensing

POWER CONSUMPTION
  • 100–240V AC, 50/60Hz, 48VA
