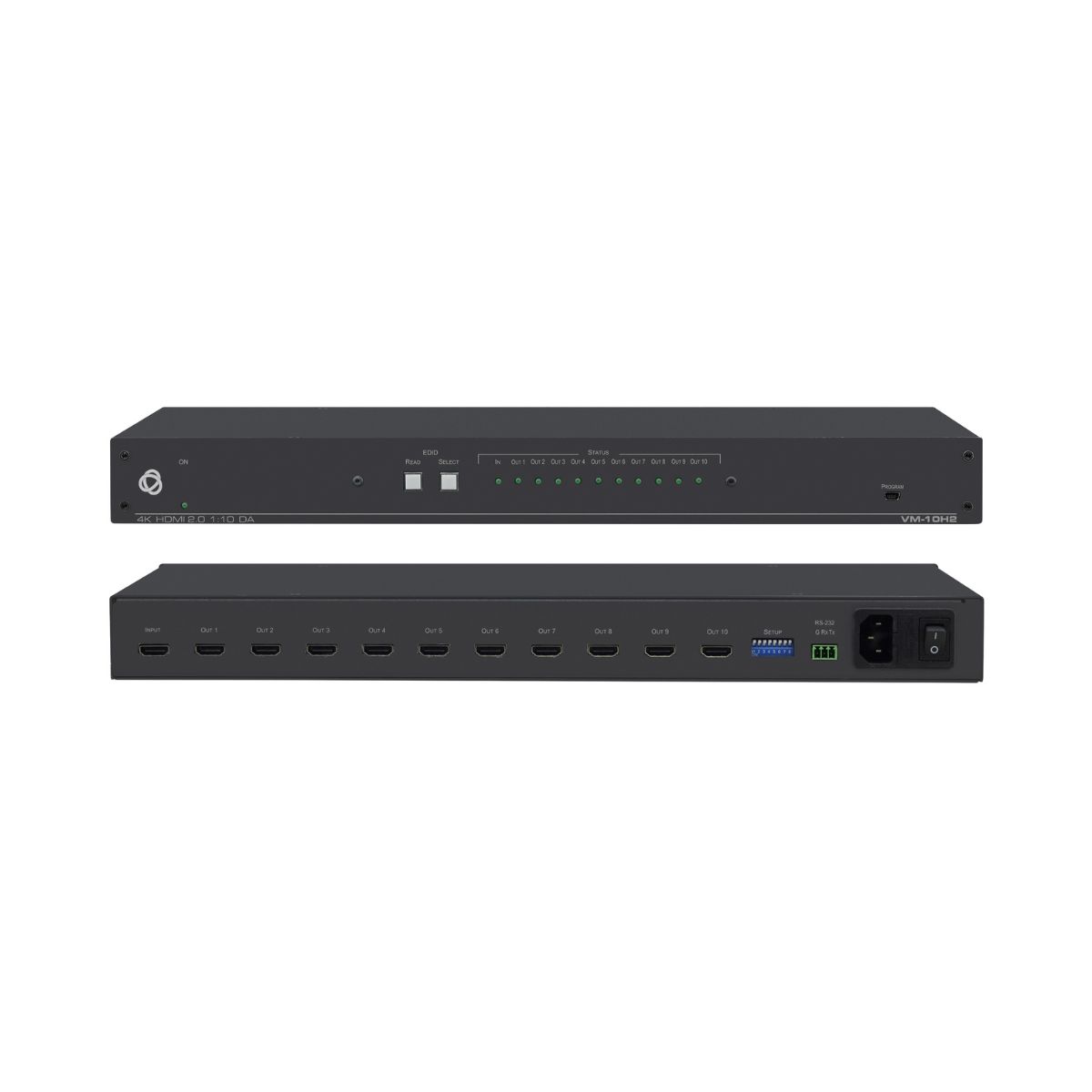

VM-10H2

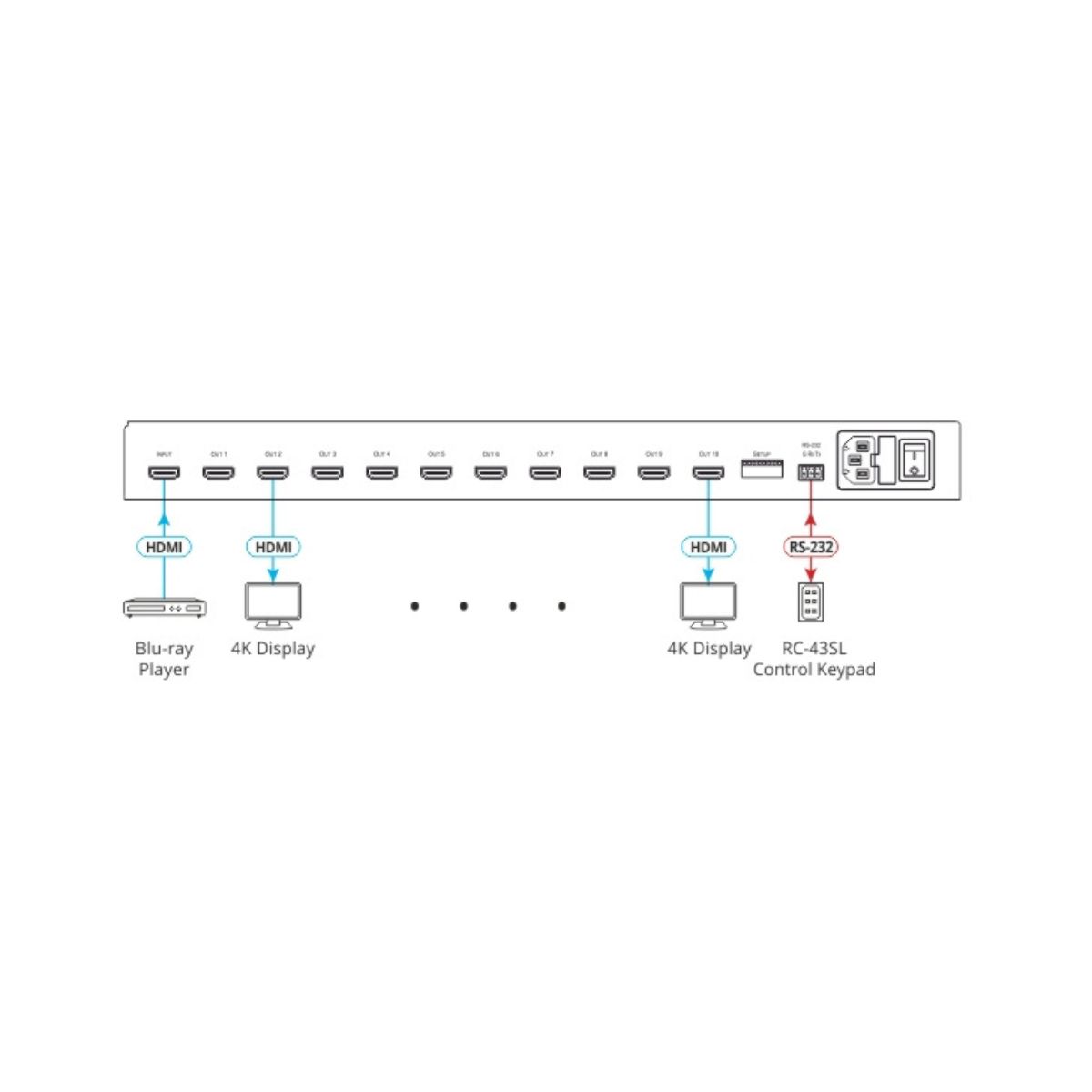

VM−10H2 is a 1:10 distribution amplifier for up to 4K HDR HDMI signals that comply with the HDCP 2.2 content protection standard. The unit takes one HDMI input, equalizes and reclocks the signal, and distributes it to ten identical outputs.

Contact to Seller
  • 1:10 HDMI distributor
  • Up to 4K@60Hz (4:4:4) video resolution
  • Up to 17.82Gbps bandwidth
  • HDR10, HDCP 2.2 compliance
Download Product catalog

INPUT
  • 1 HDMI on HDMI female connector

OUTPUTS
  • 10 HDMI on HDMI female connectors

PORTS
  • 1 RS–232 on 3–pin terminal block connector for device control

  • 1 Mini–USB female connector for firmware upgrade

VIDEO
  • Up to 17.82Gbps bandwidth (5.94Gbps per graphic channel)

  • Up to 4K@60Hz (4:4:4) resolution

  • HDR10, HDCP 2.2 signal compliance

  • Supports deep color, x.v.Color™, lip sync, 7.1 PCM, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0

CONTROLS
  • EDID SELECT and READ buttons, DIP switches

INDICATION LEDS
  • OUTPUTS 1 to 10, ACTIVE input and power ON LEDs

POWER SOURCE
  • 100–240V AC, 50/60Hz 55VA

POWER CONSUMPTION
  • 100–240V AC, 50/60Hz 15VA

ENCLOSURE
  • Full 19" 1U rack size, aluminum type

COOLING
  • Fan ventilation

Product Dimensions
  • 19" x 7.20 x 1U (43.6cm x 18.30cm x 4.36cm) W, D, H

Product Weight
  • 1.8kg (3.9lbs) approx.

Shipping Dimensions
  • 55.00cm x 27.60cm x 10.70cm (21.65" x 10.87" x 4.21" ) W, D, H

Shipping Weight
  • 2.8kg (6.1lbs) approx.
