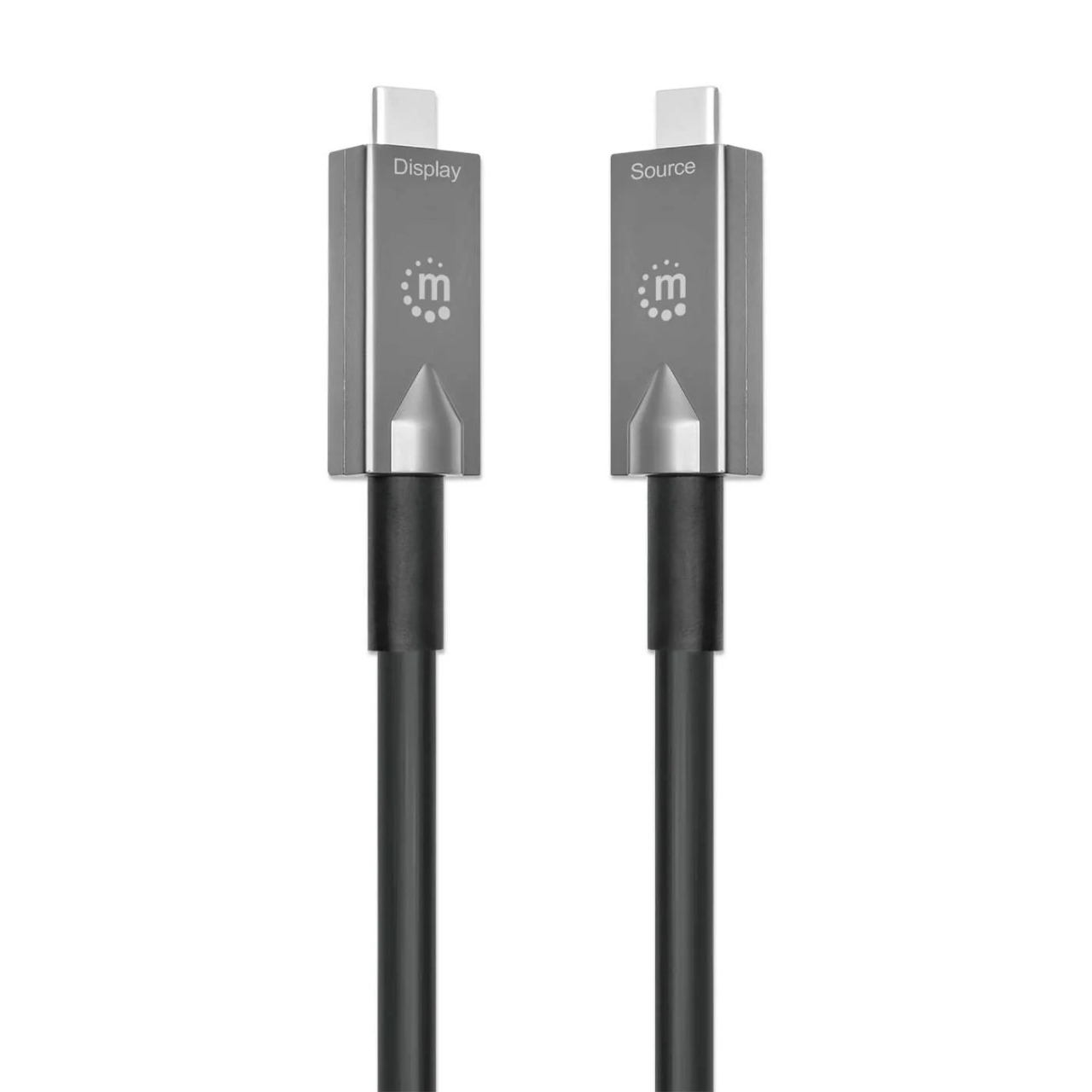

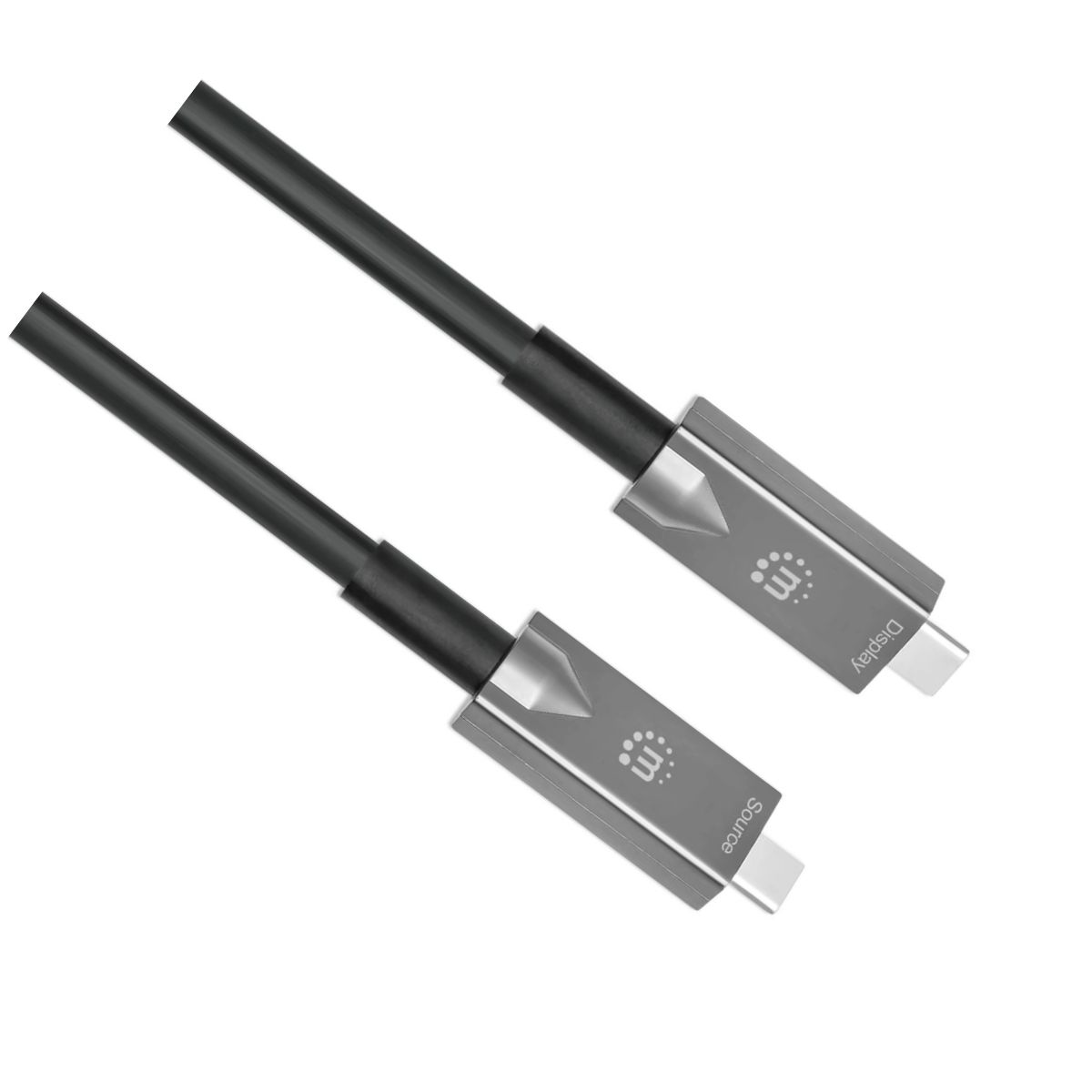

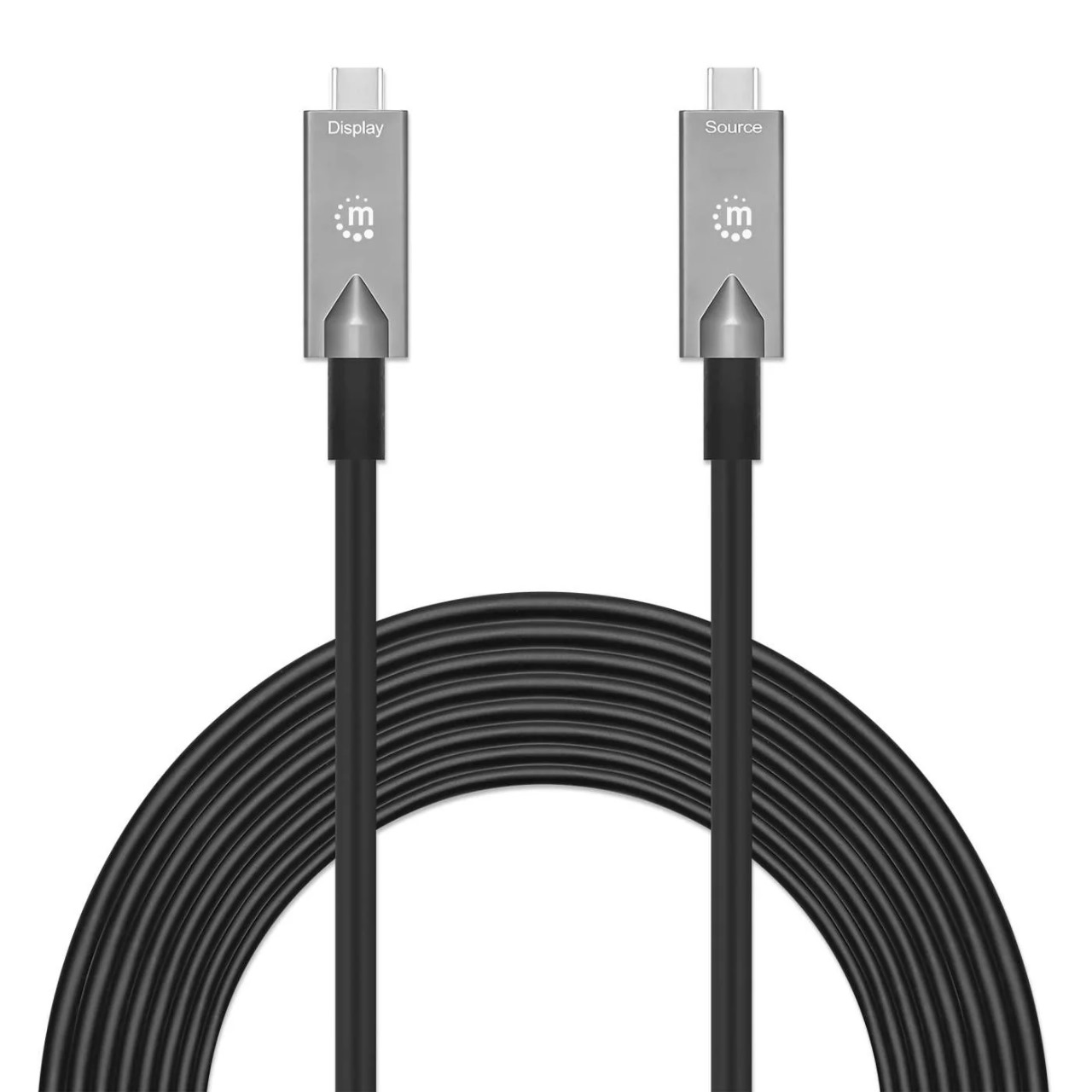

USB 3.2 Gen 2 Type-C10 m (33 ft.) Active Optical Cable (356428)

The Manhattan USB 3.2 Gen 2 Type-C Device Active Optical Cable provides a reliable, high-speed connection between USB-C devices and ports. It supports ultrafast data transfer rates of up to 10 Gbps, allowing you to sync music, photos, and other files quickly and efficiently. The reversible USB-C connector ensures easy, convenient insertion in either orientation. With high-capacity support for data, video, and power transmission, this AOC cable is an ideal solution for demanding applications such as digital signage and retail/Point-of-Sale systems.

Contact to Seller
  • USB-C male to USB-C male for connecting to USB-C device ports
  • Overcomes the USB-C distance limitation for power, data, and video without signal loss; great for digital signage, retail/Point-of-Sale, and more
  • USB 3.2 Gen 2 compliant, supporting SuperSpeed+ transfer rates up to 10 Gbps; backward compatible with USB 3.0/USB 2.0
  • Fiber and copper-wire hybrid for a thinner cable, ideal for installation in tight and narrow spaces
  • USB-C compliance with DisplayPort 1.4 Alternate Mode (DP Alt Mode) for resolutions up to 4K@30Hz on supported devices and displays
  • Supports USB Power Delivery (PD) function up to 60 W and current up to 3 A
  • Foil, braid, and fiber triple shielding to reduce EMI and other interference sources
  • Aramid fiber components for maximum strength and heat resistance
  • Bus-powered - no external power required
Download Product catalog
Two USB-C 24-pin males
24/28 AWG
Triple shielding: aluminum foil, braid and aramid fiber
Fiber: OM3
Molded TPE boot with strain relief
Die-cast zinc alloy connector material
Jacket OD: 6.5 mm (2.56 in.)
Bend radius: 60 mm (2.36 in.)
Length: 10 m (33 ft.)
Net weight: 650 g (1.43 lbs.)
