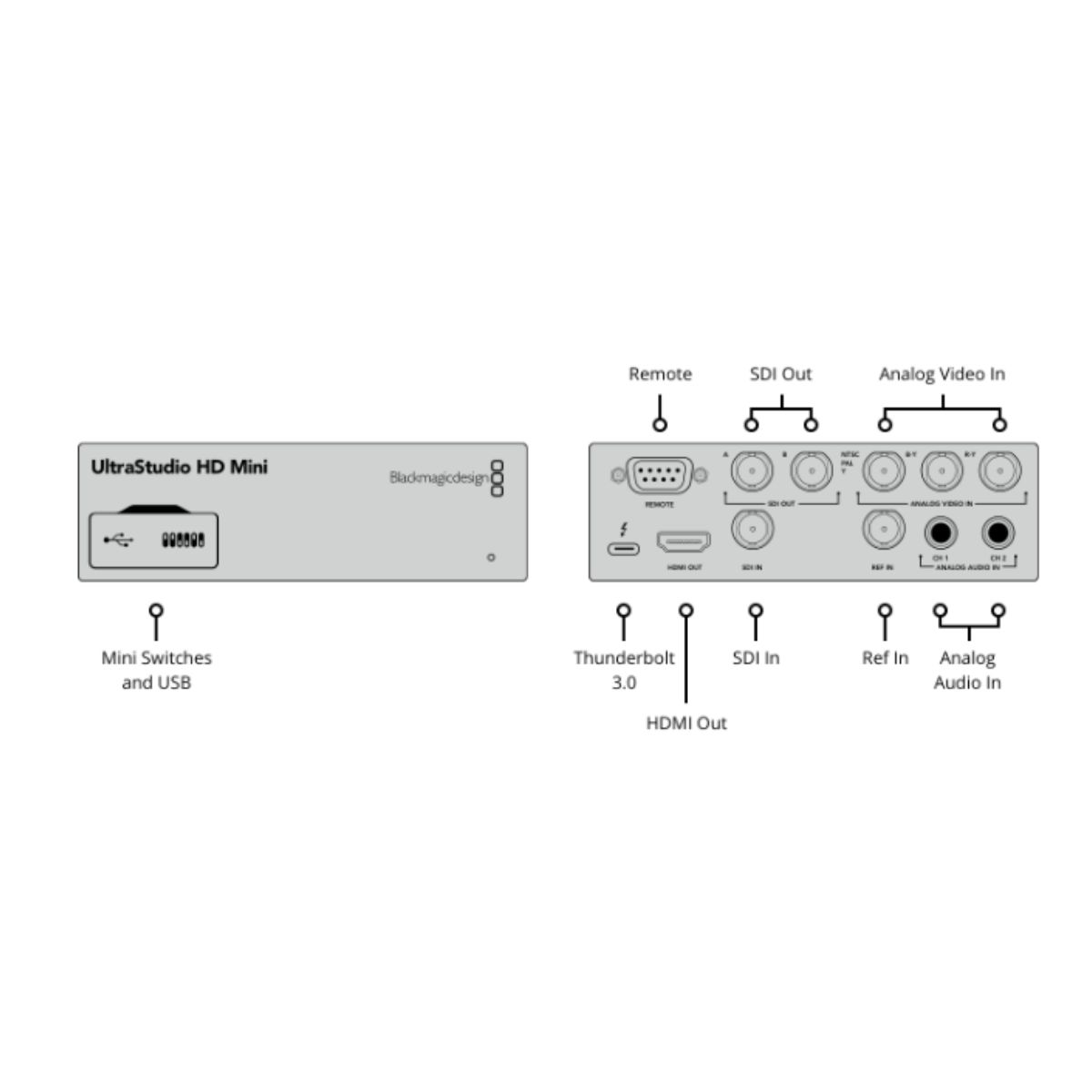

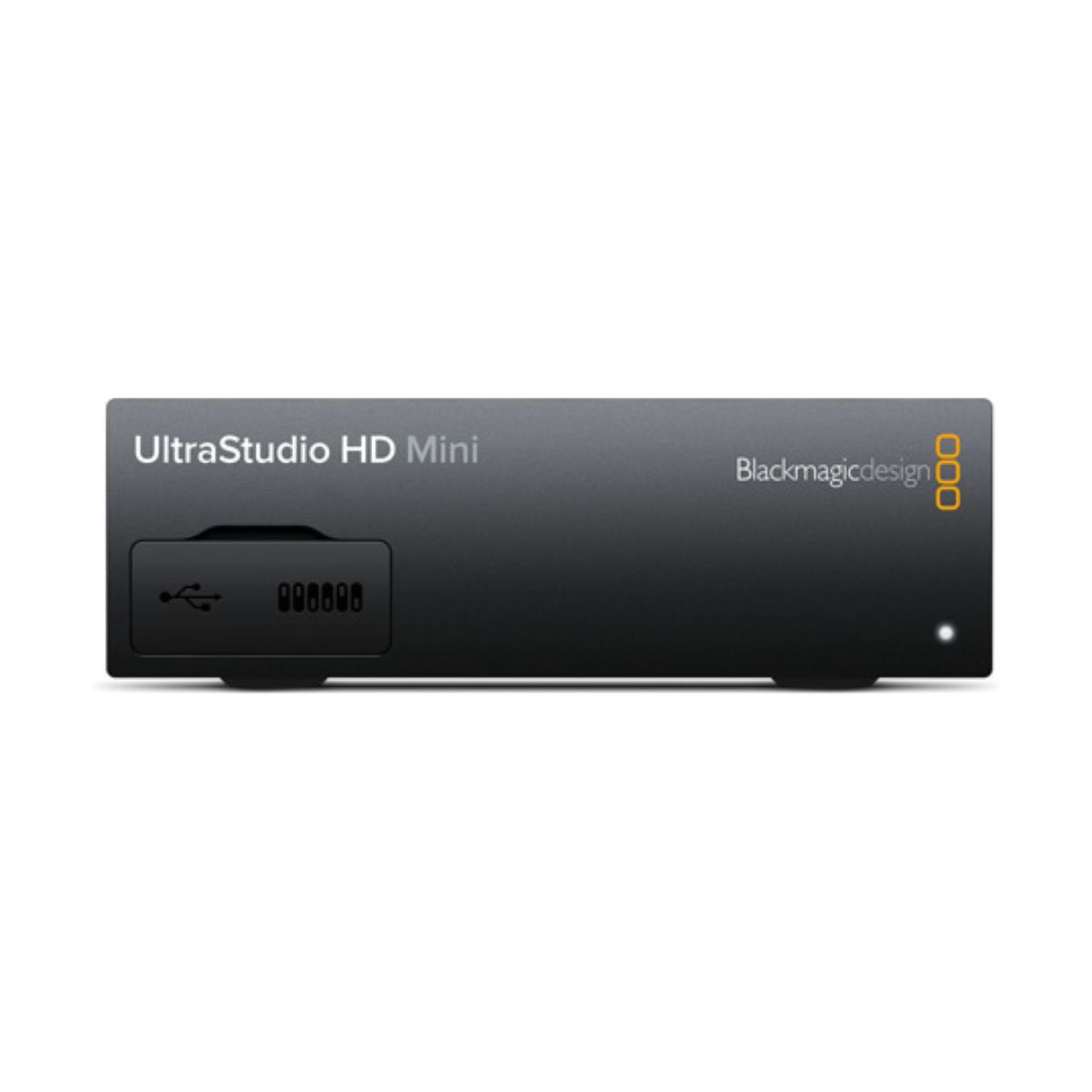

UltraStudio HD Mini features professional broadcast-quality connections that include 3G-SDI, analog YUV, and composite NTSC/PAL video inputs, along with a reference input. There are also two ¼” audio connections for analog audio input that work with balanced and HiFi sources. In addition, UltraStudio HD Mini can remotely control professional broadcast decks using the built-in RS-422 connection. For output, you get dual-link 3G-SDI with fill and key, and an HDMI connection for monitoring video with a big-screen television!

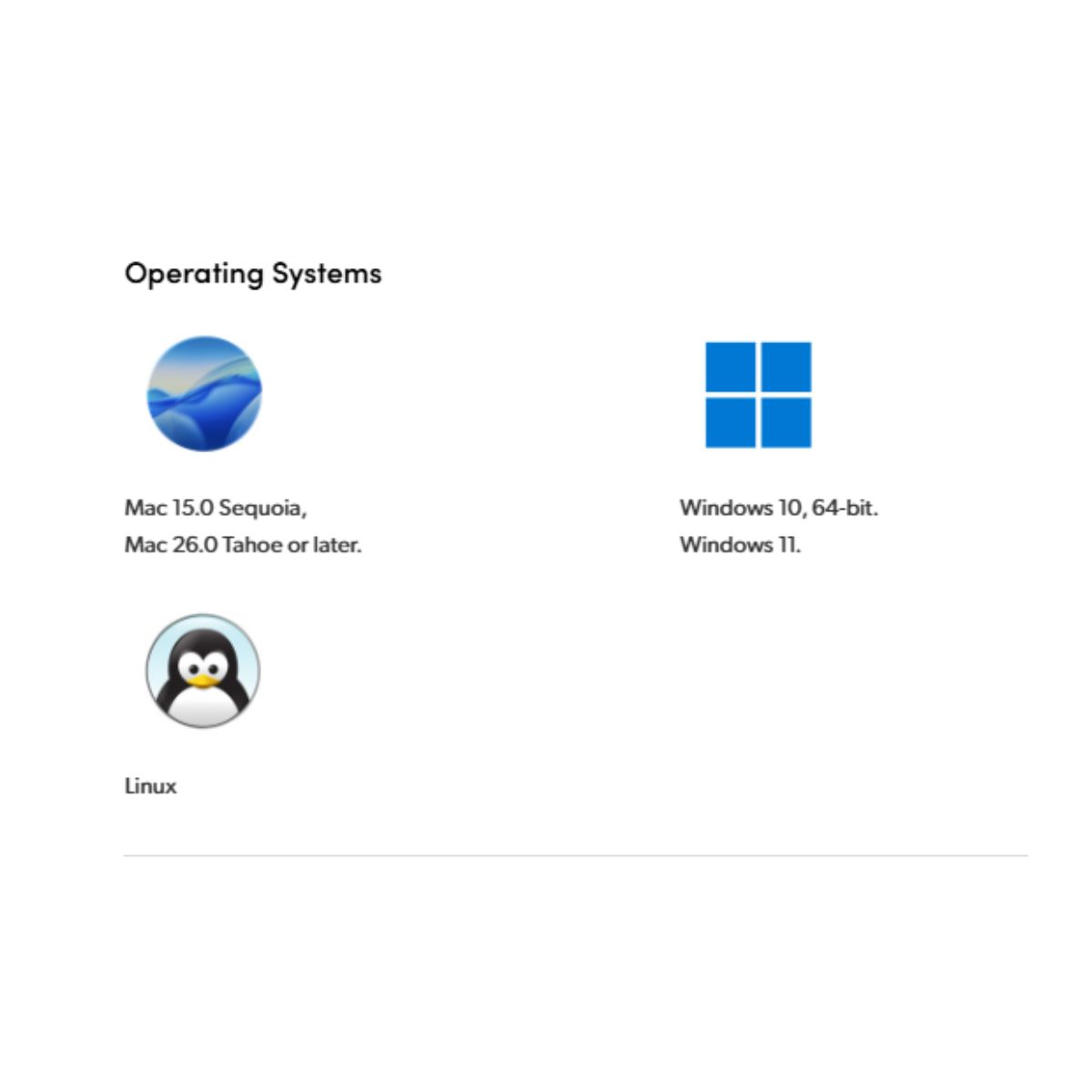

Video Standards
|
SD Video Standards |
525i59.94 NTSC, 625i50 PAL |
|
HD Video Standards |
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 |
|
2K Video Standards |
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF |
|
Ultra HD Video Standards |
None |
|
4K Video Standards |
None |
|
SDI Compliance |
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M and SMPTE 425M A/B. |
|
SDI Metadata Support |
RP 188/SMPTE 12M-2 and closed captioning. |
|
Audio Sampling |
Television rate of 48kHz and 24 bit. |
|
SDI Video Sampling |
4:2:2/4:4:4 |
|
Color Space |
REC 601, REC 709. |
|
HDMI Resolution |
Pixel for pixel HD resolution input from connected device. |
|
Multiple Rate support |
SDI and HDMI video connections are switchable between standard definition and high definition. SDI switches between 270 Mb/s, 1.5 Gb/s and 3 Gb/s. |
Color Precision
|
HDMI |
8-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards. |
|
SDI |
8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards. |
Connections
|
SDI Video Inputs |
1 x 3Gb/s SD/HD switchable. |
|
SDI Video Outputs |
2 x 3Gb/s SD/HD switchable, supports fill and key. |
|
SDI Rates |
270Mb, 1.5G, 3G |
|
Optical SDI |
None |
|
HDMI Video Inputs |
None |
|
HDMI Video Outputs |
1 x HDMI 1.4b type A connector. |
|
Analog Video Inputs |
Y, B-Y, R-Y/NTSC/PAL |
|
Analog Video Outputs |
None |
|
Analog Audio Inputs |
2 x 1/4 inch jack connectors for balanced and unbalanced analog audio. |
|
Analog Audio Outputs |
None, embedded audio only. |
|
SDI Audio Inputs |
16 Channels embedded in SD and HD. |
|
SDI Audio Outputs |
16 Channels embedded in SD and HD. |
|
HDMI Audio Outputs |
2 Channels embedded in SD and HD. |
|
Timecode Connection |
None. RP-188 only. |
|
Reference Input |
Tri-Sync or Black Burst. |
