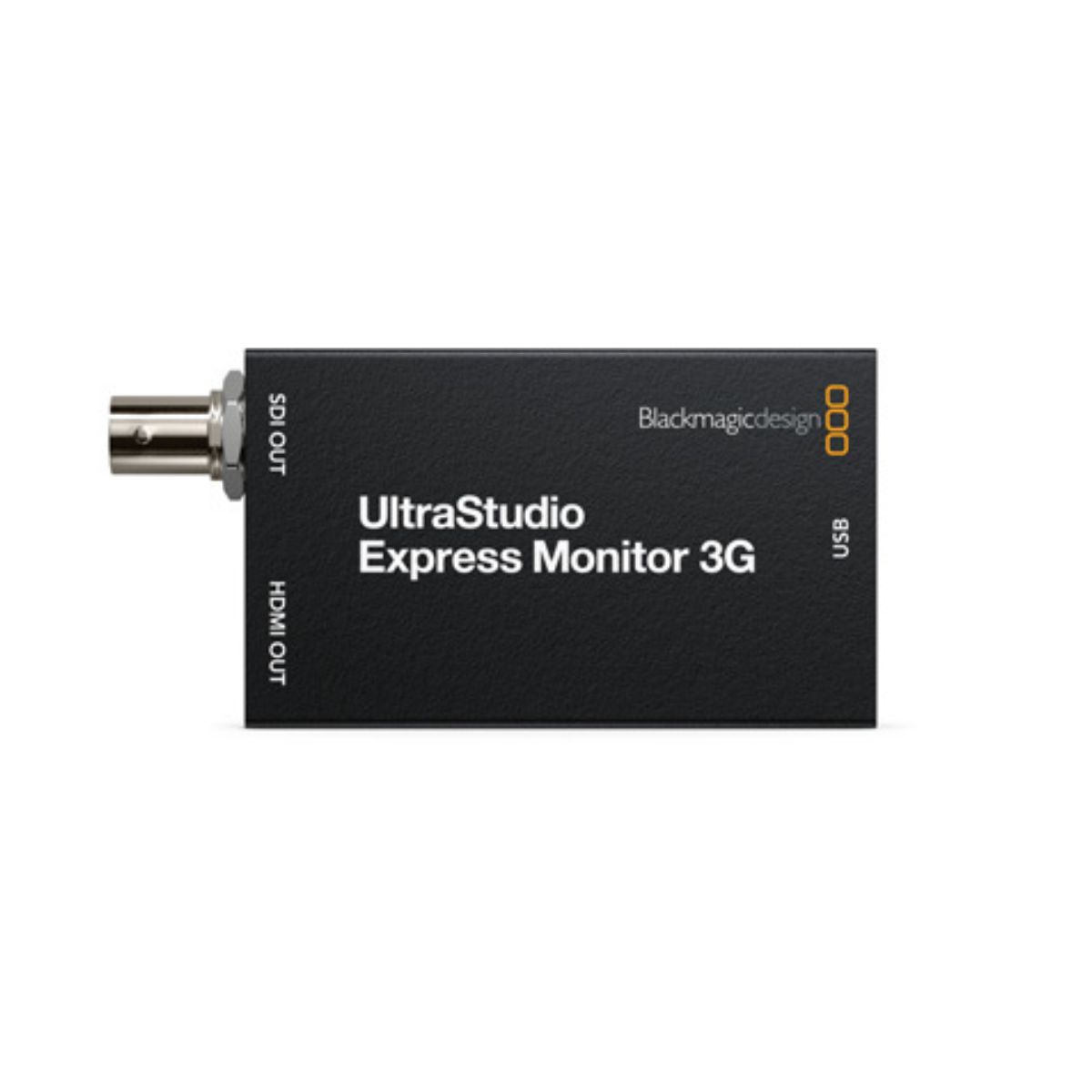

Get compact 3G-SDI and HDMI video playback from your USB4 or Thunderbolt 4 laptop or desktop computer! UltraStudio Express Monitor 3G supports broadcast-quality 10-bit SDI and HDMI video outputs from popular editing software such as DaVinci Resolve or broadcast graphics software.
HDMI Video Standards
|
SD Video Standards |
525i59.94 NTSC, 625i50 PAL |
|
HD Video Standards |
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
|
HDMI Audio Sampling |
Television standard sample rate of 48 kHz and 24 bit. |
|
HDMI Video Sampling |
4:2:2 and 4:4:4 |
|
HDMI Color Precision |
10, 12-bit RGB 4:4:4 up to 1080p30, 8-bit RGB 4:4:4 and 12-bit YUV 4:2:2 in all standards. |
|
HDMI Configuration |
HDMI 2.0a supports Deep Color and HDR. Automatically configures to the connected display. |
|
HDMI Color Space |
Rec 601, Rec 709, and Rec 2020. |
|
HDMI HDR Support |
HDR metadata packing, HLG and PQ transfer characteristics. |
|
Multiple Rate Support |
HDMI video connection is switchable between SD and HD. |
SDI Video Standards
|
SD Video Standards |
525i59.94 NTSC, 625i50 PAL |
|
HD Video Standards |
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
|
2K Video Standards |
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI |
|
SDI Compliance |
SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE ST2108-1 |
|
SDI Metadata Support |
RP 188/SMPTE 12M-2 and closed captioning. |
|
SDI Audio Sampling |
Television standard sample rate of 48 kHz and 24-bit. |
|
SDI Video Sampling |
4:2:2 and 4:4:4 |
|
SDI Color Precision |
8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards. |
|
SDI Color Space |
Rec 601, Rec 709 and Rec 2020. |
|
SDI HDR Support |
HDR metadata packing, HLG and PQ transfer characteristics. |
|
Multiple Rate Support |
SDI video connection is switchable between SD and HD. |
Connections
|
SDI Video Outputs |
1 x 10-bit SD/HD switchable |
|
SDI Rates |
270Mb, 1.5G, 3G |
|
SDI Audio Outputs |
16 Channels embedded in SD/HD |
|
HDMI Video Outputs |
1 x HDMI 2.0 type A connector |
|
HDMI Audio Outputs |
8 Channels embedded in SD/HD |
|
Computer Interface |
1 x USB Type-C® supporting USB 40Gbps. |
