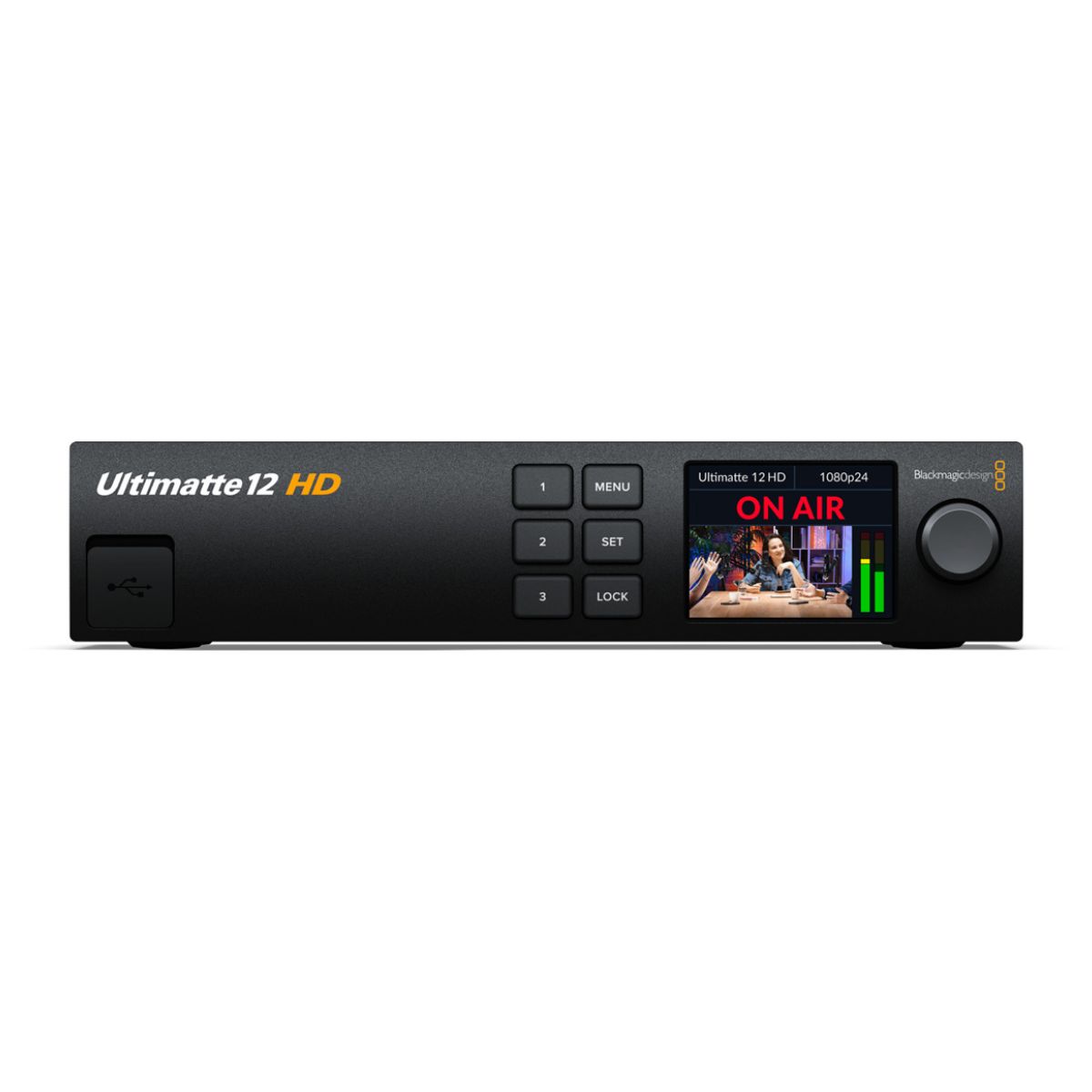

Ultimatte 12 HD is an advanced real-time compositing processor designed for keying live action video with next-generation broadcast graphics, virtual sets, and more. Ultimatte 12 HD features new algorithms and color science, incredible edge handling and color separation, amazing color fidelity, and better spill suppression than ever before. The high-performance 3G-SDI design gives you the power to work in HD with sub pixel processing for an amazing image.
Control
|
Front Panel |
2.2-inch color display, 3 preset buttons, 3 menu buttons, and a spin knob. |
|
Control Connection |
Network or direct Ethernet connection to a computer running Ultimatte Software Control or Ultimatte Smart Remote 4. |
|
Software Control |
Ultimatte Software Control supported on Mac™ or Windows™ computers. |
|
Hardware Control Panel |
Ultimatte Smart Remote 4 |
|
Custom Control |
Ethernet protocol and GPIO pinout included in the |
Composite Sources
|
Foreground |
1 x 3G-SDI In with Loop Out |
|
Background |
1 x 3G-SDI In Still from Media Pool |
|
Background Matte |
Internal Window Still from Media Pool |
|
Garbage Matte |
1 x 3G-SDI In Internal Window Still from Media Pool |
|
Holdout Matte |
1 x 3G-SDI In Internal Window Still from Media Pool |
|
Layer |
Still from Media Pool |
|
Layer Matte |
Internal Window Still from Media Pool |
Connections
|
SDI Video Inputs |
5 |
|
SDI Video Outputs |
4 |
|
SDI Video Loop Outputs |
1 Reclocked SD or HD Camera FG. |
|
SDI Rates |
270Mb, 1.5G, 3G. |
|
Video Input Re-Sync |
On all inputs. |
|
Reference Connections |
1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst. |
|
GPIO |
DE15 |
|
Ethernet |
Up to 1Gb/s for device control and loading stills into Media Pool. |
|
Computer Interface |
1 x USB-C 3.0 for device configuration and software updates. |
