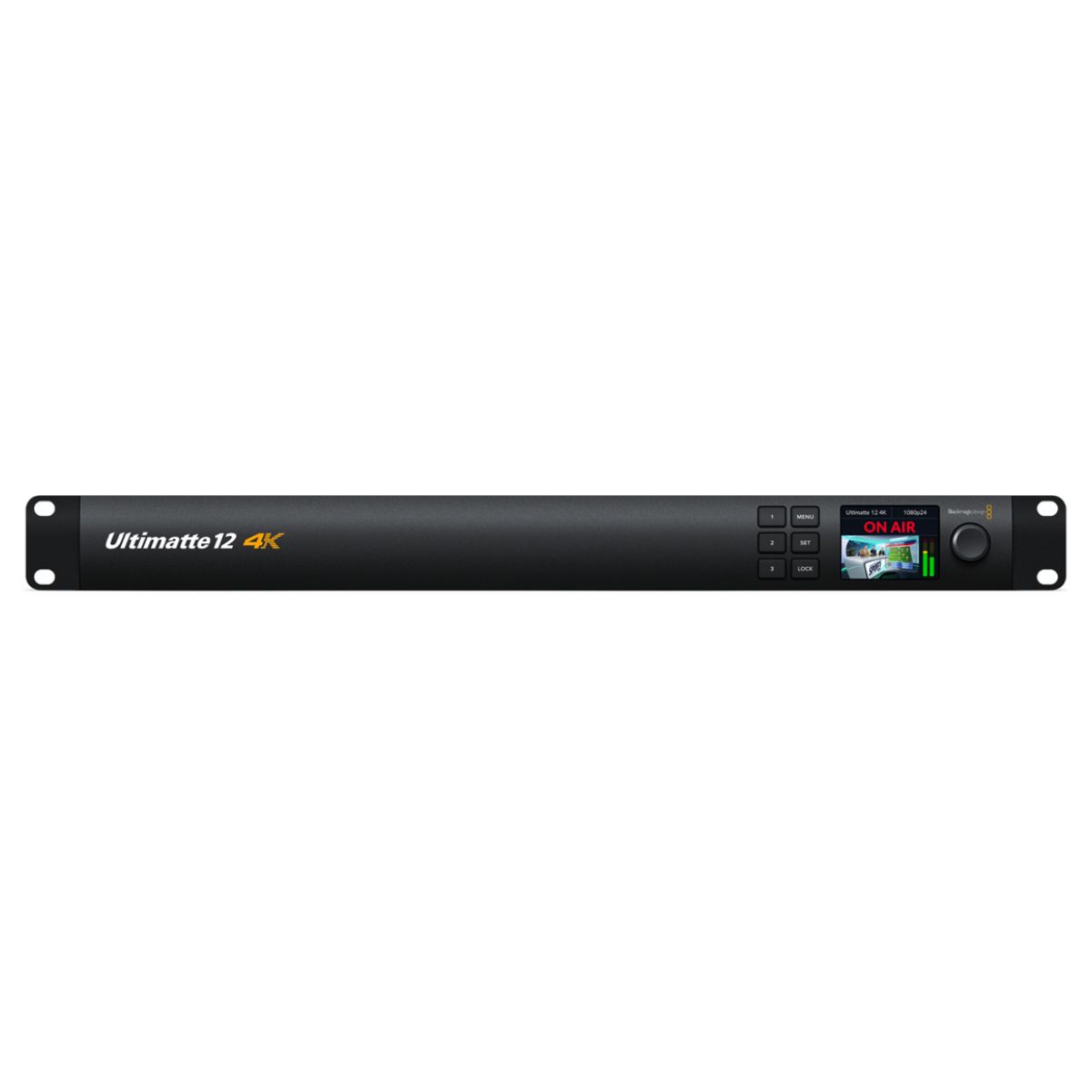

Ultimatte 12 4K is an advanced real-time compositing processor designed for keying live action video with next generation broadcast graphics, virtual sets, and more. Ultimatte 12 4K features new algorithms and color science, incredible edge handling and color separation, amazing color fidelity, and better spill suppression than ever before. The high-performance 12G-SDI design gives you the power to work in Ultra HD and HD with sub-pixel processing for an amazing image.
Standards
|
SD Video Standards |
525i59.94 NTSC, 625i50 PAL |
|
HD Video Standards |
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50,1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
|
Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
|
SDI Compliance |
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2110-20, SMPTE 2110-21, SMPTE 2110-30, SMPTE 2110-40 |
|
Video Sampling |
4:2:2 |
|
Color Precision |
10-bit |
|
Color Space |
REC 601, REC 709, REC 2020. |
|
Multiple Rate Support |
Auto detection of SD, HD, 6G‑SDI and 12G‑SDI. |
Composite Outputs
|
Fill |
2 x 12G-SDI |
|
Matte |
2 x 12G-SDI |
|
Program |
2 x 12G-SDI, 1 x RJ45 Ethernet for SMPTE 2110 IP video |
|
Talent |
2 x 12G-SDI |
Connections
|
SDI Video Inputs |
8 |
|
SDI Video Outputs |
9 |
|
SDI Video Loop Outputs |
7 Reclocked SD, HD, Ultra HD for corresponding inputs. |
|
SDI Rates |
270Mb, 1.5G, 3G, 6G, 12G. |
|
ST 2110 Video Inputs |
1 |
|
ST 2110 Video Outputs |
1 |
|
Video Input Re-Sync |
On all inputs. |
|
Reference Connections |
1 x BNC In, 1 x BNC Out, 1 x RJ45 Ethernet Tri-Sync, Black Burst and PTP. |
|
GPIO |
DE15 |
|
Ethernet |
Up to 10Gb/s for SMPTE 2110 IP video in and out, device control and loading stills into Media Pool. |
|
Computer Interface |
1 x USB-C 3.0 for device configuration and software updates. |
