UHDS-OUT2-F16

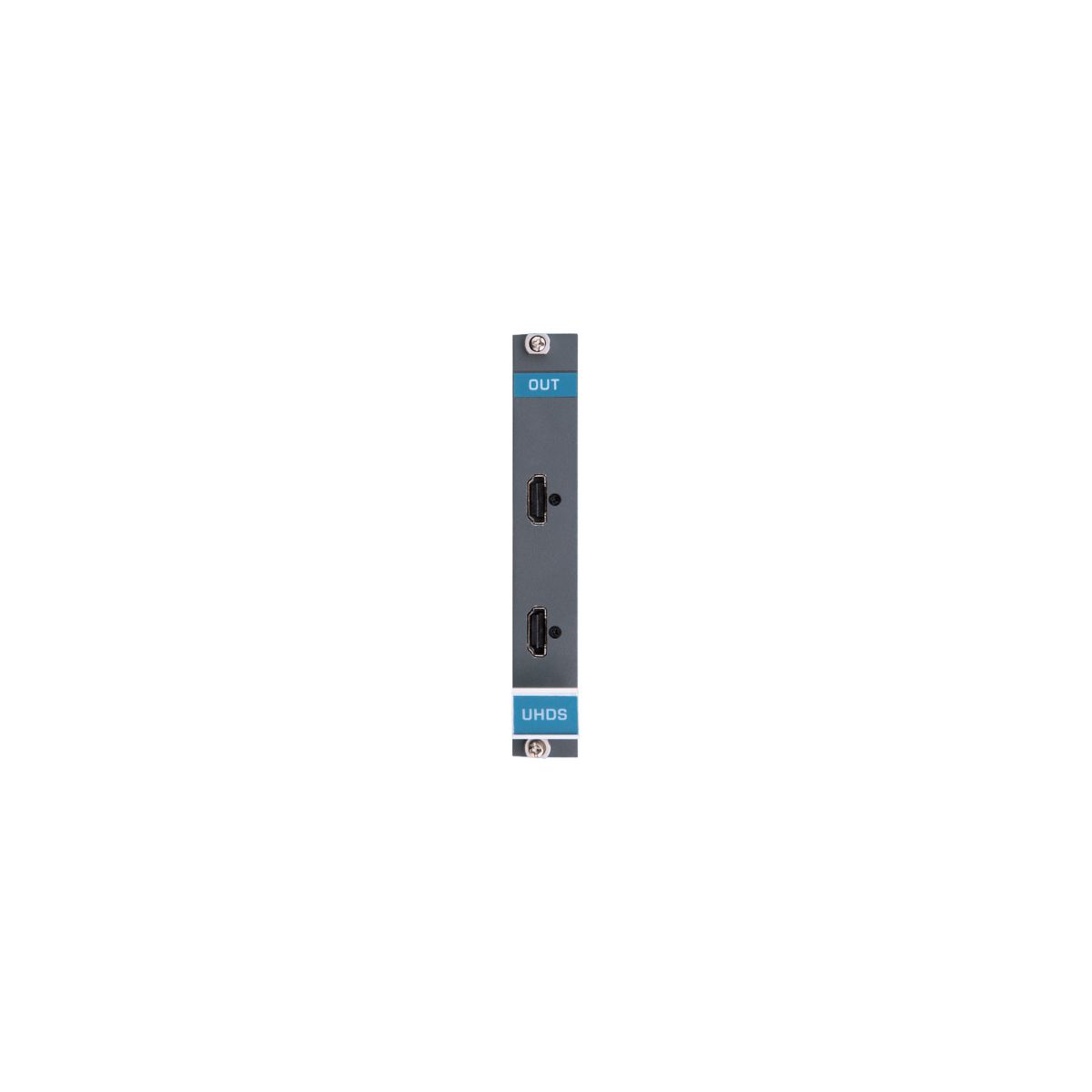

UHDS−OUT2−F16 is a two−channel HDMI scaler card for the VS−1616 Series Modular Multi−Format Digital Matrix Switchers. The card scales each output signal separately to a set resolution, aspect ratio, and color depth according to the native requirements of the screen or to a user setting.

Contact to Seller
  • Max. Data Rate — 8.91Gbps (2.97Gbps per graphic channel)
  •  Max. Scaled Output Resolution — 4K@30Hz (4:4:4)
  •  Max. Input Resolution — 4K@30Hz (4:4:4)
  •  HDMI, HDCP, EDID Support.
  •  Immediate Frame–to–Frame Switching Support.
Download Product catalog

Outputs
  • 2 HDMI: On female HDMI connectors

Video
  • Max. Data Rate: 8.91Gbps (2.97Gbps per graphic channel)
  • Max. Scaled Output Resolution: 4K@30Hz (4:4:4)
  • Max. Input Resolution: 4K@30Hz (4:4:4)
  • Switching Time Between Inputs: Less than 300ms (seamless)
  • Video Latency: Less than 3 frames

Extension Line
  • Max. Range: 15m (49ft) — 1080p 12 bit (deep color)

Power
  • Consumption: 22W

Environmental Conditions
  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: –40° to +70°C (–40° to 158°F)
  • Humidity: 10% to 90%, RHL non–condensing

STANDARDS COMPLIANCE
  • Safety: CE
  • Environmental: Complies with the appropriate requirements of RoHs and WEEE
