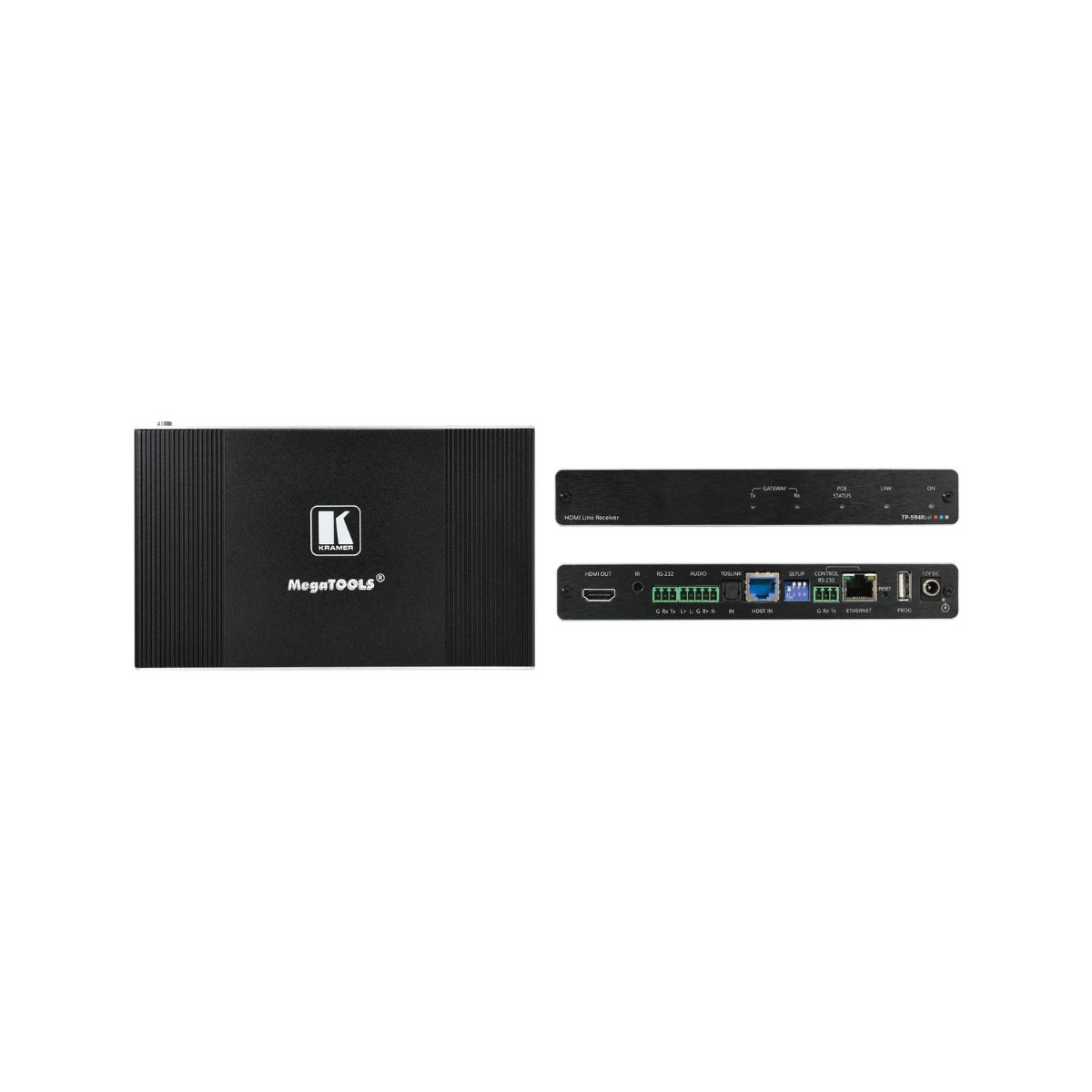

TP-594Rxr

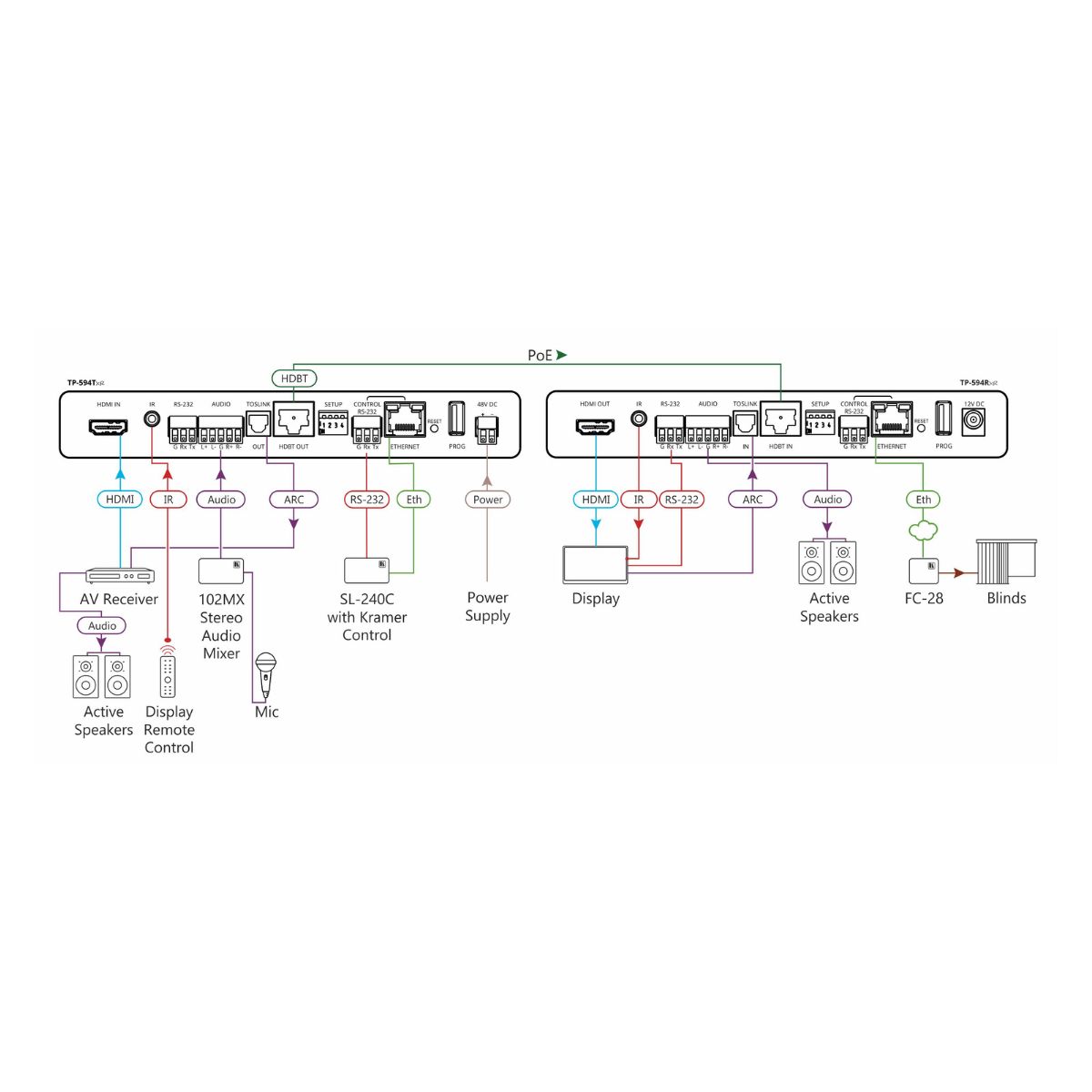

TP−594Rxr is a high−performance, extended−reach HDBaseT 2.0 receiver for 4K@60Hz (4:4:4) HDR, HDMI™, Ethernet, RS−232, IR, ARC (Audio Return Channel), and stereo audio signals over twisted pair. TP−594Rxr receives extended HDBaseT 2.0 signals and converts them back to HDMI, Ethernet, RS−232, IR, ARC, and stereo audio signals. It extends video signals up to 100m (330ft) over CAT copper cables at up to 4K@60Hz (4:4:4) 24bpp video resolution and provides even further reach for lower HD video resolutions.

Contact to Seller
  • Up to 100m (330ft) at 4K@60Hz (4:4:4)
  • Intelligent IP–driven control gateway
  • Compatible with standard HDBaseT 2.0 systems
  • ARC, Ethernet & control signal extension
  • PoE acceptor

Inputs
  • HDBT: On an RJ–45 connector
  • Optical (Digital Audio): On a TOSLINK® connector

Outputs
  • HDMI: On a female HDMI connector

Ports
  • Balanced Stereo Audio: On a 5–pin terminal block connector
  • Ethernet: On an RJ–45 female connector for device control and LAN extension

Extension Line
  • Compression: Low–level standard DSC compression for signals above 4K@60 (4:2:0)
  • 4K@60 (4:4:4) Range with Compression: Up to 100m (330ft)
  • 4K@60 (4:2:0) Range with No Compression: Up to 100m (330ft)
  • Full HD (1080p@60Hz) Range with No Compression: Up to 130m (430ft),
  • Full HD (1080p@60Hz) Range in Ultra−Long Mode: Up to 180m (590ft)

Video
  • Max Bandwidth with Compression: 17.95Gbps (5.98Gbps per graphic channel)
  • Max Bandwidth with No Compression: 10.2Gbps (3.4Gbps per graphic channel)
  • Max Resolution with Compression: 3840x2160@60Hz 4:4:4 24bpp

User Interface
  • Front Panel: Gateway activity detection, PoE status, HDBaseT link, and power LEDs
  • Rear Panel: DIP switches
