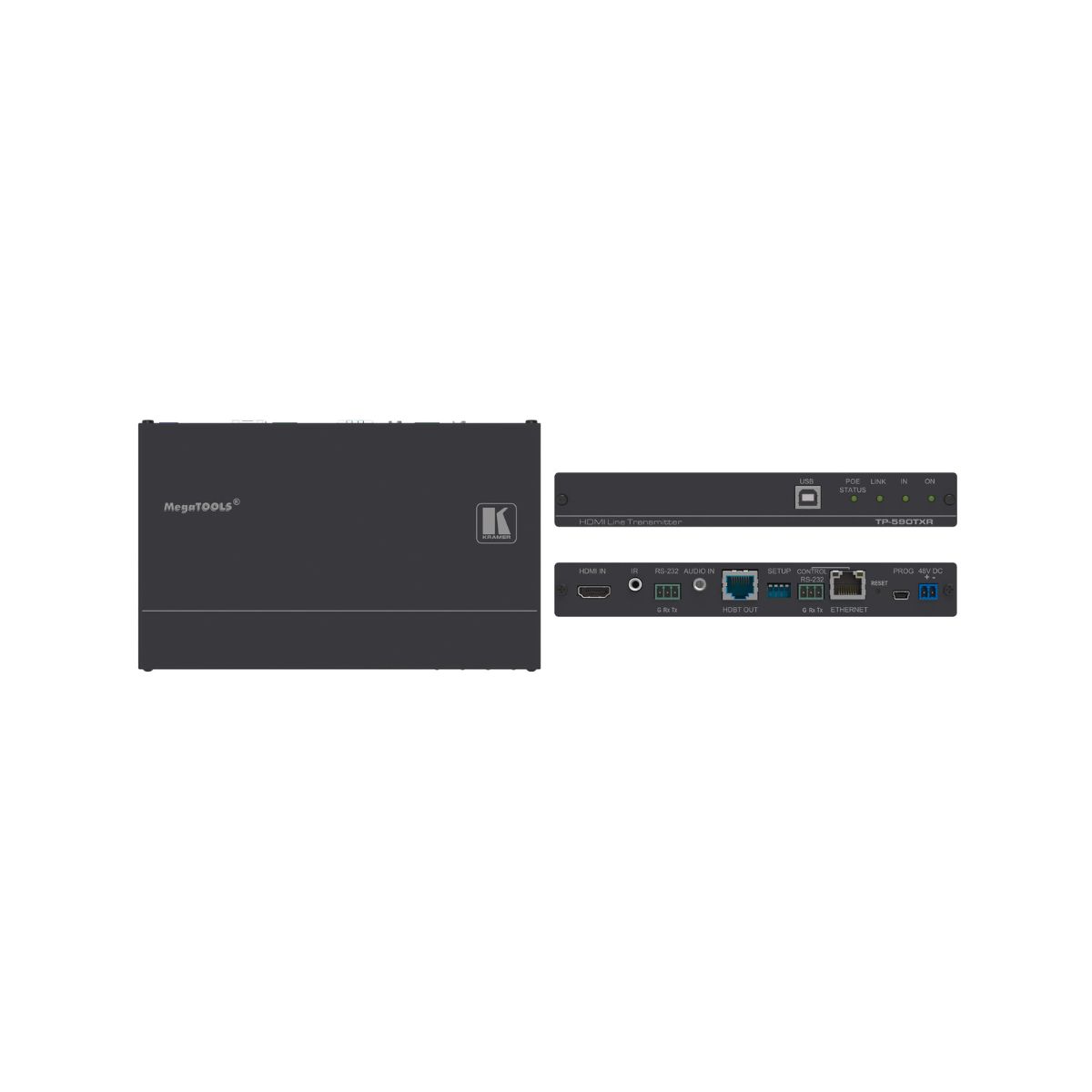

TP-590TXR

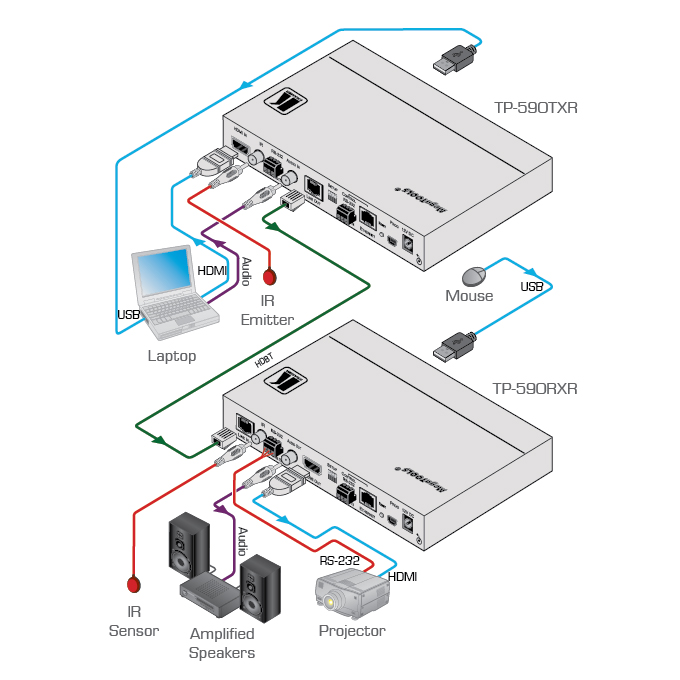

TP−590TXR is a high−performance, extended−reach HDBaseT 2.0 transmitter for 4K60Hz (4:2:0) HDMI, USB, Ethernet, RS−232, IR, and stereo audio signals over twisted pair. The TP−590TXR converts all input signals into the transmitted HDBaseT 2.0 signal. It extends video signals to up to 100m (330ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.

Contact to Seller
  • HDBaseT 2.0 transmitter
  • Up to 180m (590ft) at 1080p
  • Up to 100m (330ft) at 4K@60Hz (4:2:0)
  • Up to 4K@60Hz (4:2:0) 24bpp video resolution
  • USB, Ethernet & control signal extension
  • Stereo analog audio embedding (adding)
  • PoE provider

INPUTS
  • 1 HDMI on an HDMI connector,
  • 1 Stereo analog unbalanced audio on a 3.5mm mini jack

OUTPUTS
  • 1 HDBT on an RJ–45 female connector

PORTS
  • 1 IR on a 3.5mm mini jack for IR link extension,
  • 1 USB 2.0 on a USB–B connector,
  • 1 RS–232 on a 3–pin terminal block for serial link extension,
  • 1 RS–232 on a 3–pin terminal block for device control,
  • 1 10Base–T/100BaseTx Ethernet on an RJ–45 female connector for device control and network traffic extension

EXTENSION LINE
  • HDBaseT 2.0 compliant
  • Up to 100m (330ft) at 4K @60Hz (4:2:0)
  • Up to 130m (430ft) at full HD (1080p @60Hz 36bpp)
  • Up to 180m (590ft) at HDBaseT ultra mode and full HD (1080p @60Hz 24bpp)
  • Note: When using Kramer HDBaseT cables

VIDEO
  • Up to 10.2Gbps bandwidth (3.4Gbps per graphic channel)
  • Up to 4K UHD @60Hz (4:2:0) 24bpp resolution
  • HDCP 1.4 signal compliance
  • Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0

AUDIO
  • Up to 1 Vrms level
  • 0.03% THD + NOISE @ 1 KHz at nominal level
