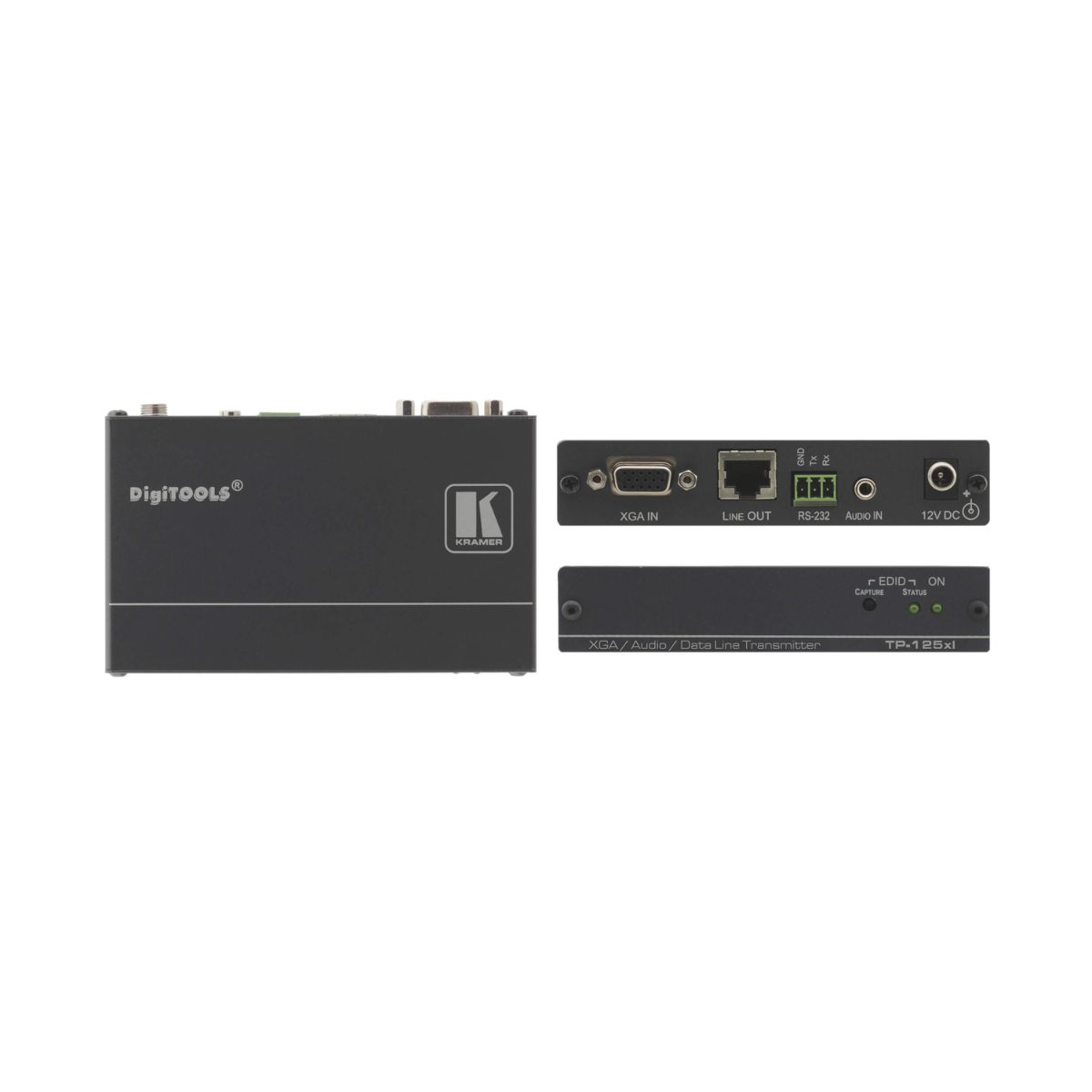

TP-125xl

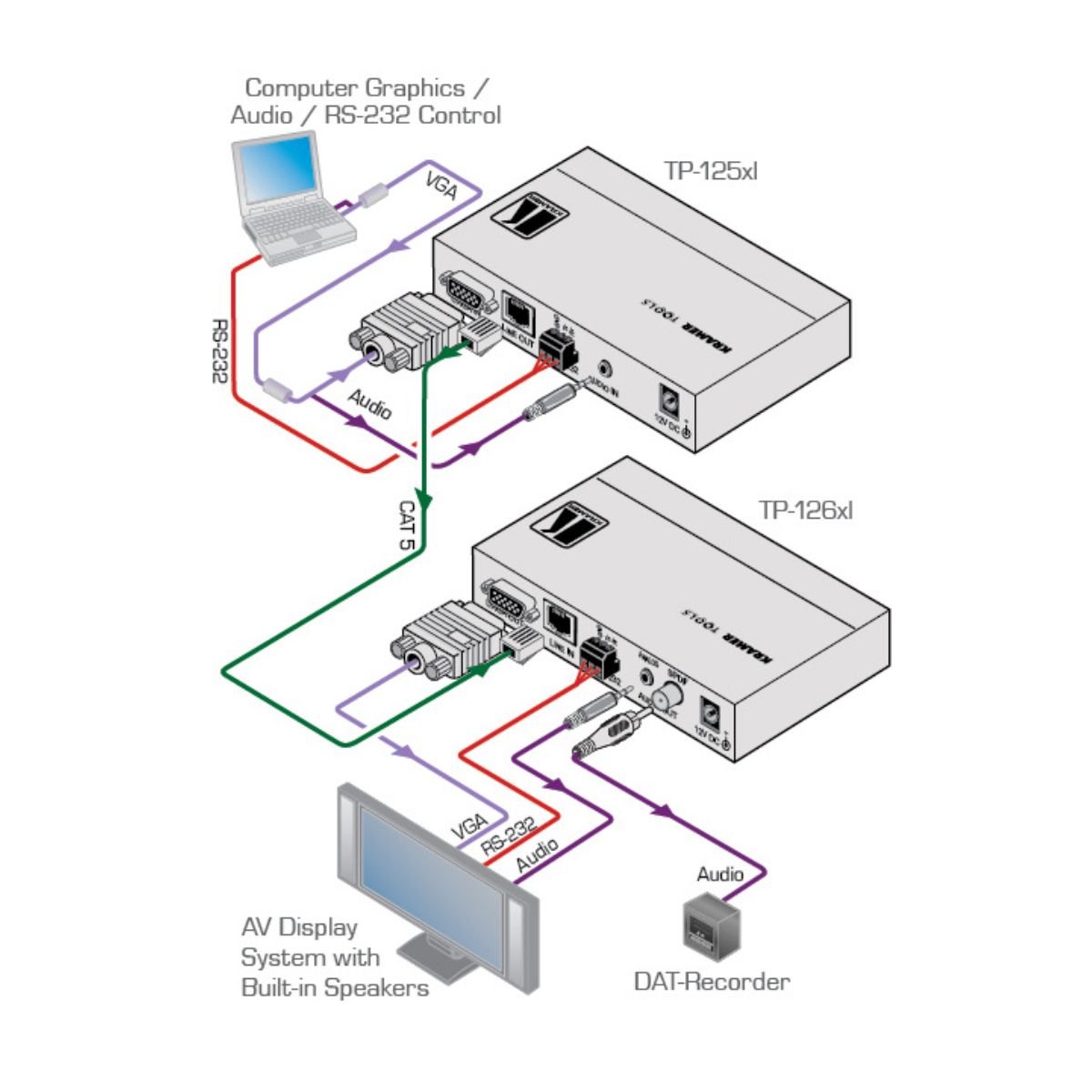

The TP−125xl is an extended range twisted pair transmitter for computer graphics video, unbalanced stereo audio, and bidirectional RS−232 control command signals. It converts the input signals to a twisted pair signal and transmits them over CAT 5 cable to a compatible receiver.

Contact to Seller
  • Max. Resolution — WUXGA & 1080p.
  •  HDTV Compatible.
  •  System Range — More than 820ft (more than 250m).
  •  EDID Capture — Copies and stores the EDID from a display device.
Download Product catalog

INPUTS
  • 1 computer graphics on a 15–pin HD connector, 1 unbalanced stereo audio on a 3.5mm mini jack, 1 bidirectional RS–232 on a 3–pin terminal block

OUTPUT
  • 1 twisted pair on an RJ–45 connector

RESOLUTION
  • Up to WUXGA and 1080p

RS-232 BAUD RATE
  • 9600 and 19200bps

RS-232 MODE
  • Full–duplex

AUDIO BANDWIDTH (-3dB)
  • 20Hz to 20kHz @–3dB
