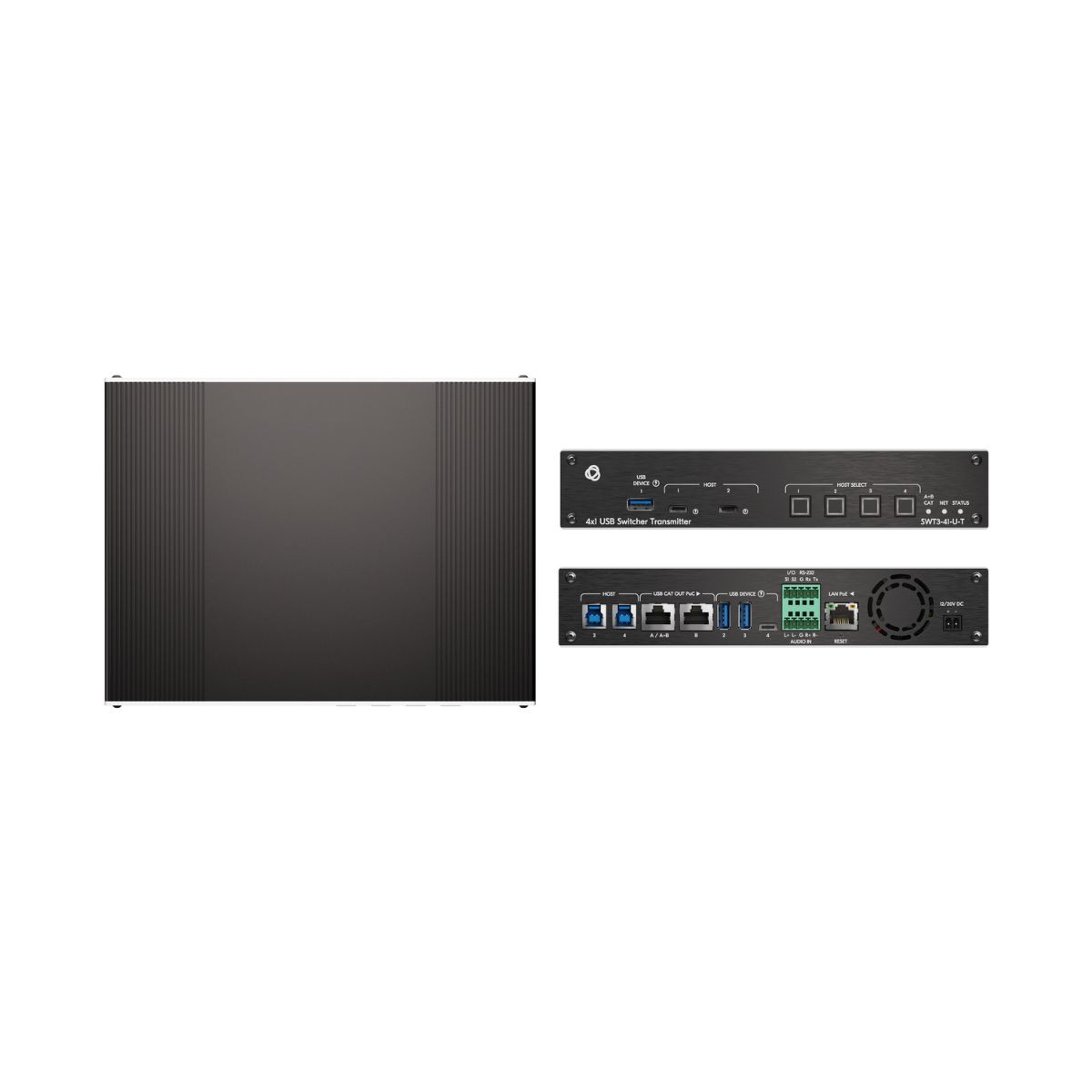

SWT3-41-U-T

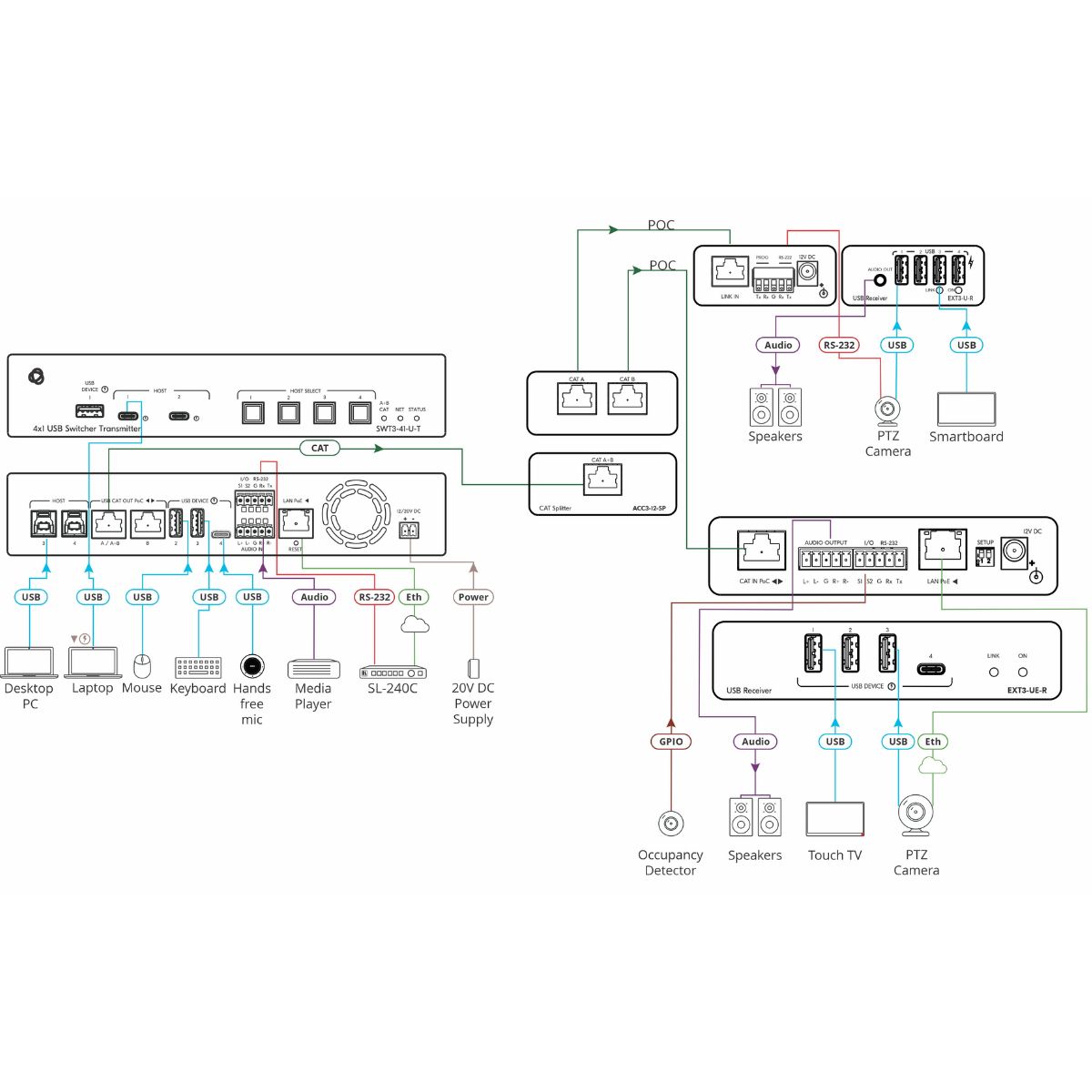

SWT3−41−U−T is a high−performance switcher transmitter with two USB−C and two USB−B ports for USB host devices connection and plug and play host user auto−switching experience based on active USB signal detection. The local and remote (over CAT−links) connected USB peripherals, such as a space camera and microphone, are switchable for use of the active USB host, for convenient online meeting participants' operation.

Contact to Seller
  • USB 3.2 host to devices switching
  • Dual–link USB 2.0 & LAN extension on 1 CAT cable
  • Built–in USB–C docking
  • PoE powering
  • Secured remote control and management
Download Product catalog

Hosts
  • 2 USB 3.2 & PD 3.0 Hosts: On USB type–C female connectors
  • 2 USB 3.2 Hosts: On USB–B female connectors

Devices
  • 3 USB 3.2 Devices: On USB–A female connectors
  • 1 USB 3.2 Device: On a USB Type–C female connector

Inputs
  • 1 Stereo Analog Balanced Audio: On a 5–pin terminal block for audio extension

Outputs
  • 2 CAT: On an RJ–45 female connector for extension line

Ports
  • 1 PoE-accepting Ethernet: On an RJ–45 female connector for LAN connection and extension over CAT links
  • 1 RS–232: On a 3–pin terminal block
  • 2 GPIO: On a 2–pin terminal block

USB Features
  • USB 3.2 Data Rate: Up to 10Gbps
  • Integrated USB Hubs: 2 [device 1 & 2 ports] or 1 [other device ports]
  • Standards Compliance: USB 3.2 GEN 2, 2.0, and 1.1
