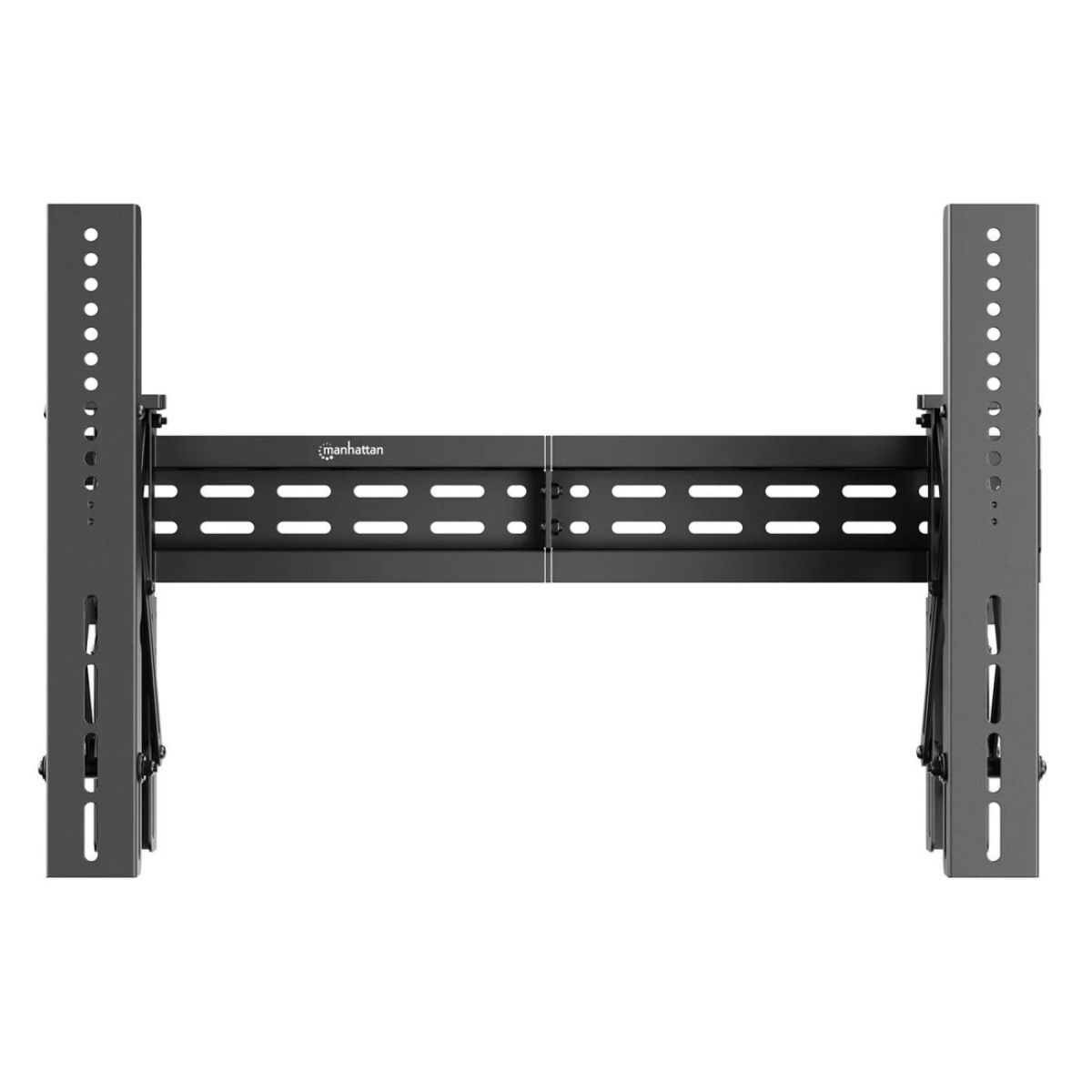

Support for 37" to 70" Video Wall with Pop-Out System
The Manhattan Adjustable Video Wall Mount provides a professional, stable solution for LCD/LED displays up to 70 kg (154 lbs.). Ideal for digital signage in retail, hospitality, and education, it features micro-adjustments for precise alignment and a pop-out design for easy installation and maintenance. It mounts screens just 78 mm (3 in.) from the wall, with optional extension up to 220 mm (8.7 in.) and ±3° post-installation leveling.
- Supports one flat 37" to 70" TV up to 70 kg (154 lbs.) for integration into a professional video wall installation

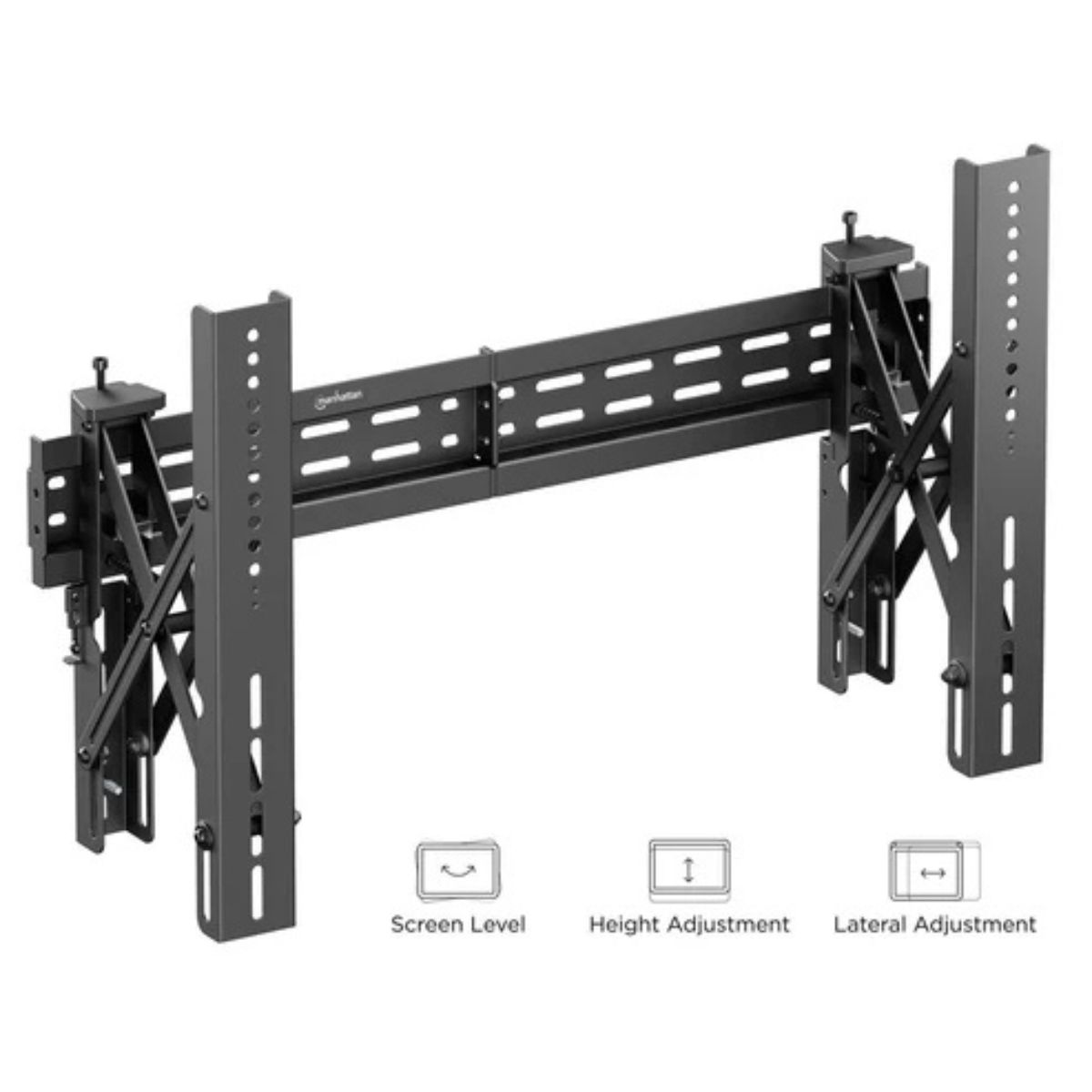

- Seamless display alignment with micro height and depth adjustments, plus lateral shift brackets for side-to-side positioning (X, Y, and Z axis)
- Optimized views with +/-3° post-installation leveling adjustment

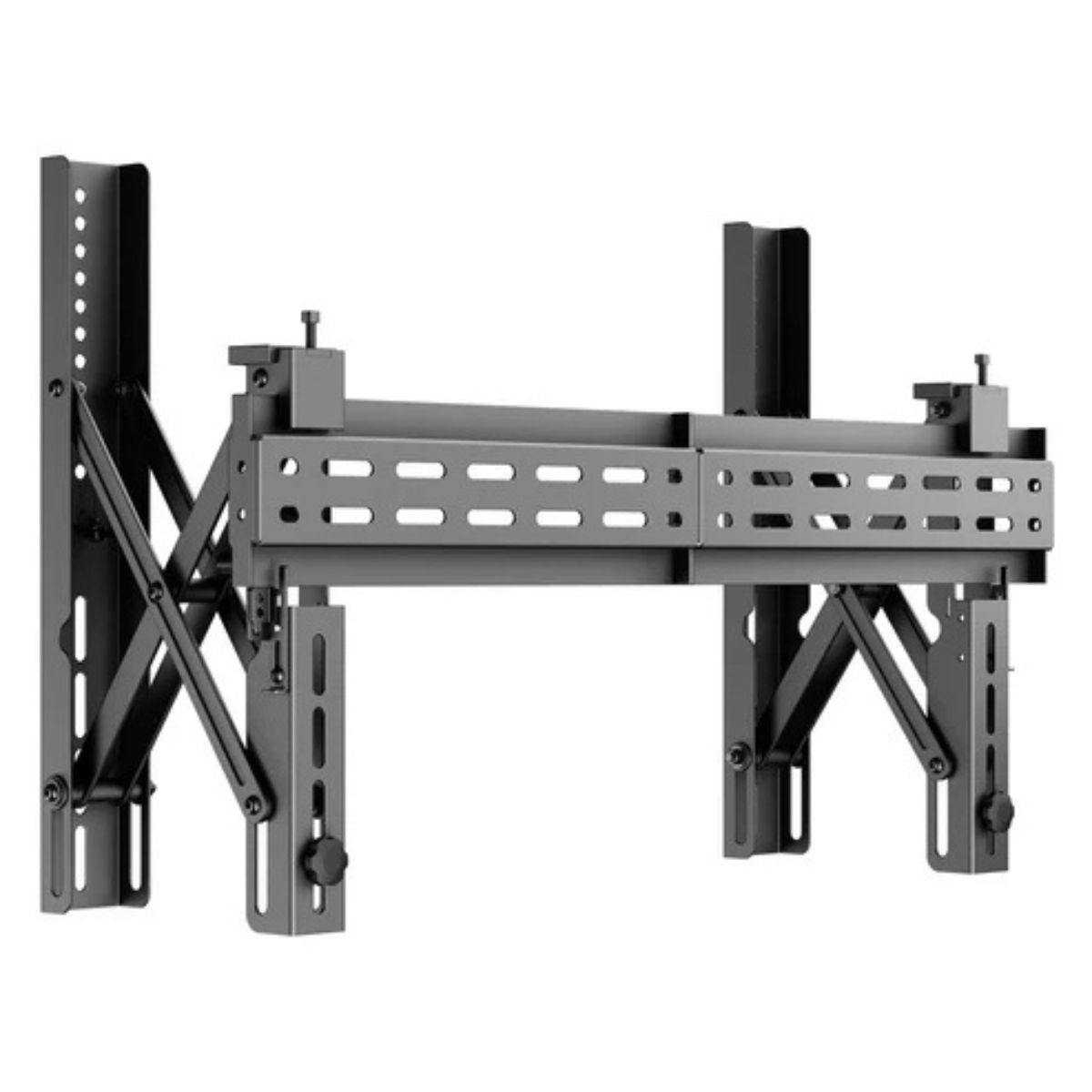

- Pop-out extension for easy display installation, adjustment, rear-screen access, maintenance, and replacement
- Anti-theft locking option, great for digital signage (requires padlock, not included)
- Holds TV 78 mm (3 in.) from wall and optionally extends up to 220 mm (8.7 in.)
- Pop-out lock system ensures secure positioning and prevents accidental release
- Extendable knobs on the back for enhanced stability against uneven walls
- Heavy-duty construction with 2 mm thick reinforced steel and powder coating
| Designed for most 37" - 70" flat screens |
| Weight capacity: 70 kg (154 lbs.) |
| Post-leveling adjustment: +/-3° |

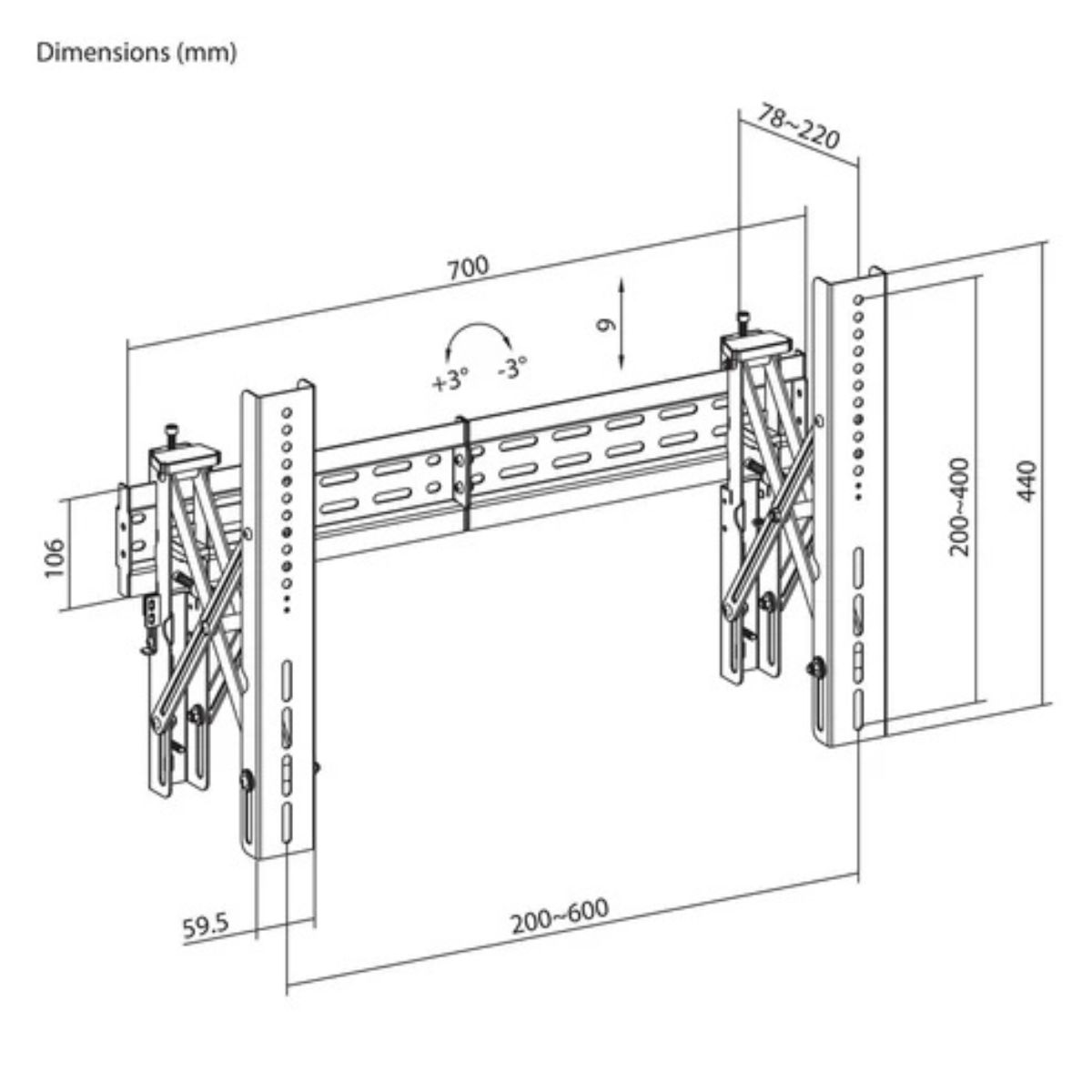

| Dimensions (L x W x H): 700 x 440 x 220 mm (27.56 x 17.32 x 8.66 in.) |
| Net weight: 5.4 kg (11.91 lbs.) |
| Gross weight: 6 kg (13.23 lbs.) |
| Materials: steel |
| VESA standards: 200x200 to 600x400 e.g. 200x200, 300x200, 400x200, 300x300, 400x300, 400x400, 600x400 |
