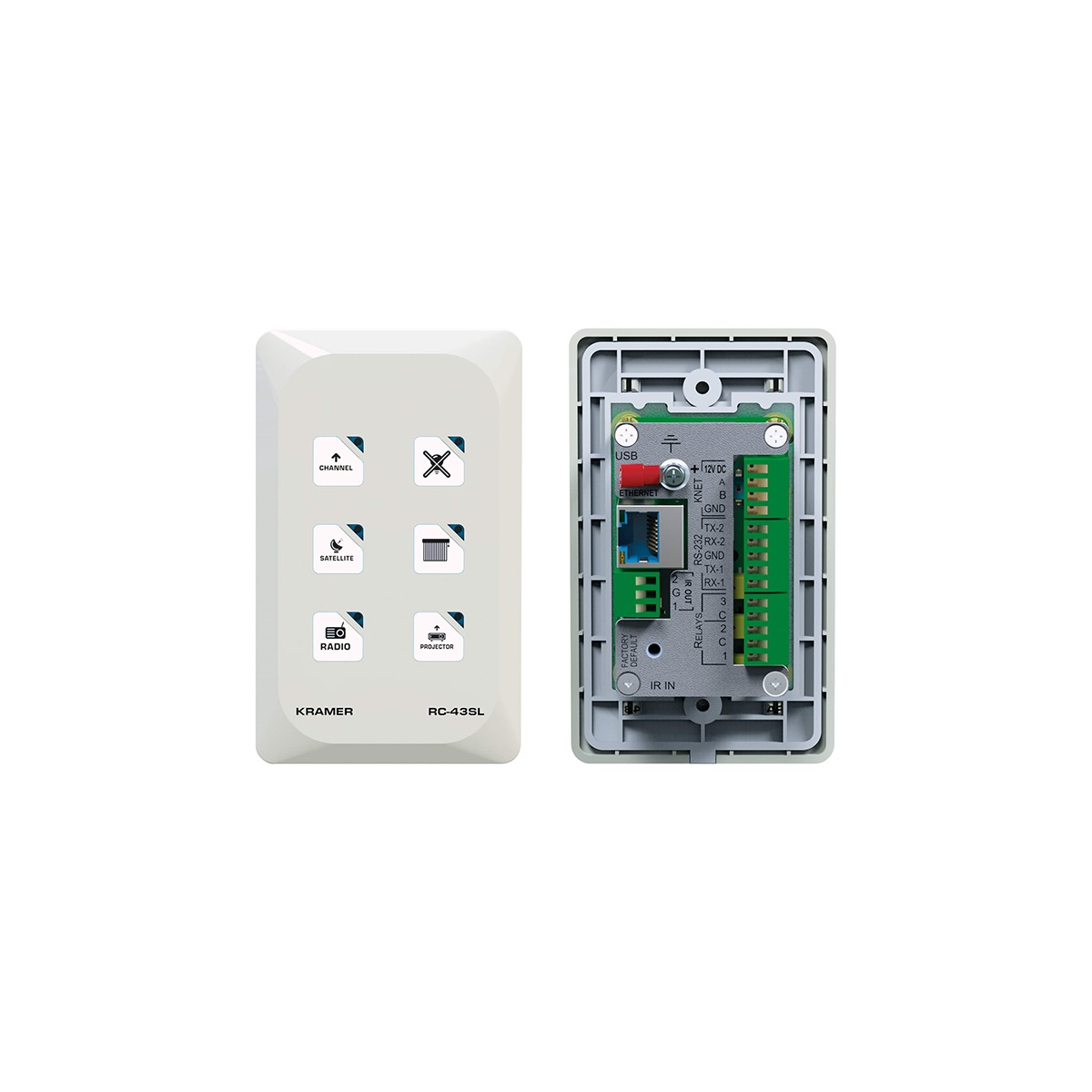

RC-43SL 6–button Touch–Sensitive Ethernet Control

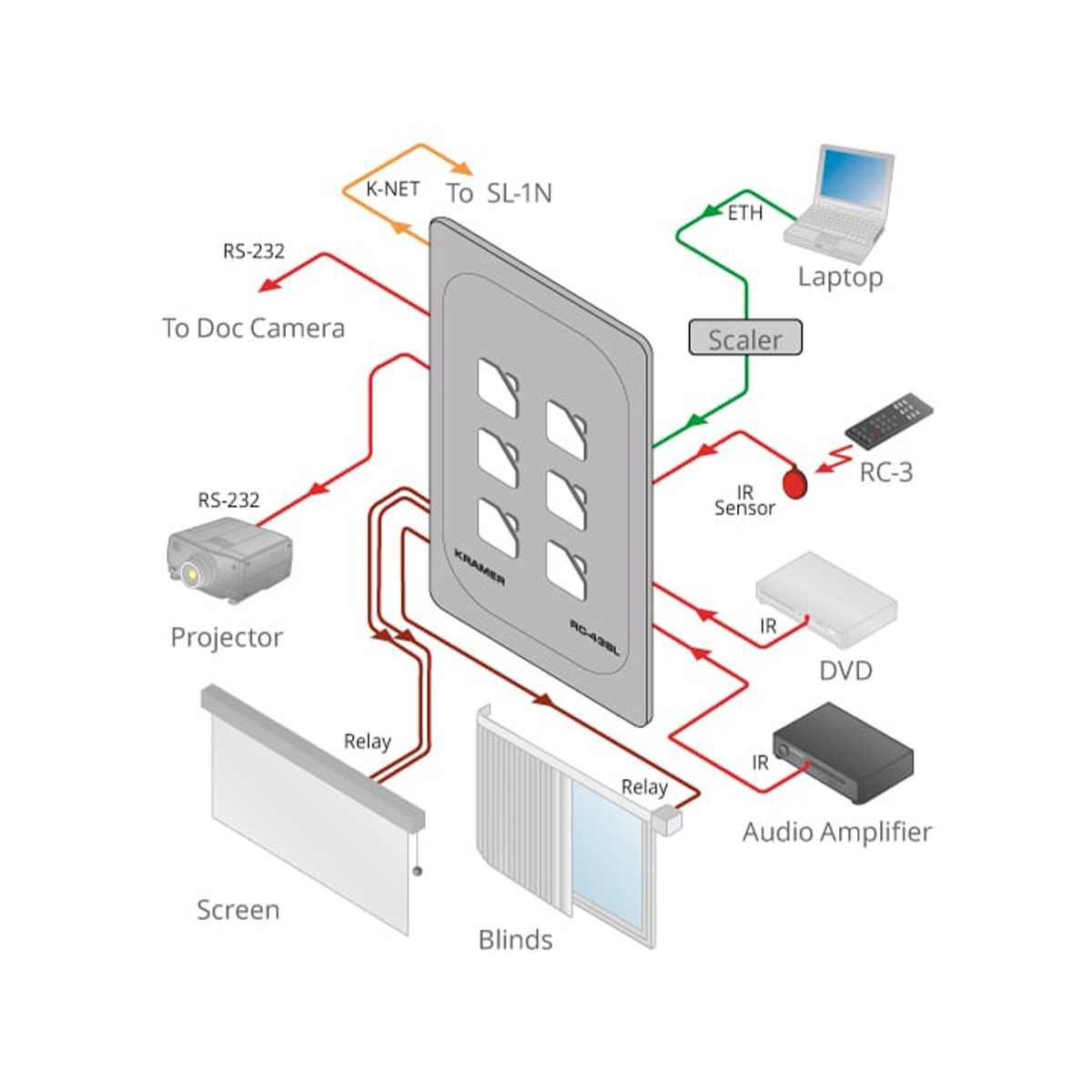

RC-43SL is a touch-sensitive 6-button control keypad designed for auditoriums and meeting rooms. It supports Ethernet connectivity with Kramer Site-CTRL for remote AV control and monitoring, plus K-NET connectivity for master controllers and auxiliary keypads. It can operate as a standalone controller or within multi-unit systems to manage AV equipment, screens, lighting, and shades.
- 6 white, touch–sensitive buttons
- Custom-labeled, removable button caps
- 1 Ethernet port
- 1 KNET™ port
- 2 Bidirectional RS–232 ports
- 2 IR emitter ports
- 3 Relay ports
| PORTS | 2 RS−232 and 1 K−NET on terminal block connectors, 1 Ethernet on an RJ−45 connector, 1 infrared sensor, 1 Mini USB for programming |
| OUTPUTS | 2 IR−out and 3 relays (36V AC or DC, 2A, 60V AC maximum on non−inductive load) on terminal block connectors |
| POWER CONSUMPTION | 12V DC, 100ma |
| OPERATING TEMPERATURE | 0° to +40°C (32° to 104°F) |
| STORAGE TEMPERATURE | −40° to +70°C (−40° to 158°F) |
| HUMIDITY | 10% to 90%, RHL non-condensing |
| INCLUDED ACCESSORIES | Power supply, mounting frame, labeled cap set, screwdriver |
| Product Dimensions | US: 6.90cm x 3.50cm x 11.43cm (2.72" x 1.38" x 4.50" ) W, D, H |
| Product Weight | US: 0.1kg (0.2lbs) approx |
| Shipping Dimensions | US: 25.60cm x 11.80cm x 11.40cm (10.08" x 4.65" x 4.49" ) W, D, H |
| Shipping Weight | US: 0.7kg (1.6lbs) approx |
