RC-306 6–button PoE and I/O Control

RC-306 is a compact 6-button control keypad compatible with standard US, European, and UK 1-gang wall boxes. It supports PoE through a single LAN cable and works with Kramer Control or as a standalone room controller using K-Config to manage AV systems, screens, lighting, and shades. Multiple keypads can connect via K-NET for power and communication.

Contact to Seller
  • 6 RGB–color, backlit buttons
  • PoE acceptor
  • Modular frames compatibility
  • Connectable to auxiliary KNET™ keypads
  • Supported by all Kramer control platforms
Download Product catalog
Inputs 1 IR Sensor: For IR learning
Outputs 2 IR: On 2−pin terminal block connectors

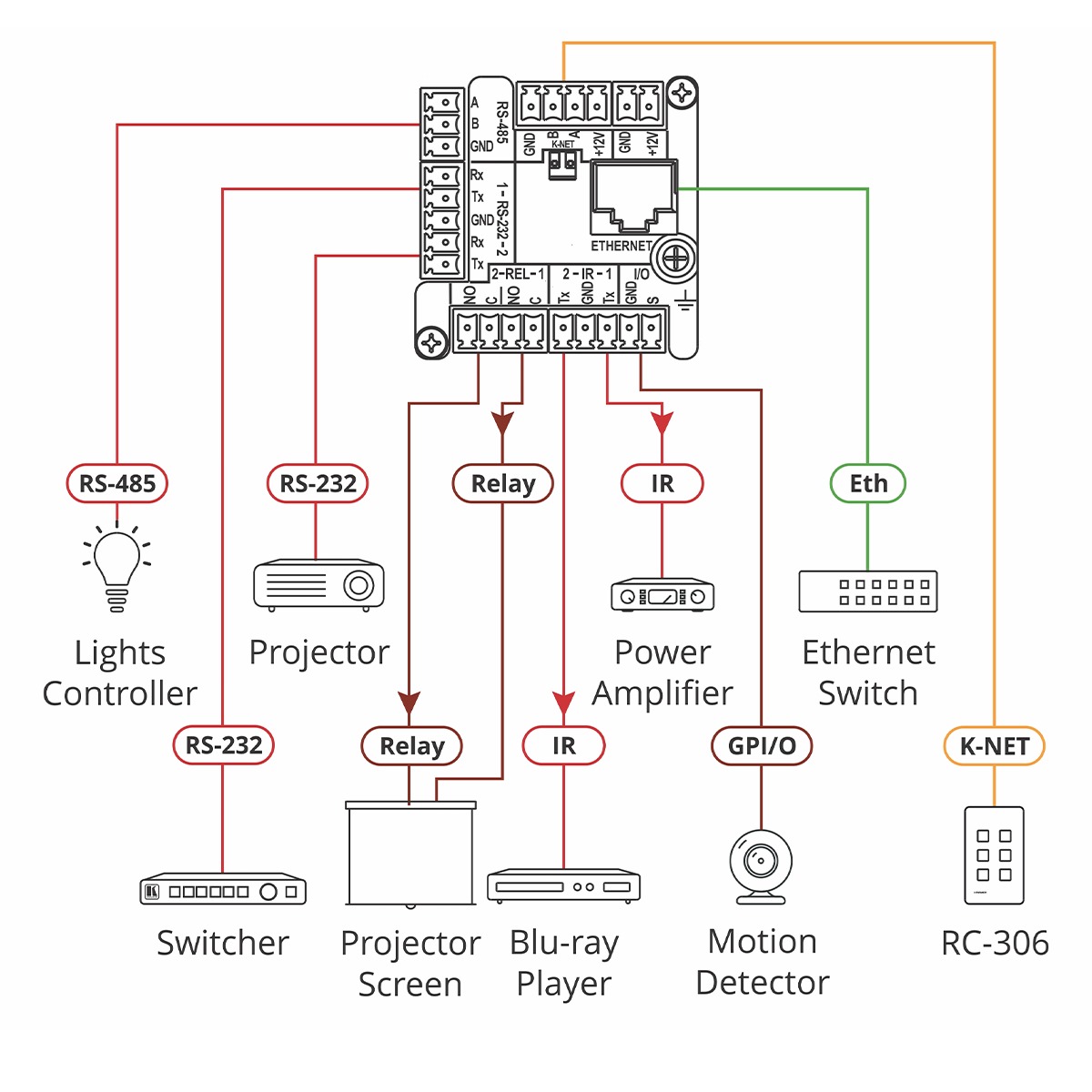

Ports

1 Ethernet: On an RJ−45 female connector for PoE, device configuration, control, and firmware upgrade

2 RS-232: On 3−pin terminal block connectors

1 RS-485: On a 3−pin terminal block connector

1 K-NET: On a 4−pin terminal block connector

2 Relays on 2-pin terminal block connectors (30V DC, 1A)
General Default IP Settings: DHCP Enabled
Power Source: PoE or 12V DC 2A power supply
Environmental Conditions Operating Temperature: 0° to +40°C (32° to 104°F)
