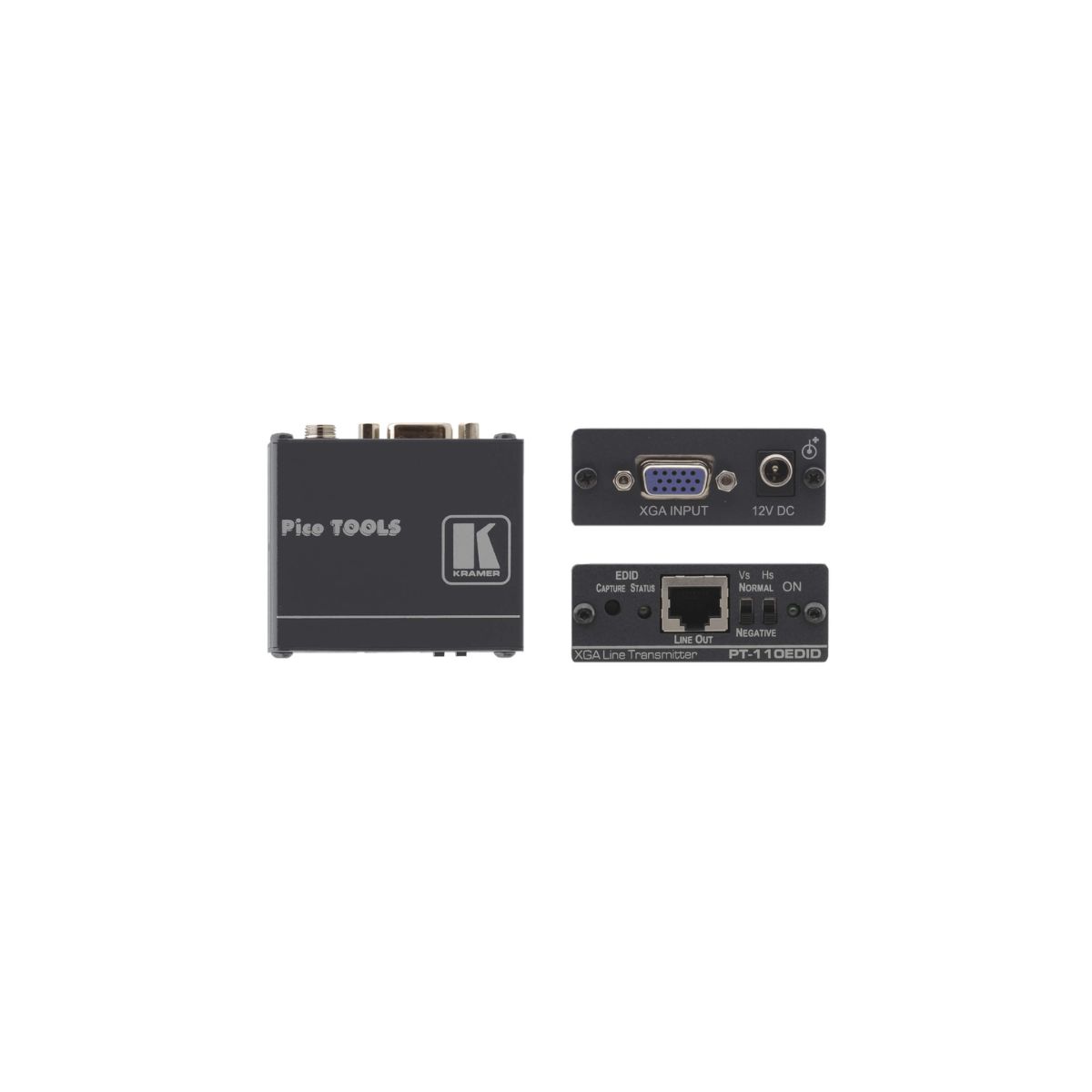

PT-110EDID

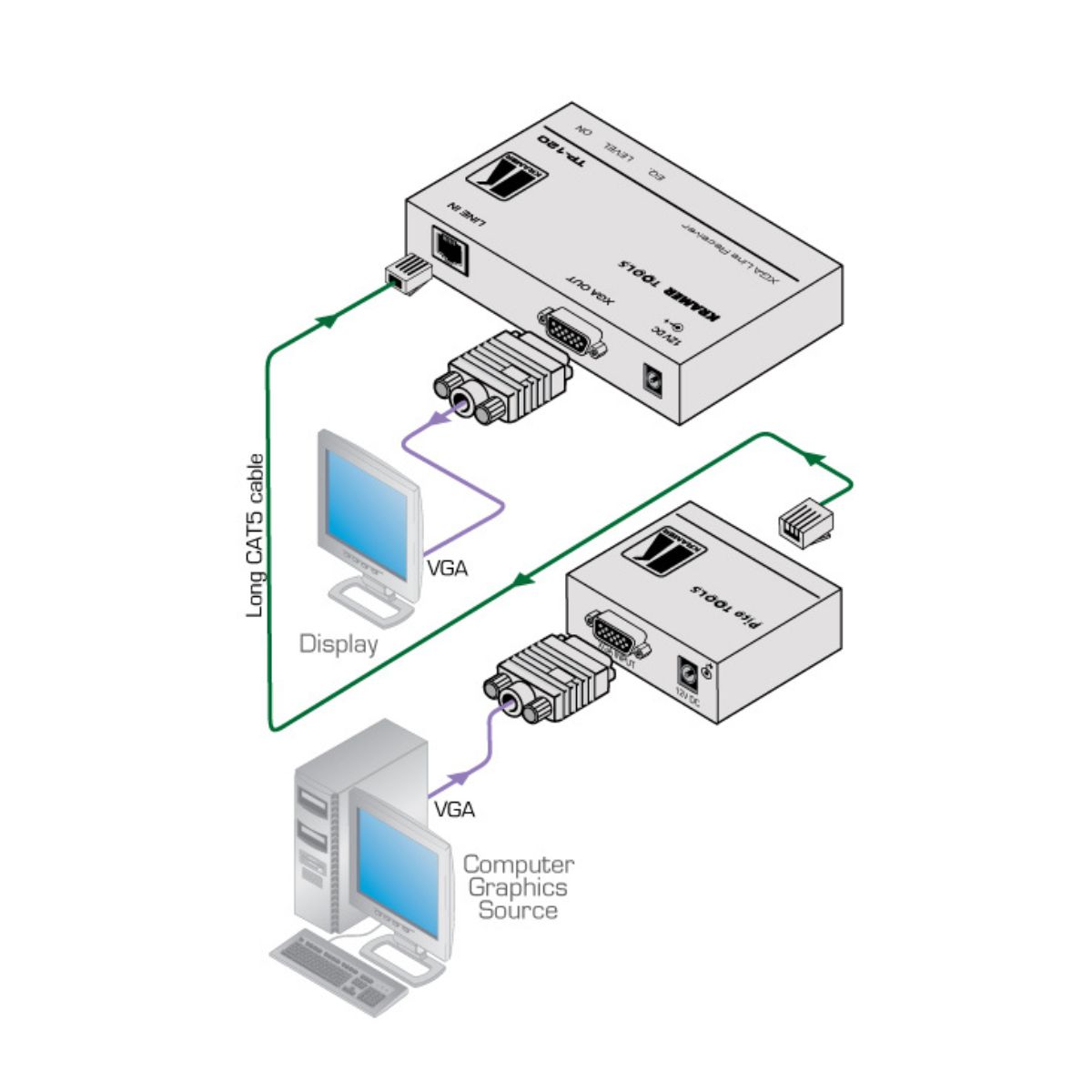

The PT−110EDID is a twisted pair transmitter for computer graphics video signals. It converts a computer graphics signal into a twisted pair signal that is converted back to a computer graphics video signal when used with a compatible receiver.

Contact to Seller
  • Max. Resolution — WUXGA & 1080p.
  •  HDTV Compatible.
  •  EDID Capture — Copies and stores the EDID from a display device.
  •  Sync Polarity Settings — H & V switches for improved display compatibility with the CAT 5 outputs.
  •  System Range — Up to 100m (320ft). Greater distances are possible depending on resolution and cable.

INPUT
  • 1 VGA/UXGA on a 15–pin HD connector

OUTPUT
  • 1 RJ–45 LINE OUTPUT connector

RESOLUTION
  • Up to WUXGA & 1080p

S/N RATIO
  • 69dB (worst case)

COUPLING
  • AC

POWER CONSUMPTION
  • 12V DC, 320mA
