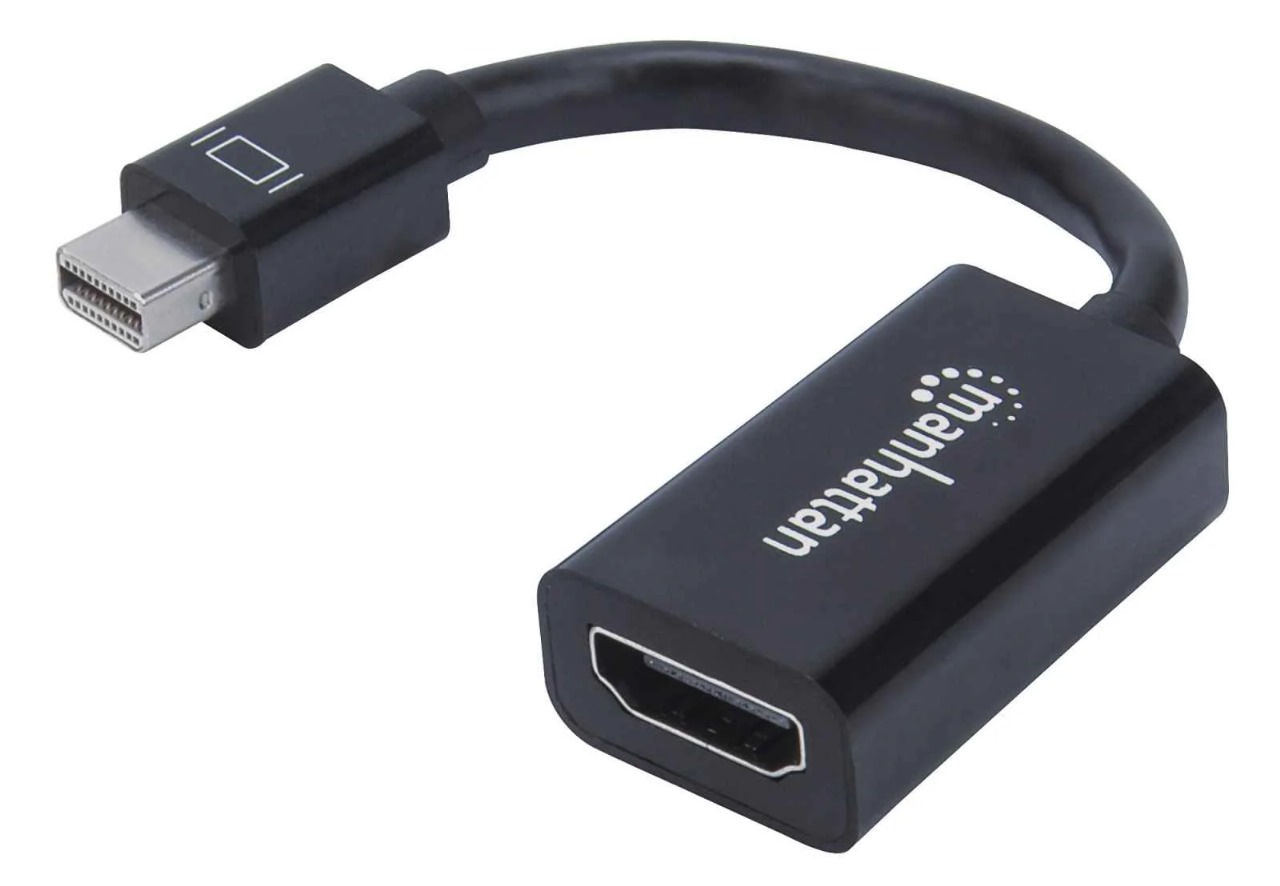

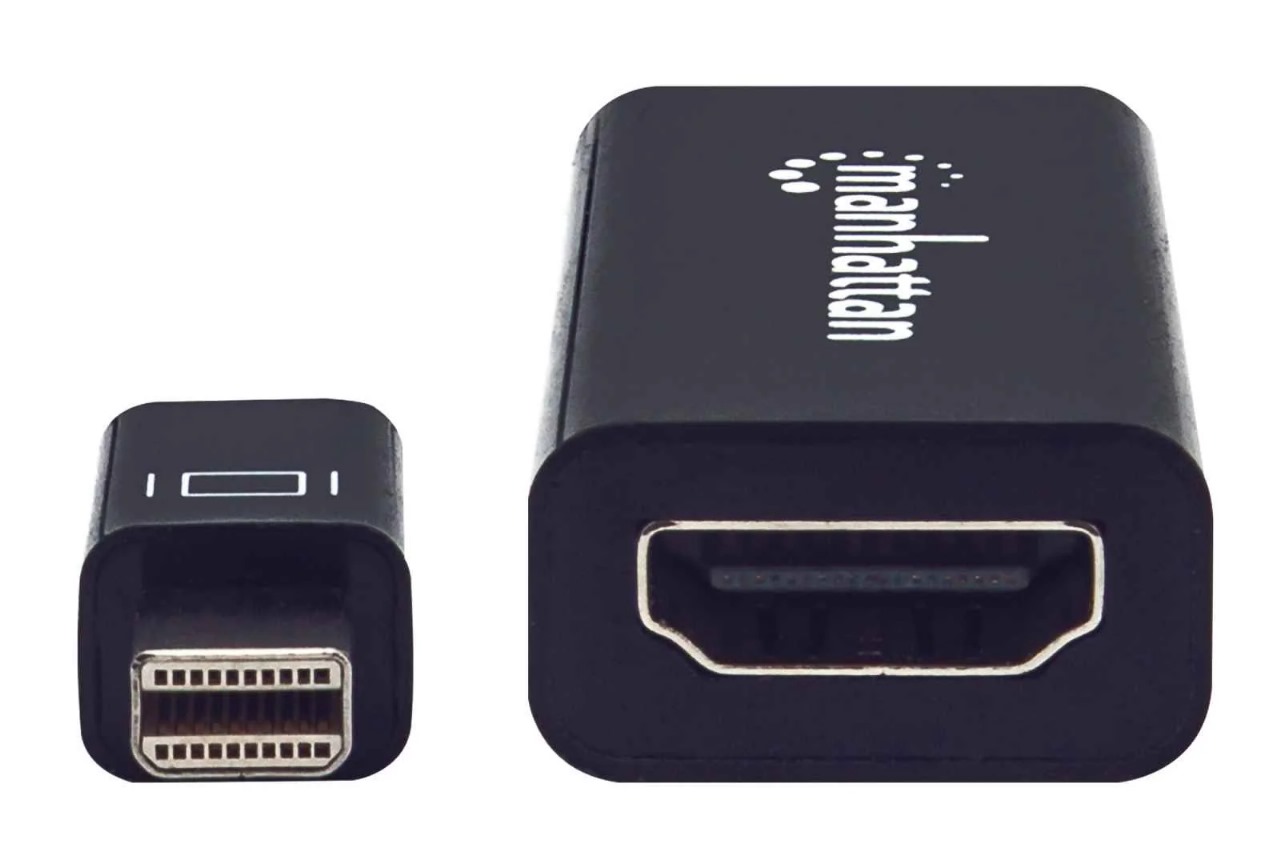

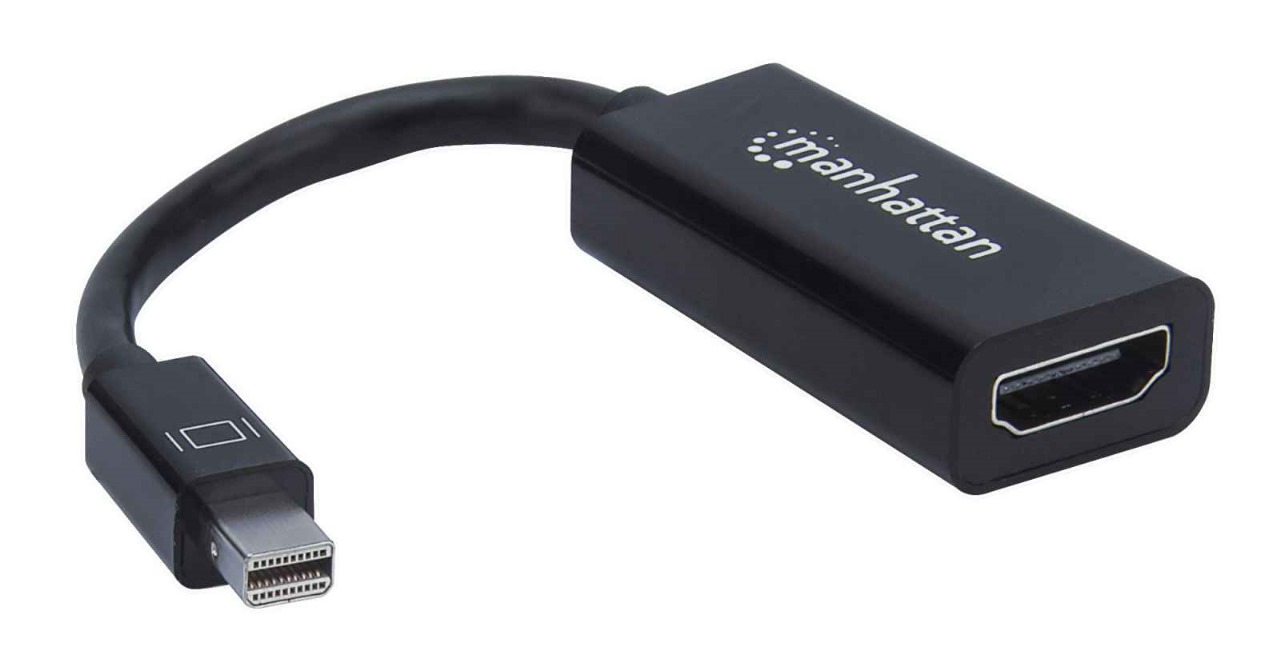

Passive Mini DisplayPort to HDMI Adapter (151528)

The Manhattan Passive Mini DisplayPort to HDMI Adapter connects Mini DisplayPort sources to HDMI displays with easy plug-and-play installation. It requires a DP++ (dual-mode) graphics card and provides a compact, reliable solution for presentations, retail displays, and multimedia applications.

Contact to Seller
  • Connects a Mini DisplayPort source to an HDMI display cable
  • Supports Deep Color, high-bandwidth 10.8 Gbps applications, and HD resolutions at 1080p@60Hz
  • Delivers a high-quality digital video and audio signal — ideal for using a new Mini DisplayPort source with an existing HDMI display
  • Requires DP++ (dual-mode) video/graphics cards to regenerate the signal and ensure the best connection to an HD monitor, projector, and more
  • Fully shielded to reduce EMI and other interference sources
  • Molded PVC boot and strain relief
Download Product catalog
8-bit and 10-bit Deep Color support
10.8 Gbps bandwidth
Maximum single link resolution: 1920 x 1200, 1080p
Auxiliary channel support: 1 Mbps
One-lane, one-direction, four-line connection support
Passive
Mini DisplayPort 20-pin male
HDMI 19-pin female
Nickel plated
Molded PVC boot
Shielded
30 AWG connectors
Shielding: Mylar and aluminum
Withstanding voltage: 300 VDC
