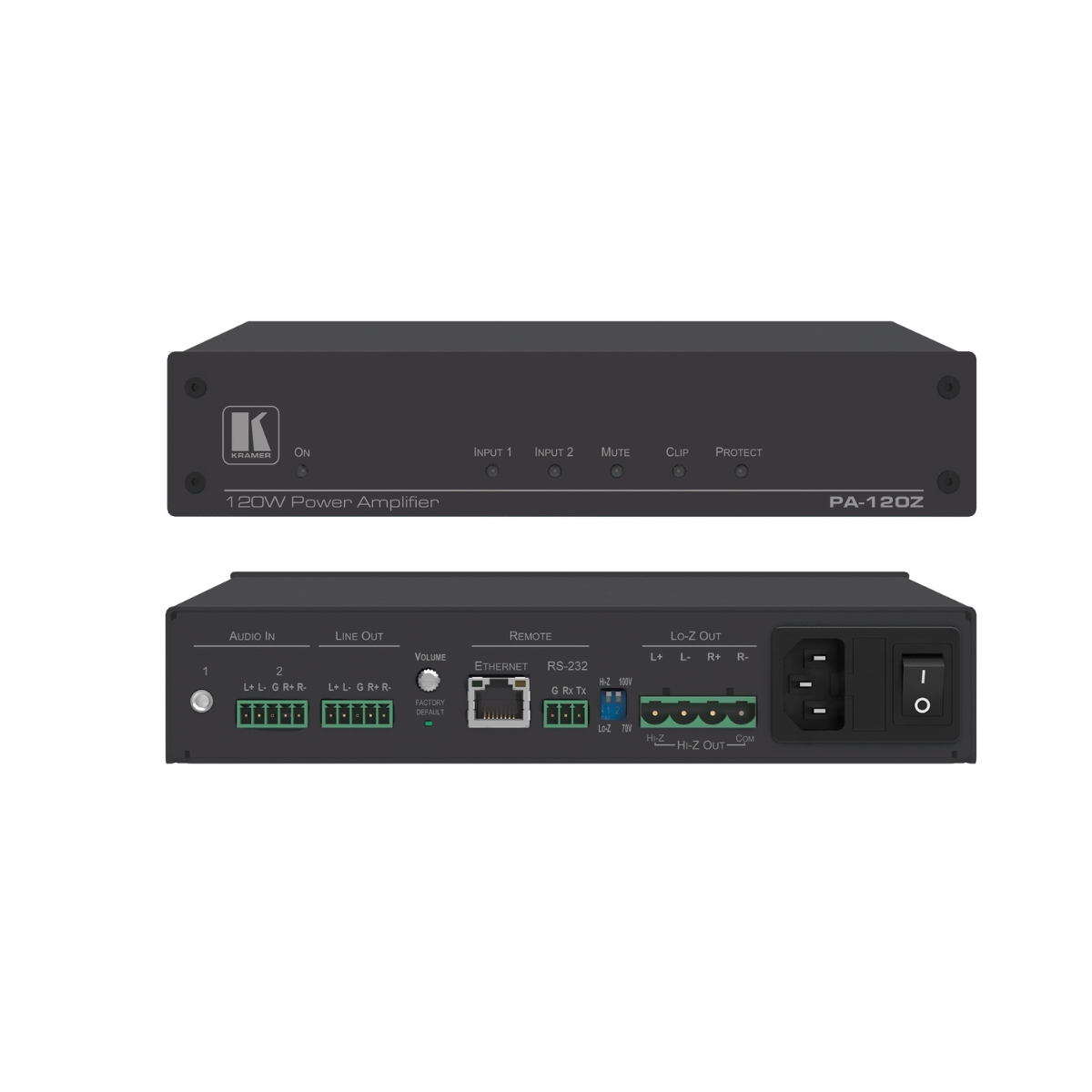

PA-120Z 120W Power Amplifier

The PA-120Z is a high-performance power amplifier supporting Hi-Z (70V/100V) and Lo-Z (4Ω/8Ω) outputs. It features balanced and unbalanced inputs, a line-level output, built-in DSP, and auto-standby. Its durable design makes it suitable for a wide range of AV installations.

Contact to Seller
  • 1 x 120W @ 70V/100V
  • 2 x 60W @ 4/8Ω
  • Line–level output
  • 2 Inputs with individual gain
  • Selectable high–pass filter
  • Controllable via RS–232 and IP
  • Auto standby
  • Built-in DSP
Download Product catalog
Inputs 1 unbalanced stereo on a 3.5mm connector; 1 balanced stereo +4dBu/10kΩ on a 5 pin terminal block
Outputs 1 balanced stereo line level on a 5−pin terminal block; 1 stereo or 1 mono speaker output on a 4-pin large terminal block
Input Sensitivity Attains full power @ 0.3V (–10dBV)
Output Power 2 x 60W @ 4Ω or 8Ω; 1 x 120W @ 70V or 100V
Amplifier Type Class D
Maximum Voltage Gain 26dB SE / 32dB BTL
Dynamic Range 119dB
Frequency Response 20Hz to 20kHz @ +/−1dB
S/N Ratio 80dB −10dBV, 20 Hz − 20 kHz
Controls Screw trimmer amplifier attenuator, IP and RS−232
