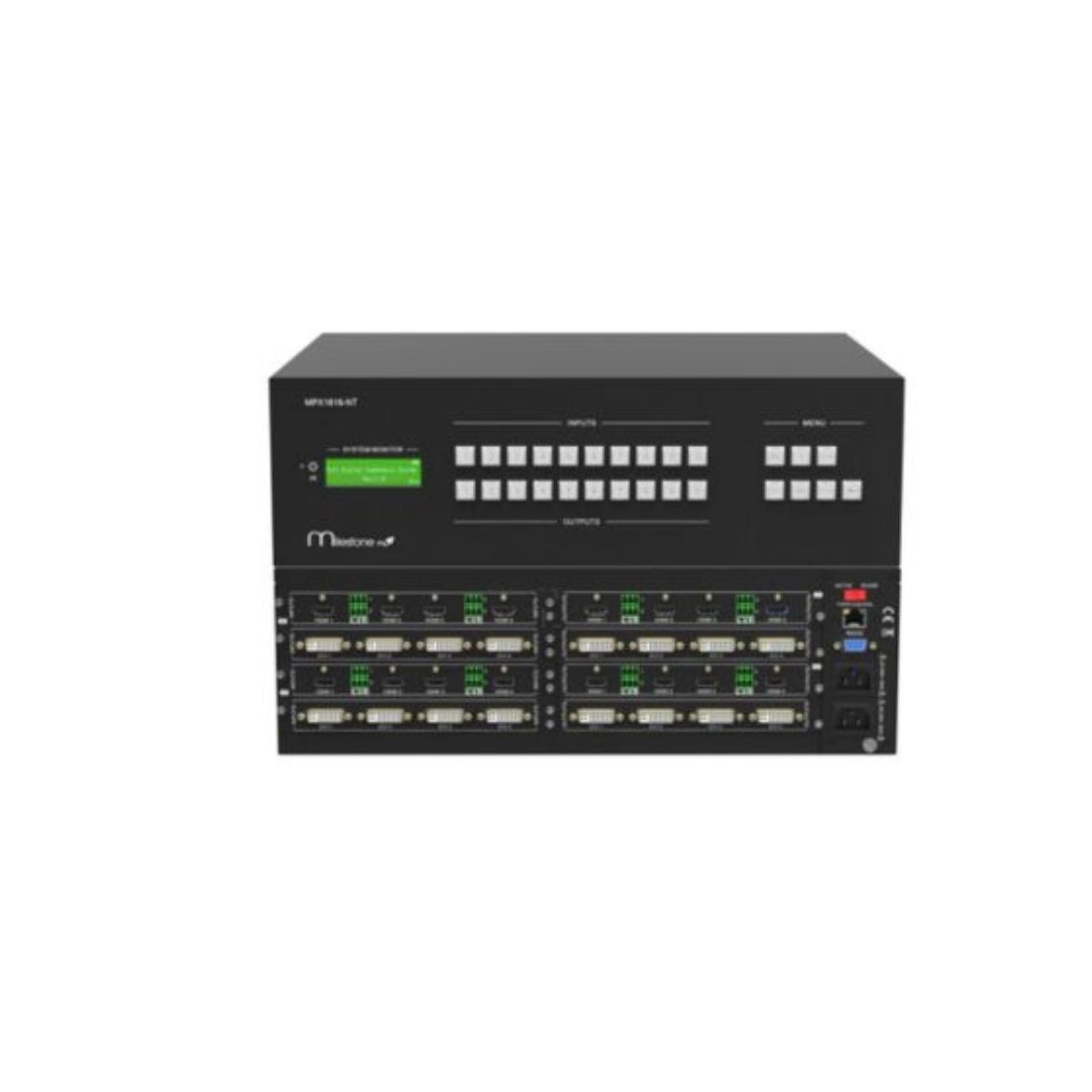

MPX1616-NT

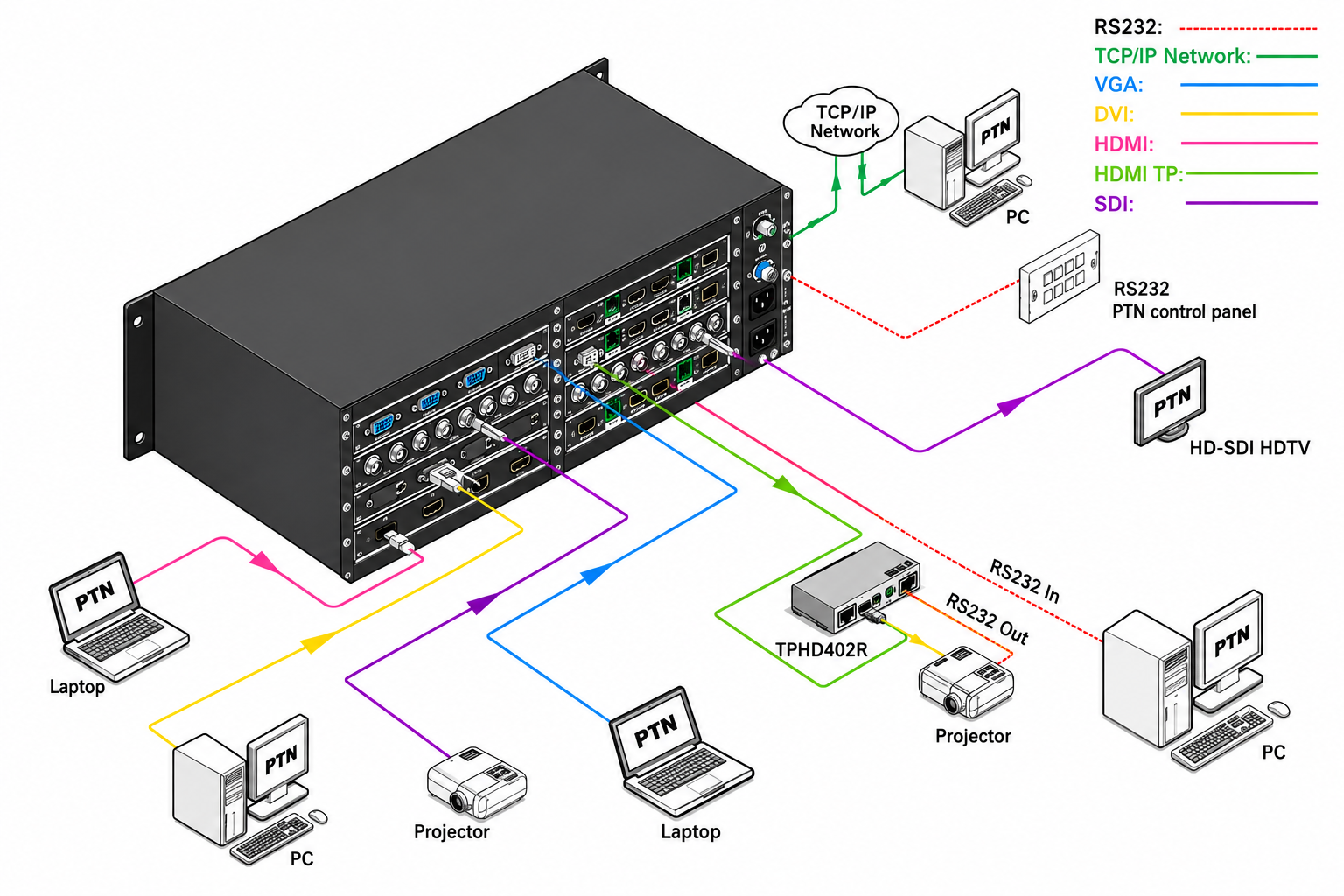

The product is a high-performance video and audio modular matrix switcher supporting a maximum of 16 input signal sources and 16 output displays synchronously. It supports different video signals with cross-switching. Every video or audio signal is transmitted and switched independently to decrease signal attenuation. The matrix supports various changeable cards, including HDMI, DVI, VGA, SDI, and HDBaseT. Users can choose to insert a different signal card for different applications

Contact to Seller

  • Modular chassis with configurable I/O slots, ranging from 4x4 to 16x16.

  • Various I/O cards, including HDMI, HDBaseT, SD/HD/3G-SDI, DV, I, and VGA cards (Compatible with YUV, YC & CVBS), to configure any matrix

  • Truly cross-point switching, any input to any output, regardless of signal format.

  • Supports HDMI1.4 and 1080P 3D

  • Integrated HDBaseT technology.

  • Controllable via button, RS232 & optional TCP/IP, also compatible with 3rd parties control.

  • HDCP compliant.

  • LCD display.

Download Product catalog
Serial Control Port RS-232, 9-pin female D-connector
Configuration 2 = TX, 3 = RX, 5 = GND
Installation Rack Mountable
Front Panel Control Buttons
Option TCP/IP control
Power Supply 100VAC ~ 240VAC, 50/60Hz
Power Consumption 31W (Max, no load)
Operation Temperature -10℃ ~ +55℃
Storage Temperature -25℃ ~ +70℃
Relative Humility 10%-90%
Dimension (W*H*D) 483mm x 133mm x 320mm (3U high)
Net Weight About 5KG (No signal card)
