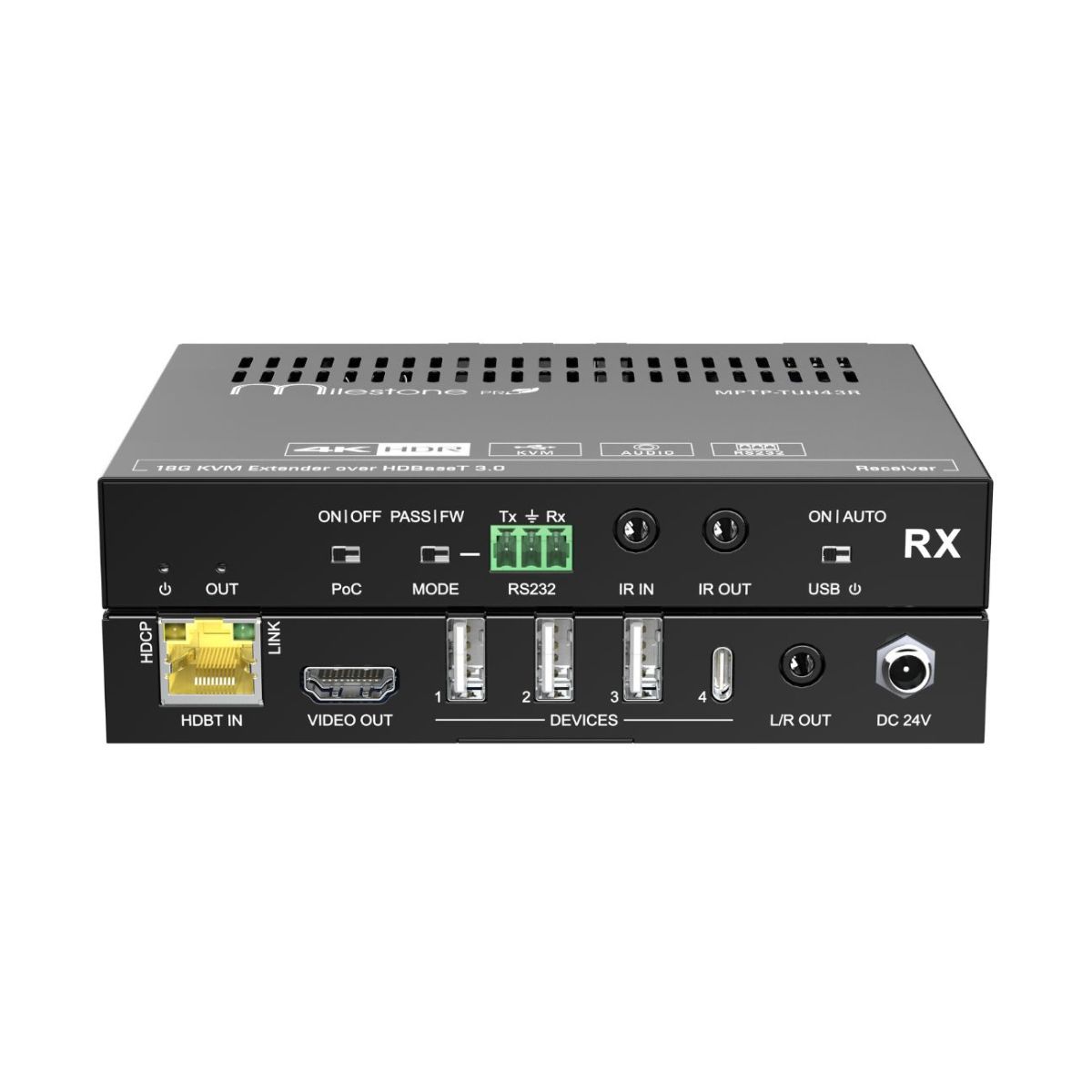

MPTP-TUH43R

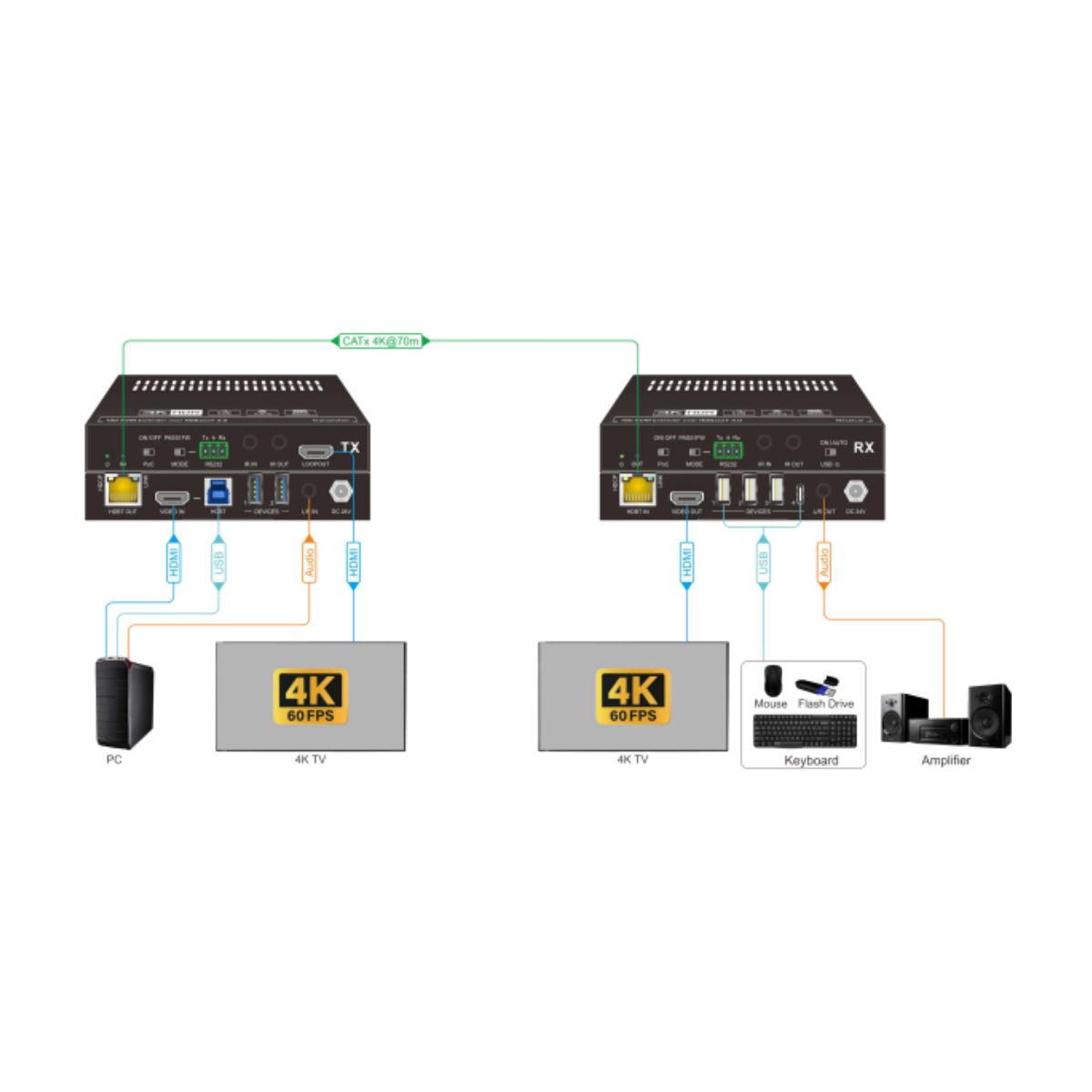

Thanks for choosing the 18G KVM Extender Receiver. It can transmit up to 40 m at 4K@60Hz and 70m at 4K@30Hz via a CAT6A cable. It supports audio pass-throughandtwo-way IR, USB extend and RS232 pass-through. 24V PoC feature allows the transmitter and the receiver to be powered from each other, and only one power adapter is needed in system

Contact to Seller
  • 18Gbps high bandwidth, HDMI V2.0
  • HDMI video resolution up to 4K@60Hz 4:4:4, HDR10, Dolby Vision.
  • Supports transmitting up to 40m at 4K@60Hz and 70m at 4K@30Hz.
  • Two-way IR and RS232 pass-through
  • Supports two-way 24V PoC
  • Supports audio pass-through.
Download Product catalog
Input (1) HDBT IN
Input Connector (1) RJ45
Input Resolution Up to 4K@60Hz 4:4:4
Output (1) VIDEO OUT
Output Connector (1) Type-A female HDMI
Output Resolution Up to 4K@60Hz 4:4:4

Audio

Output (1) L/R OUT
Output Connector 1) 3.5mm jack
Audio Format 3.5mm Audio: PCM 2CH
Frequency Response 20Hz ~ 20KHz, ±3dB
Max Output Level 2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV(316mV) nominal consumer line level signa
THD+N < 0.05% (-80dB), 20Hz~20KHz bandwidth, 1kHz sine at 0dBFSlevel (ormax level)
SNR > 85dB, 20Hz-20kHz bandwidth
Crosstalk Isolation > 70dB, 10kHz sine at 0dBFS level (or max level before clipping)
L-R Level Deviation < 0.3dB, 1kHz sine at 0dBFS level (or max level before clipping)
Frequency Response Deviation < ± 0.5dB, 20Hz – 20kHz
Output Load Capability 1KΩ and higher (Supports 10x paralleled 10KΩ loads)
Stereo Channel Separation >70dB@1KHz
