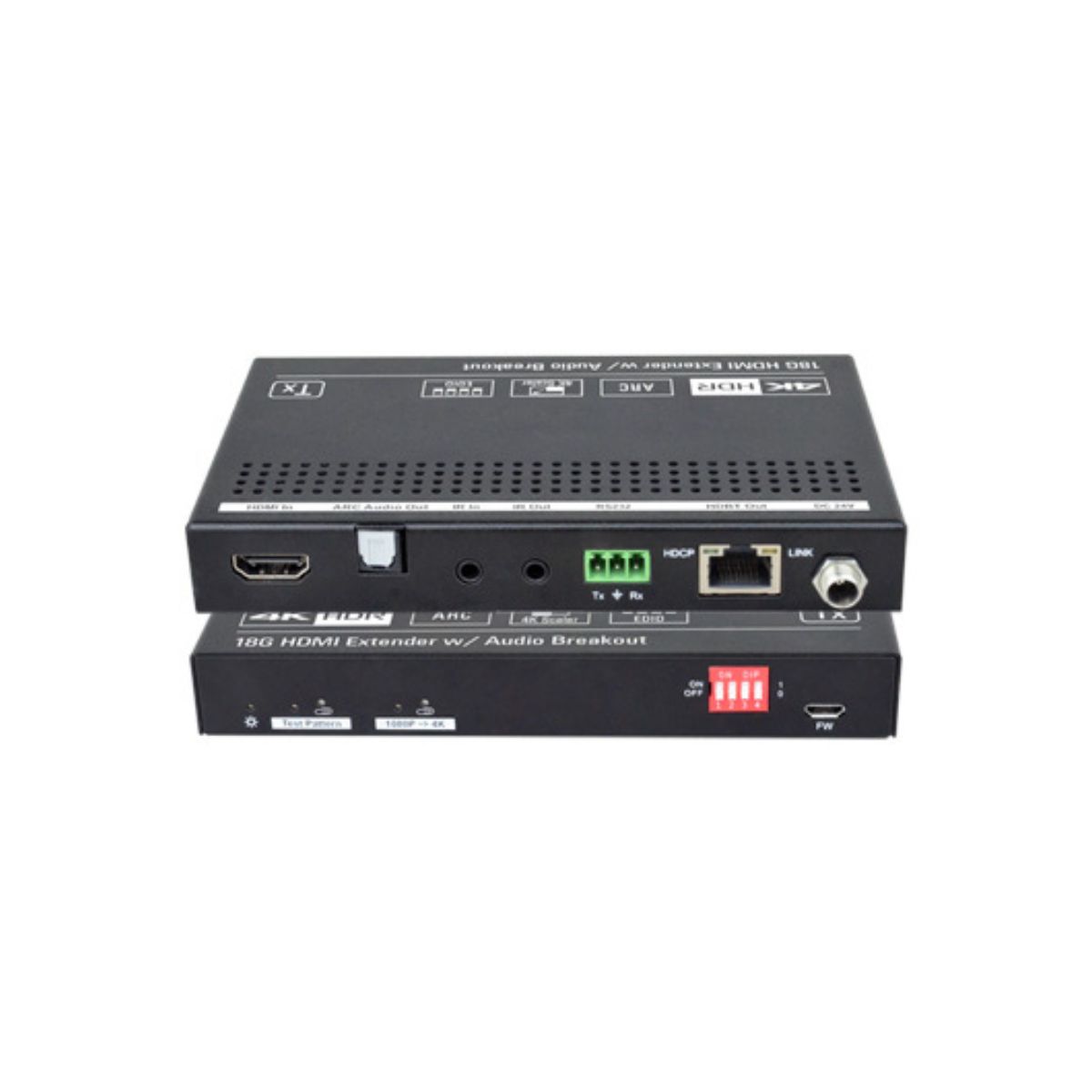

MPTP-T70SC-H2 HDMI is a 2.0 Extender, which consists of a transmitter and a receiver. It can extend 4K video to distances up to 131 feet (40 meters)and 1080P video to distances up to 230 feet (70 meters) over a single CATx cable. It supports audio de-embedding and ARC. It also supports bidirectional IR and RS-232 pass-through to control the source or display device remotely. PoC feature allows the transmitter and the receiver to be powered from each other, and only one power adapter is needed in the system. Besides passing EDID information from the display, there are multiple built-in EDID settings that can be selected by the 4-pin DIP switch on the front panel of the transmitter. Moreover, the extender supports convenient firmware upgrades through the Micro USB port.
-
Supports video resolution upscaling; the 1080P input can be automatically upgraded to 4K output.
-
SPDIF output on the receiver for source audio de-embedding.
-
18Gbps high bandwidth.
-
Advanced EDID management: multiple built-in EDID settings can be selected
-
Test pattern provides a built-in 4K/1080P image for troubleshooting.
-

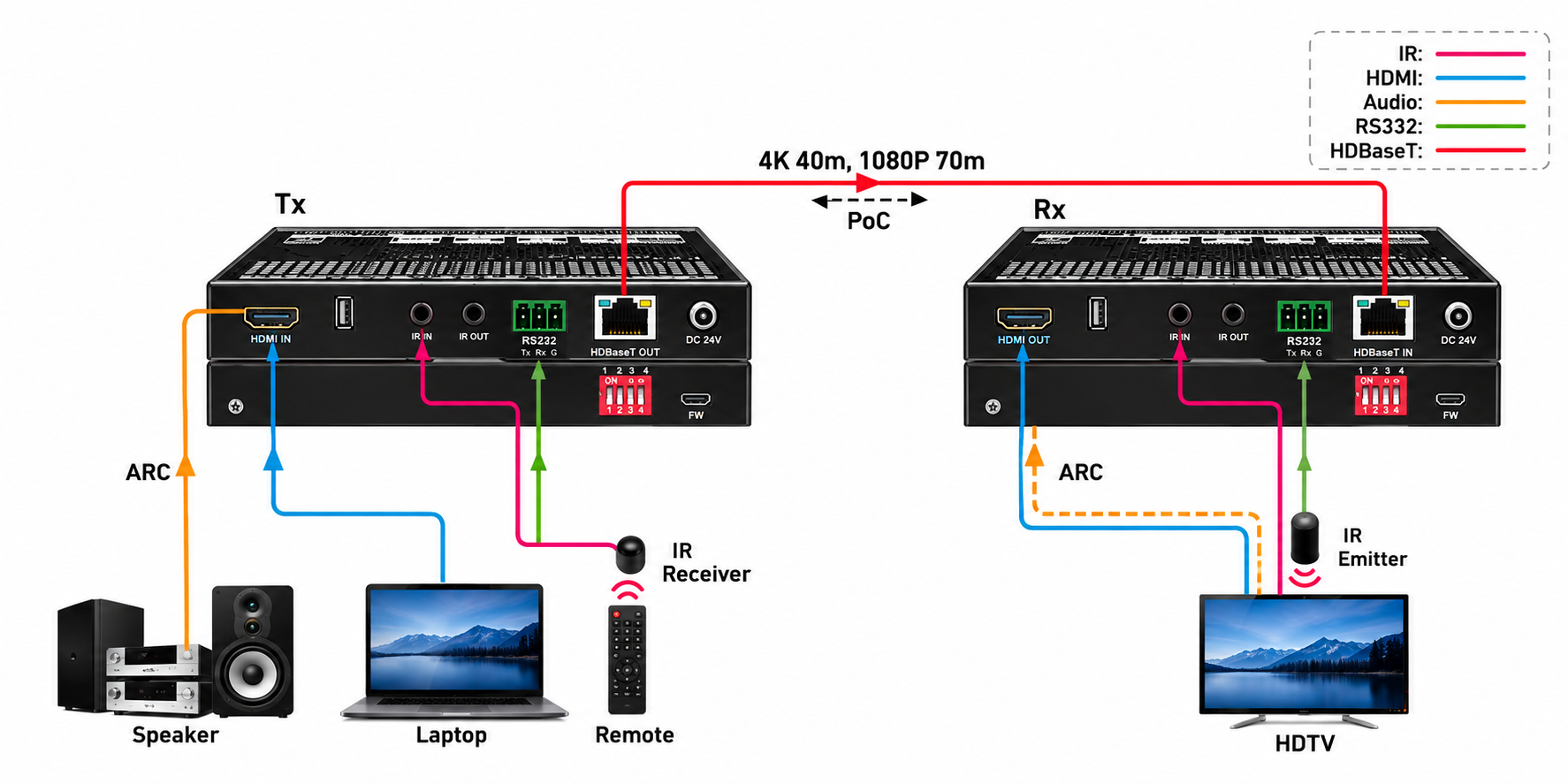

Bidirectional IR, RS232, and 24V PoC.
-
Supports ARC.
-
Supports CEC pass-through
-
Provides LEDs to indicate the current operating status.
-
Firmware upgrade via the Micro USB port.
| Input | (1) HDMI | (1) HDBT |
| Input Connector | (1) Type-A female HDMI | (1) RJ45 |
| Input Resolution | Up to 4Kx2K60Hz 4:4:4 8bit HDR10 | Up to 4Kx2K60Hz 4:2:0 |
| Output | (1) HDBT Out | (1) HDMI |
| Output Connector | (1) RJ45 | (1) Type-A female HDMI |
| Output Resolution | Up to 4Kx2K60Hz 4:2:0 | Up to 4Kx2K60Hz 4:4:4 8bit HDR10 |
| Input | (1) ARC Audio In | |
| Input Connector | (1) Toslink Connector | |
| Output | (1) ARC Audio Out | (1) Audio Breakout |
| Output Connector | (1) Toslink connector | (1) Toslink connector |
| Audio Format | Supports PCM, Dolby Digital, Dolby TrueHD, DTS and DTS HD. | |
| Frequency Response | 20Hz – 20KHz, ±3dB | |
| Max Output Level | 2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316mV) nominal consumer line level sign | |
| THD+N | < 0.05% (-80dB), 20Hz – 20KHz bandwidth, 1KHz sine at 0dBFS level (or max level) | |
| SNR | > 85dB, 20Hz-20 kHz bandwidth | |
| Crosstalk Isolation | > 70dB, 10KHz sine at 0dBFS level (or max level before clipping) | |
| L-R Level Deviation | < 0.3dB, 1KHz sine at 0dBFS level (or max level before clipping) | |
| Frequency Response Deviation | < ± 0.5dB 20Hz - 20KHz | |
| Output Load Capability | 1K and higher (Supports 10x paralleled 10K loads) | |
| Stereo Channel Separation | >70dB1KHz | |
| Control Part | (1) Test Pattern button, (1)1080P → 4K button, (1) EDID 4-pin DIP switch, (1) FW, (1) IR In, (1) IR Out, (1) RS232, (1) ARC Mode button, (1) FW, (1) IR In, (1) IR Out, (1) RS232 | |
| Control Connector | (1) Micro USB port, (2) 3.5mm jacks, (1) 3-pin terminal block | (1) Micro USB port, (2) 3.5mm jacks, (1) 3-pin terminal block |
