MPTP-T60S-H2

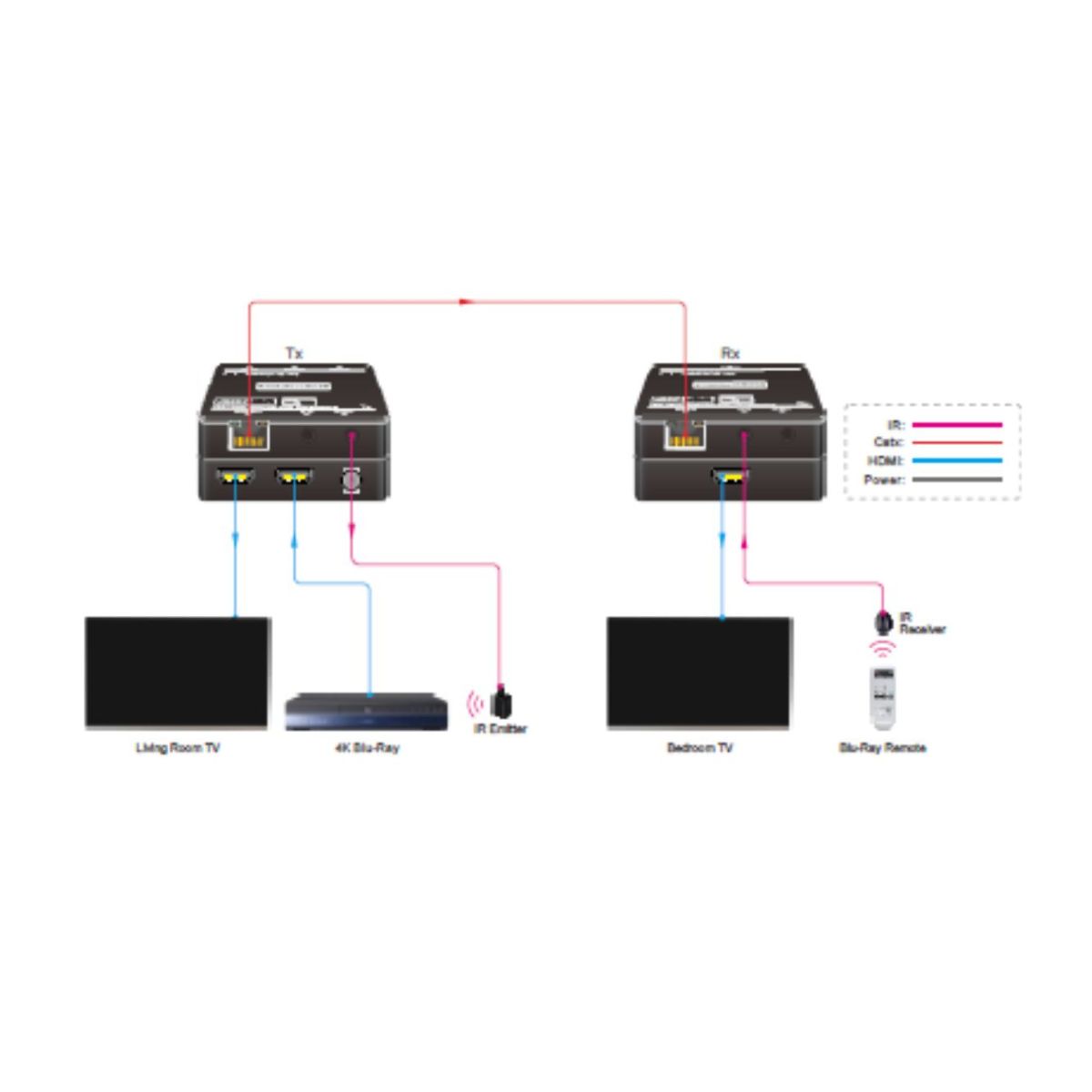

The MPTP-T60S-H2 is a cost-effective point-to-point extender set for HDMI V2.0 and IR signals; this kit supports 4K/UHD video @ 60 Hz with 4:4:4 Chroma sampling, as well as HDMI data rates up to 18Gbps, HDCP 2.2 compliant; It provides HDMI transmission up to 230 feet (70 meters) for 4K@60Hz 4:4:4, or 262 feet (80 meters) for 1080p over single CAT5e/6 cable. It supports video resolution down-scaling; the 4K input can be automatically downscaled to 1080p output for compatibility with 1080p displays
- Supports HDMI 2.0, up to 4K@60Hz 4:4:4, HDR10, 18G, HDCP 2.2.
- Extends signal up to 4K@70m and 1080p@80m over a single CAT5e/6 cable.
- HDMI loop-out on transmitter.
- Bi-directional IR pass-through.
- Supports video resolution down-scaling; the 4K input can be automatically degraded to 1080p output on receiver for compatibility with legacy 1080p display device.
- Features visually lossless compression with no latency.
- Smart EDID management
- Compact design, easy to install and simple to operate.

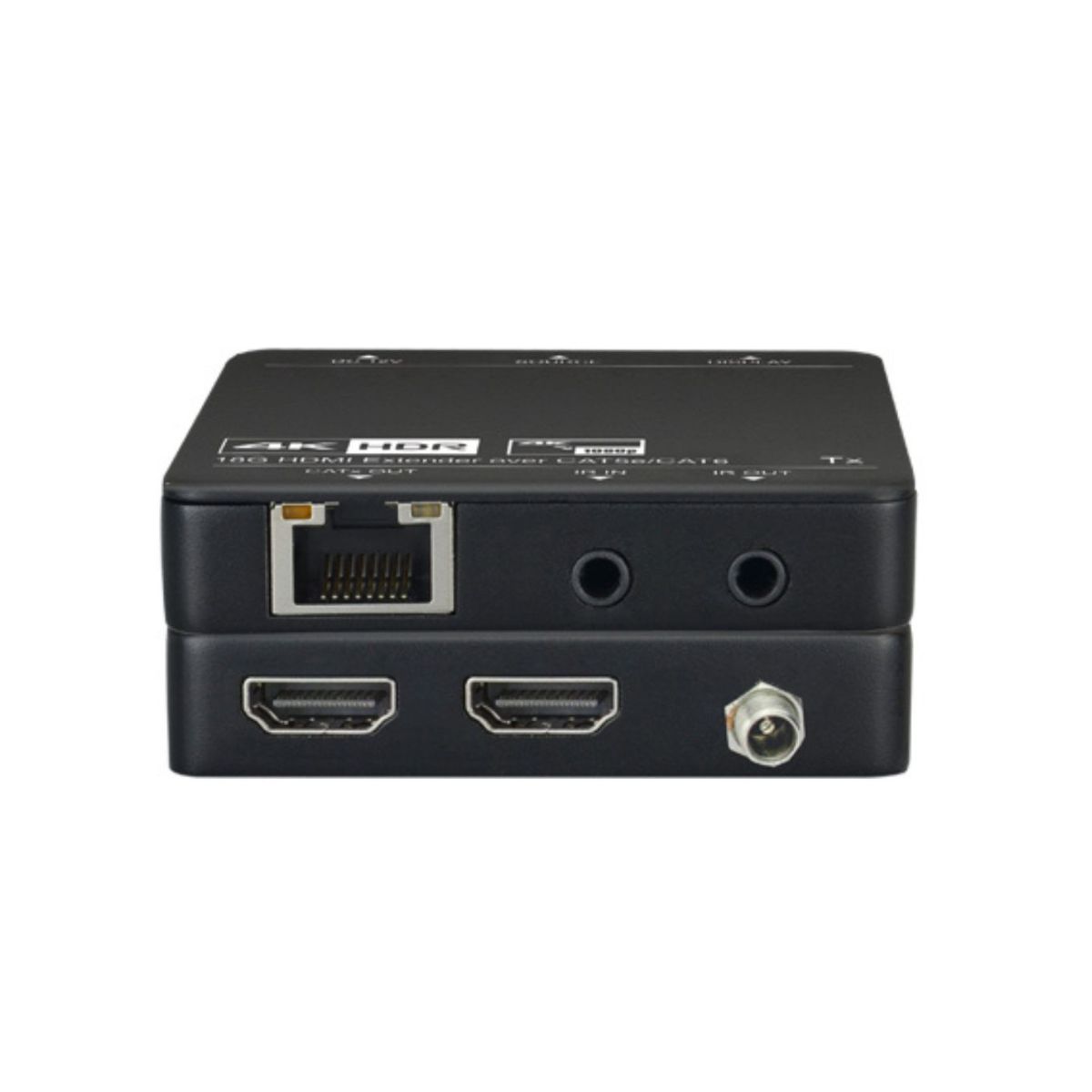

| Input | (1) SOURCE |
| Input Connector | (1) 19-pin type-A female HDMI |
| Output | (1) DISPLAY, (1) CATx OUT |
| Output Connector | (1) 19-pin type-A female HDMI, (1) RJ45 |
| Control | (1) IR IN, (1) IR OUT |
| Control Connector | (2) 3.5 mm mini jacks |
| Receiver | |
| Input | (1) CATx IN |
| Input Connector | (1) RJ45 |
| Output | (1) DISPLAY |
| Output Connector | (1) 19-pin type-A female HDMI |
| Control | (1) IR IN, (1) IR OUT |
| Control Connector | (2) 3.5 mm mini jacks |
| General | |
| Video Resolution | Up to 4K@60Hz 4:4:4, HDR10, up to 12bit |
| HDMI Audio Format | Supports LPCM 2ch, LPCM 5.1ch, LPCM 7.1ch, Dolby Digital 2ch, Dolby Digital 5.1ch, DTS 2ch, DTS 5.1ch, DTS 96/24 5.1ch. |
| Audio Sampling Rate(kHz) | Supports 32, 44.1, 48, 88.2, 96 |
| Transmission Distance | 4K/1080p ≤ 70 meters (230ft). Note that the CATx cable length should not be less than 15 meters for best video output |
| HDMI Version | Up to HDMI 2.0 |
