MP-USB44-3.2

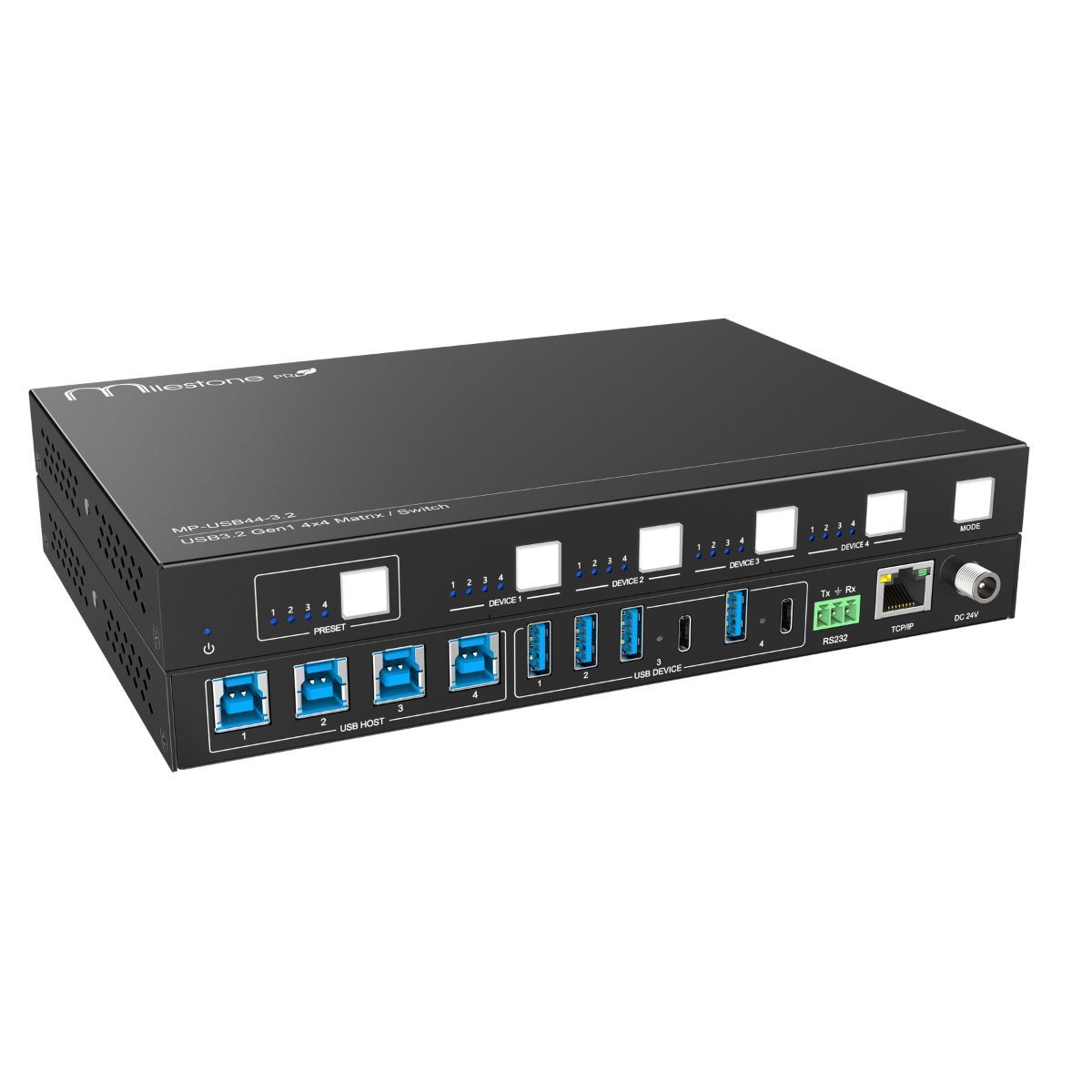

MP-USB44-3.2 is a 4x4 USB 3.2 Matrix Switcher. The matrix allowing 4 x USB devices to be shared between 4 x host devices, supporting Plug-and-Play. The USB data transfer rate is up to 5Gbps. The Matrix provides advanced features including a web interface module for control and configuration of the Matrix, along with RS-232 for seamless control integration.
Specification
| Input | (4)USB |
| Input Connector | (4)USB-A (2)USB-C |
| USB Standard | USB3.2 Gen1 |
| Output | |
| Output | (4)USB |
| Output Connector | (4)USB-B |
| USB Standard | USB3.2 Gen1 |
| Control | |
| Control port | (1)RS232, (1)TCP/IP |
| Control Connector | (1)3-pin terminal blocks, (1)RJ45, Buttons |
| General | |
| Bandwidth | 5Gbps |
| Operation Temperature | -10 ~ +55℃ |
| Storage Temperature | -25 ~ +70℃ |
| Relative Humility | 10% - 90% |
| Power Supply | DC24V1.5A |
| Power Consumption | 27.4W (Max) |
| Dimension (W*H*D) | 214mm x 23mm x 151mm |
Features
- Support USB 3.2 Gen1, 5Gbps
- Backwards compatible with USB 2.0 and 1.1
- Support front panel, GUI and RS232 control
- 5V900mA power supply via USB-A
- Web interface module for control and configuration of the MP-USB44-3.2
- Plug and Play
