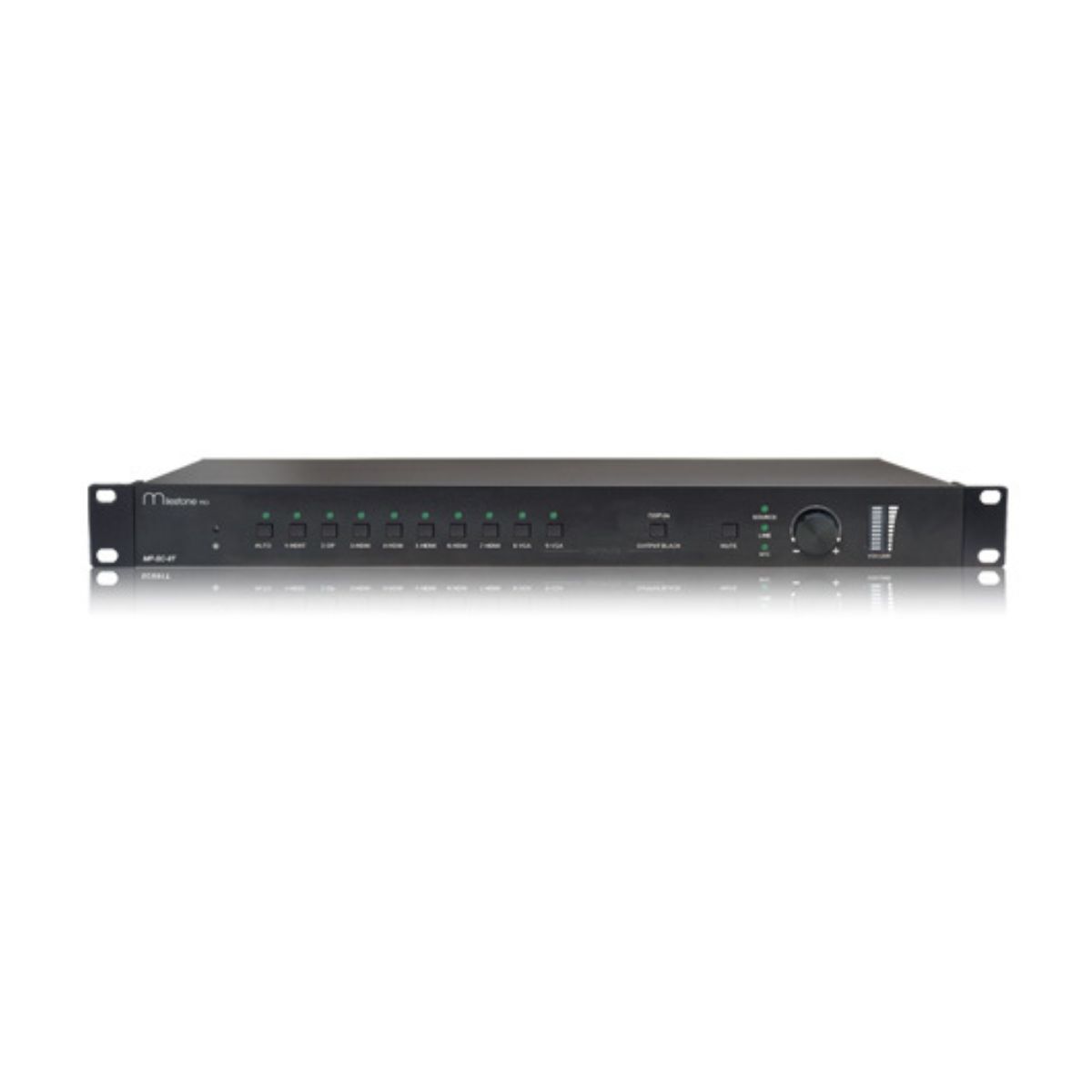

MP-SC-9T is a 9-input multi-format A/V presentation auto 4k Scaler Switcher that scales video signals to HDMI and HDBaseT outputs simultaneously. The HDBaseT output supports 48V PoH and can connect to a compatible HDBaseT Receiver up to a maximum of 100 meters (328ft). With 1 IR ALL IN and 1 IR ALL OUT, the IR control signals can be transmitted bi-directionally between the MP-SC-9T and compatible HDBaseT Receiver or HDBaseT Transmitter. It can be controlled either by front panel buttons, IR Remote, RS232, or GUI. With a microphone input that supports phantom power and a balanced stereo audio output for audio reinforcement, the MP-SC-9T can handle a myriad of A/V applications.
-
Compliant with HDMI 1.4 and HDCP 2.2.
-
Supports video source auto-switching function.
-
HDBaseT input with distances up to 70m (230ft) at 1080p and 40m (131ft) at 4K on a single CAT5e/6/7 cable.
-
HDBaseT output with distances up to 100m (328ft) at 1080p and 70m (230ft) at 4Kx2K on a single CAT5e/6/7 cable.
-
Output resolutions are selectable to ensure preferred output and support various output resolutions, such as 1280x720(default), 1920x1080, 1024x768, 1360x768, 3840x216030Hz, 3840x216060Hz.
-
DP, HDMI, and VGA video inputs can be embedded with external audio.
-
Supports line or Mic audio inputs, and the MIC port supports balance/unbalance signal, suppressing external noise effectively.
-
Controllable via buttons, IR Remote, RS232, and GUI.
-
Powerful OSD function.
| Input | (1) HDBaseT;(1) Display Port; (5) HDMI; (2) VGA |
| Input Connector | (1) RJ45; (1) Female Display Port; (5) Type A HDMI; (2) 15-pin Female VGA |
| Input Video Resolution | Up to 4Kx2K60Hz 4:2:0 |
| Video Output | (1) HDMI; (1) HDBaseT |
| Video Output Connector | (1) Type A HDMI; (1) RJ45 |
| Output Video Resolution | 1280x720 (default), 1920x1080, 1024x768, 1360x768, 3840x216030Hz, 3840x216060Hz |
| Video Standards | HDMI 1.4 and HDCP 2.2 |
