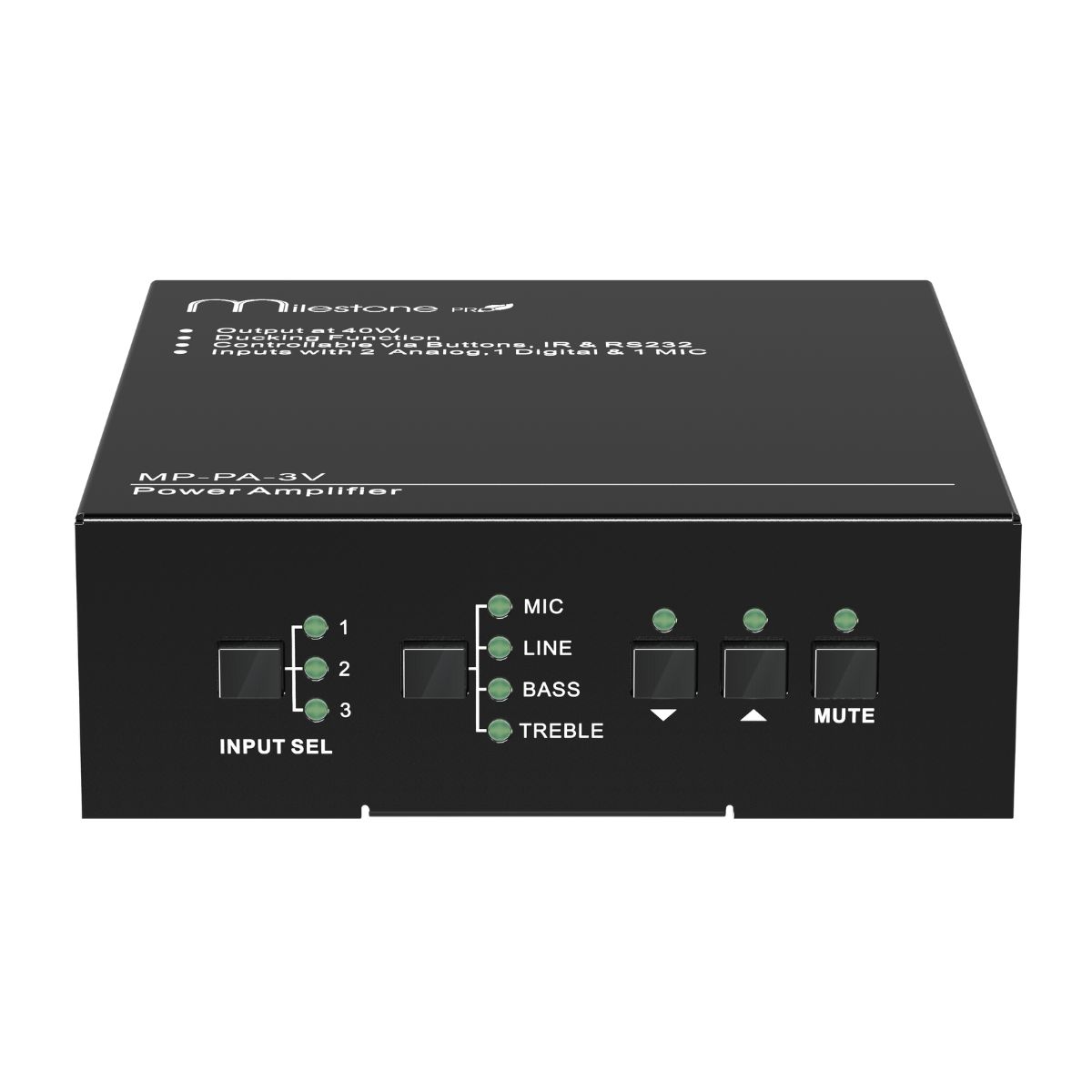

MP-PA-3V
The product is a 40 Watt power amplifier (Class-D) with output alternativelyat 70Vor100V. It has 2 stereo inputs (1x3.5mm jack for line-in, 2xRCA for L&R), 1digital input&1balanced MIC. It is integrated with powerful functions, including a ducking function, EQ control, MIC mixer, etc., and the MIC input supports 3 levels with condenser MIC, dynamic MIC & line audio input.
- Mono audio output at 40 watts
- Switchable between 70V and 100V
- Ducking function
- 16 ID codes for controlling different amplifiers
- 3-level MIC input; supports condenser microphone, dynamic microphone, and wireless microphone
- MIC port can support balance/unbalance signal, suppressing external noise effectively
- Two stereo audio inputs and one digital audio input, switchable by button, IRremote& RS232
- Volume/Bass/Treble controllable by buttons, IR remote & RS232
- Fast switching speed for good performance.
- Convection cooler; fan is not needed
- LED indicator for power and working status
- Antistatic case design to provide good protection for long-termand stableperformance.

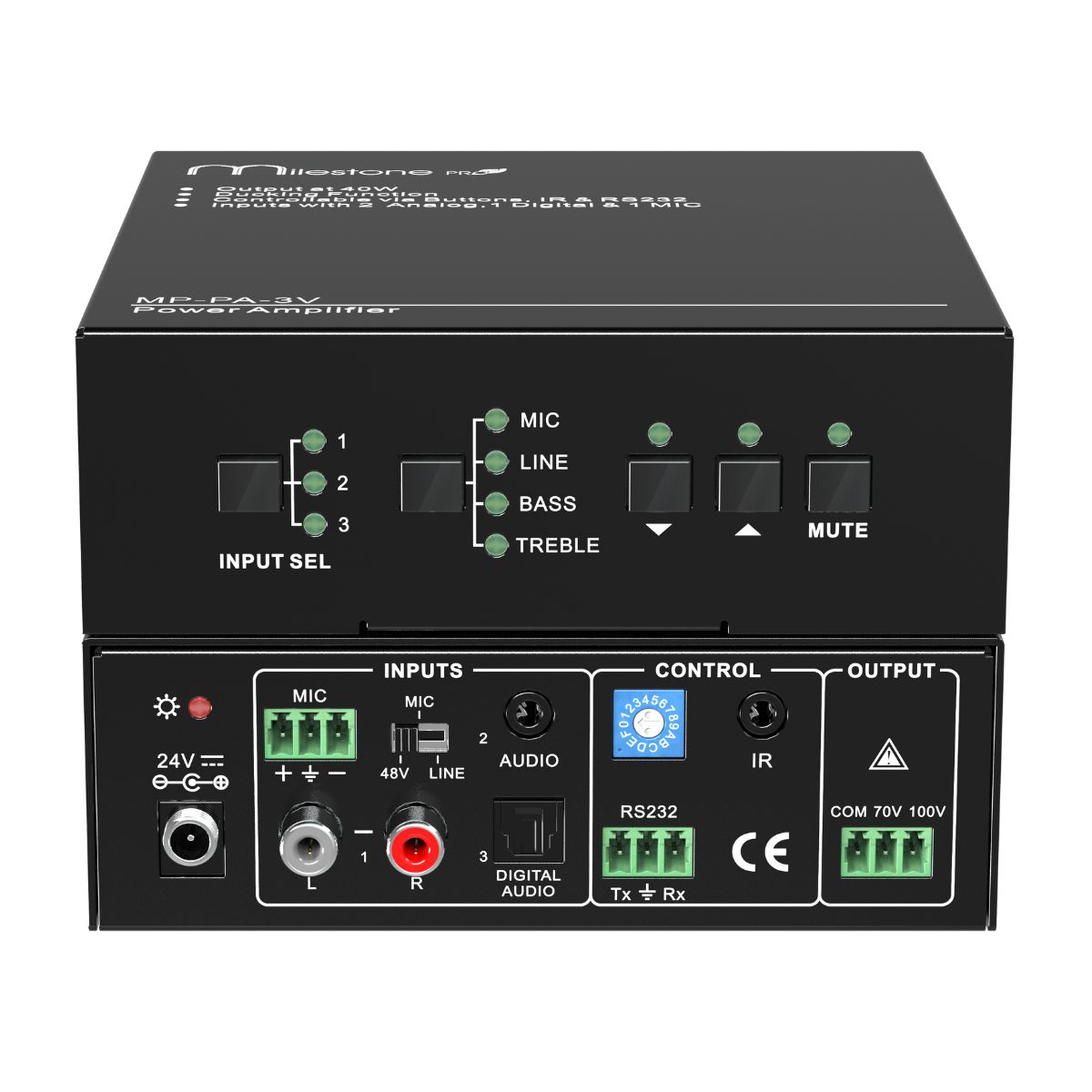

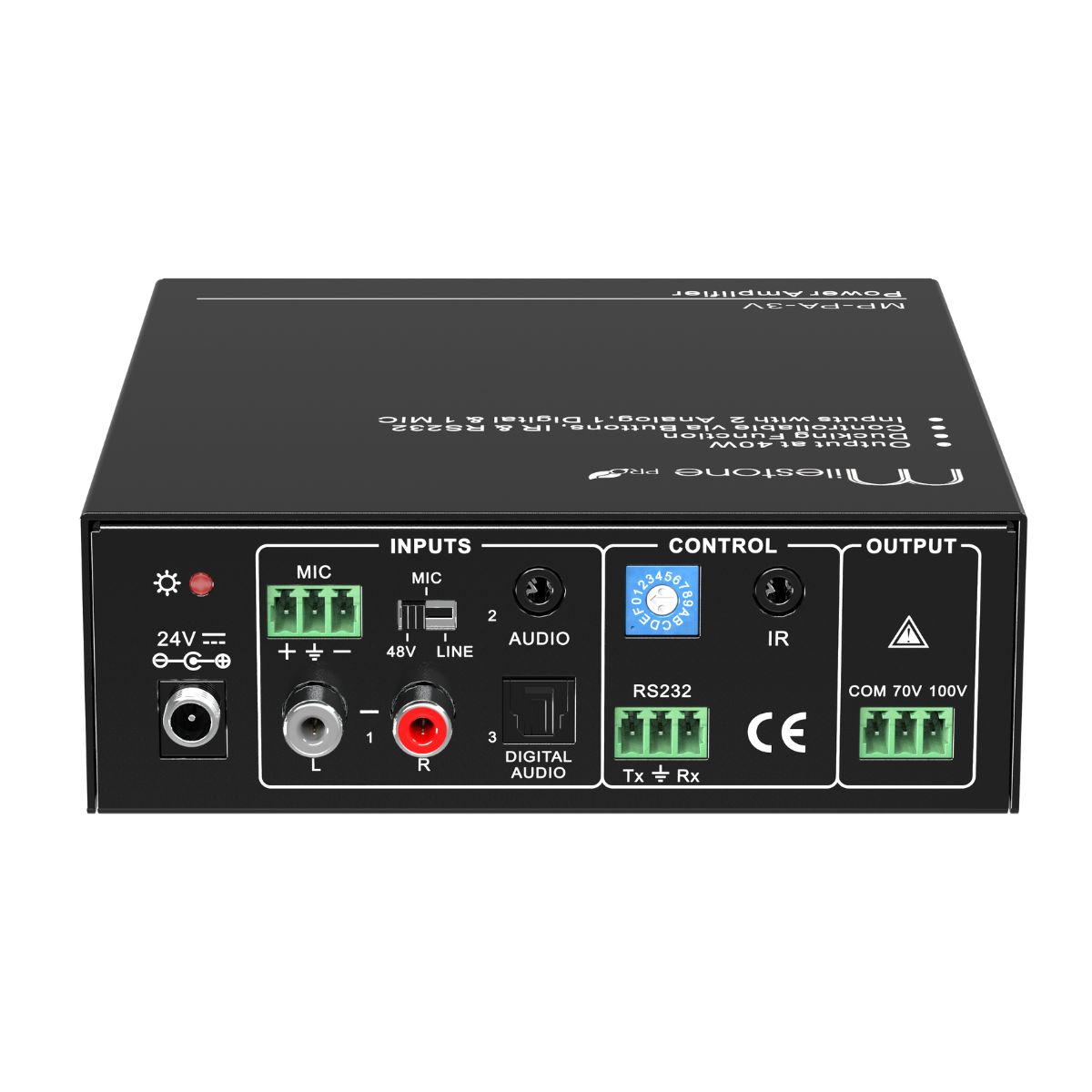

| Input | (2) Stereo Audio, (1) MIC, (1) Digital Fiber Audio |
| Input Connector | (2) RCA, (1) 3.5mm Jack, (1) 3-pole 3.81mm Captive Screw Connector, (1) SPF Fiber Connector |
| Input Impedance | >10KΩ |
| Output | (1) Mono Amplifier |
| Output Connector | (1) 3-pole 3.81mm Captive Screw Connector |
| Output Type | Constant voltage 70V or 100V. |
| Audio General | |
| Frequency Response | 20Hz ~ 20KHz |
| CMRR | >70dB@20Hz~20KHz |
| SNR | 80dB (Max) |
| Rated Power Output | 40Watt |
| THD + Noise | 1%@1KHz, 0.3%@20KHz at nominal level |
| Voltage Gain | 26dB |
| Control Function | |
| RS232 Control | (1) 3-pole 3.81mm Captive Screw Connector |
| Front Panel Control | Buttons |
| ID Code Control | 16 ID Codes for control |
| Optional | IR Remote & TCP/IP controlled by a programmable interface |
