MP-MUH2-42T

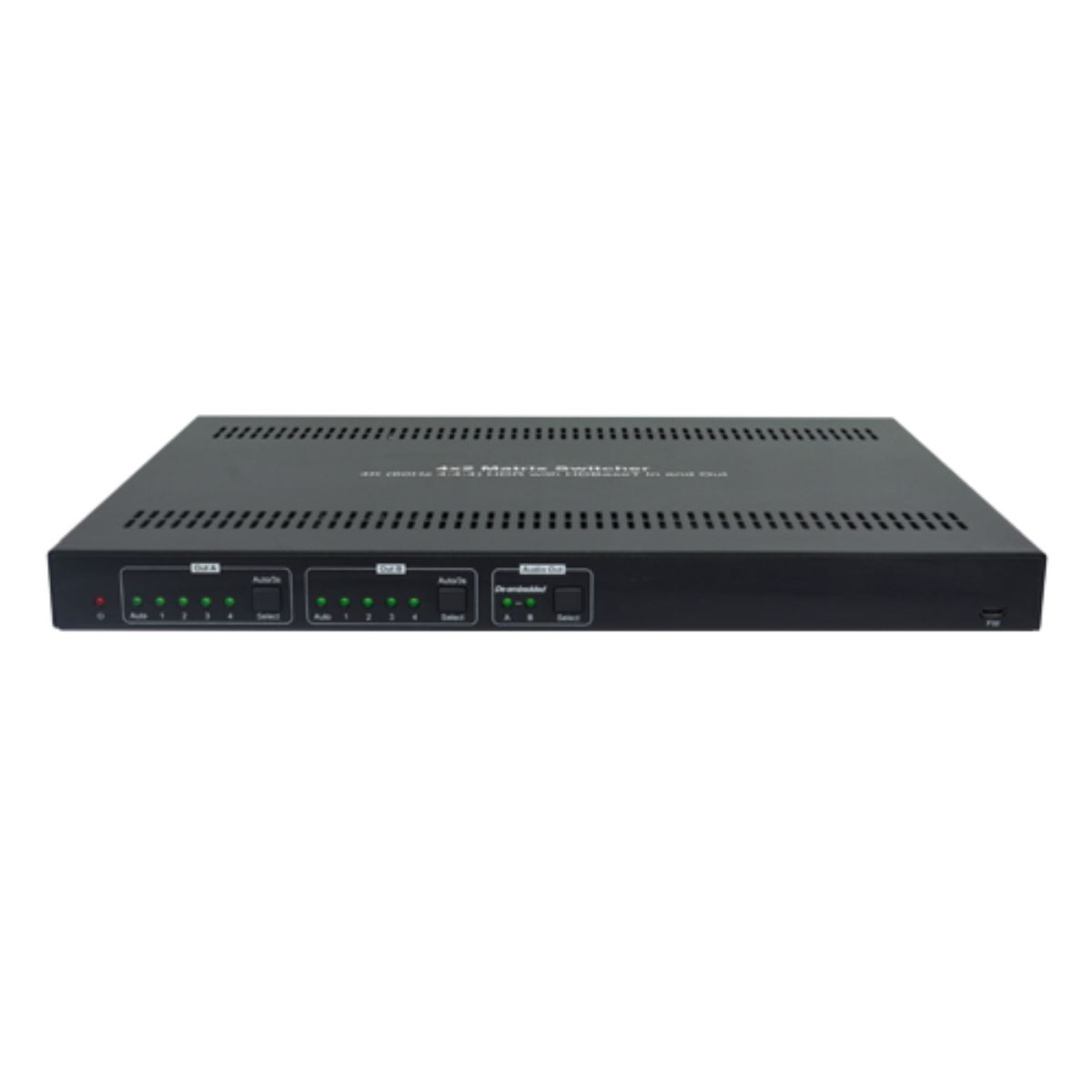

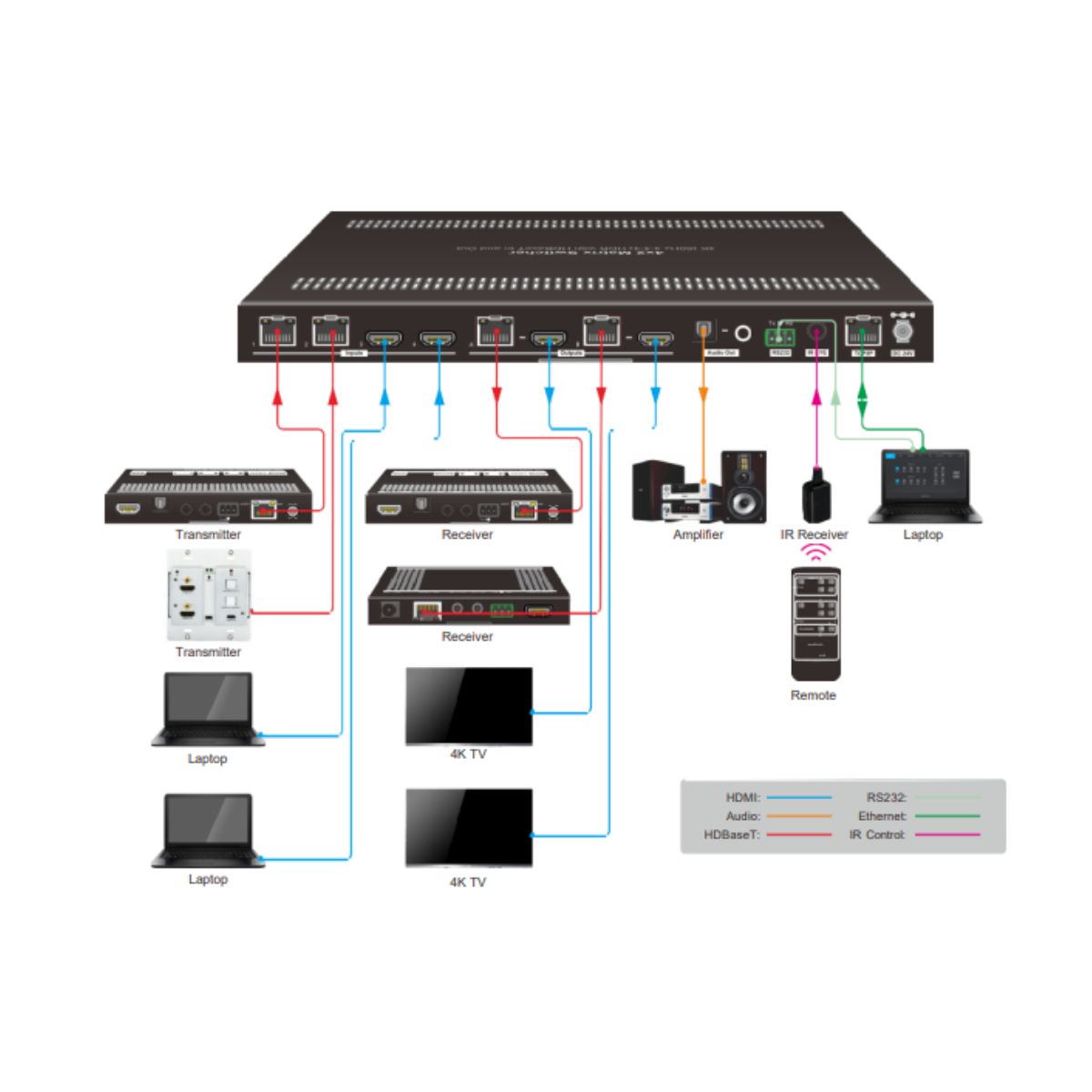

Thank you for your purchase of the professional 4x2 matrix switcher! The switcher is a four-input by two-output matrix switcher with two HDBaseT inputs, two HDMI inputs and two HDBaseT + HDMI outputs. The switcher transmits 4K video to distances up to 131 feet (40 meters) and 1080p video to distances up to 230 feet (70 meters) over a single CATx cable. The HDBaseT inputs and outputs support 48V Power over Cable (PoC) feature, allowing the compatible transmitters and receivers to draw their power from the matrix over the CATx cable.
- 4x2 matrix switcher with HDBaseT inputs and outputs.
- Fully compliant with the HDMI V2.0 and HDCP 2.2.
- Supports video resolution up to 4K@60Hz 4:4:4, HDR10, Dolby Vision.
- Supports auto-switching.
- Features two mirrored HDMI outputs for two HDBaseT outputs, and all outputs support 4K to 1080p down-scaling.
- HDBaseT inputs and outputs support 48V PoC, allowing the transmitters and receivers to draw their power from the matrix switcher over CATx cables.
Video Input
| Input | (2) HDBaseT, (2) HDMI |
| Input Connector | (2) RJ45, (2) Type-A female HDMI |
| HDMI Input Resolution | Up to 4K@60Hz 4:4:4, HDR10, Dolby Vision |
| HDBaseT Input Resolution | Up to 4K@60Hz 4:2:0 |
Video Output
| Output | (2) HDBaseT, (2) HDMI |
| Output Connector | (2) RJ45, (2) Type-A female HDMI |
| HDMI Output Resolution | Up to 4K@60Hz 4:4:4, HDR10, Dolby Vision. Supports 4K to 1080p downscaling. |
| HDBaseT Output Resolution | Up to 4K@60Hz 4:2:0. Supports 4K to 1080p downscaling. |
| HDMI Audio Signal | LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™ pass-through. |
