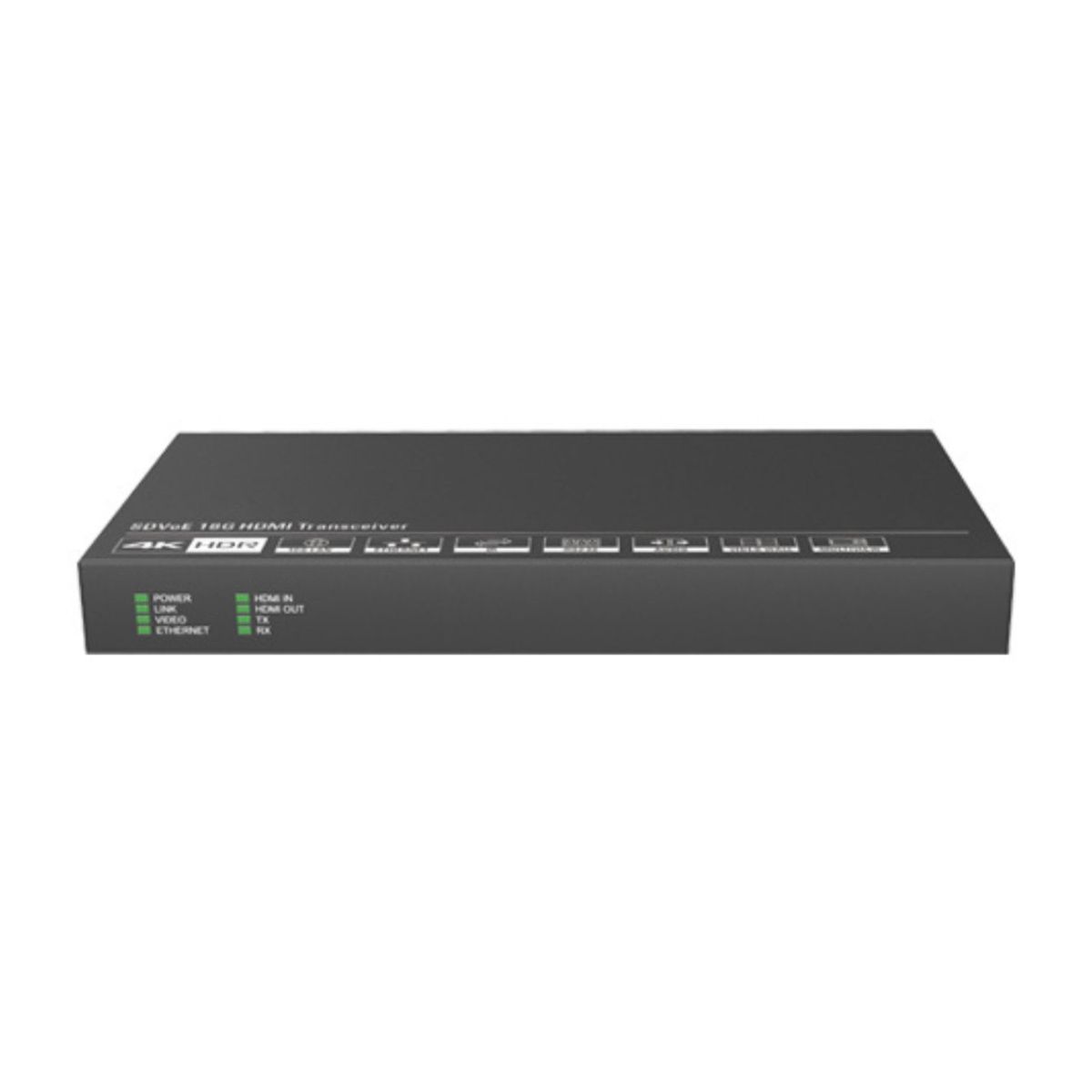

MP-IP300TR

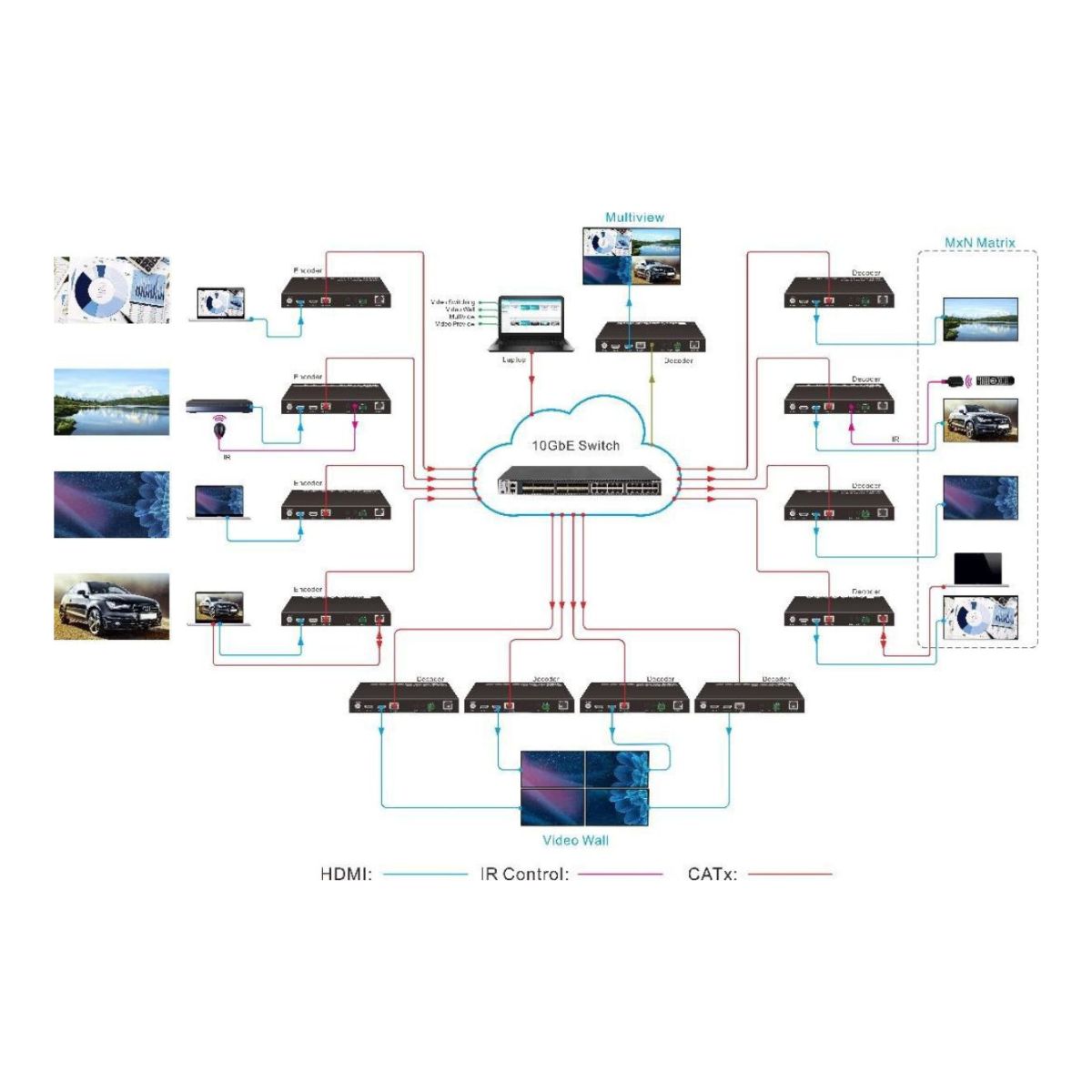

The MP-IP300TR is a network AV Transceiver with HDMI input and output up to 4K@60Hz 4:4:4, HDR. It is designed for HDMI transmission over an IP network with control signals at a distance up to 100m over CATx cable. It works with one control PC (Wake on LAN) and one 10GbE Switch to control a variety of functions
- BlueRiver™ technology. Flexible, used as either transmitter or receiver
- Streams uncompressed video with zero latency and control, with the flexibility of transmitting it together or to separate network destinations
- Supports HDMI input and output video resolution up to 4K@60Hz 4:4:4 8bit, 1080P 3D.
- 18Gbps high bandwidth and supports HDR10 and Dolby Vision.
- Transports RS232 and IR signals to any units by using Unicast or Broadcast IPV4 protocol or local control by API server
- MP-IP300TR series is configurable HDCP 2.2 compliant
- Supports arbitrary Multi-view layout
- Supports Video Wall mode up to 5x5 screens.
- Selectable output resolutions up to 4K scaling ability.
| Video Input | (1) HDMI |
| Video Input Connector | (1) Type-A female HDMI |
| HDMI Input Resolution | Up to 4Kx2K@60Hz 4:4:4 8bit |
| Output | |
| Video Output | (1) HDMI |
| Video Output Connector | (1) Type-A female HDMI |
| HDMI Output Resolution | Up to 4Kx2K@60Hz 4:4:4 8bit |
| General | |
| Control | (1) 10G LAN, (1) IR IN, (1) IR OUT, (1) RS232, |
| Control Connector | (2) RJ45, (2) 3.5mm jack, (1) 3-pin terminal block |
| Power Consumption | 18W (Max); |
| Operation Temperature | -10℃ ~ +55℃ |
| Storage Temperature | -25℃ ~ +70℃ |
| Relative Humidity | 10%-90% |
| Dimension (W*H*D) | 230.0mm x 25mm x 120.0mm |
