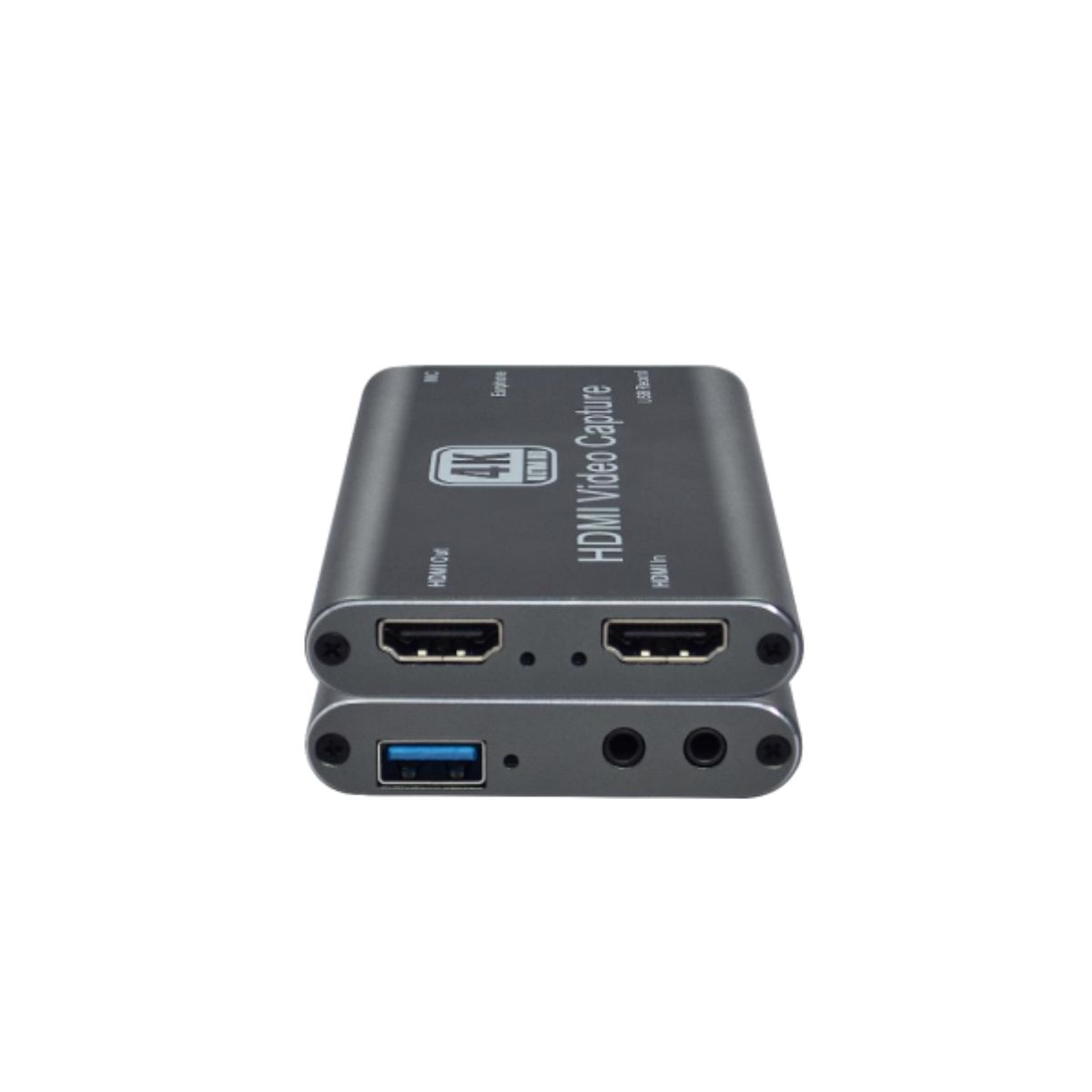

MP-HU3VC-H2

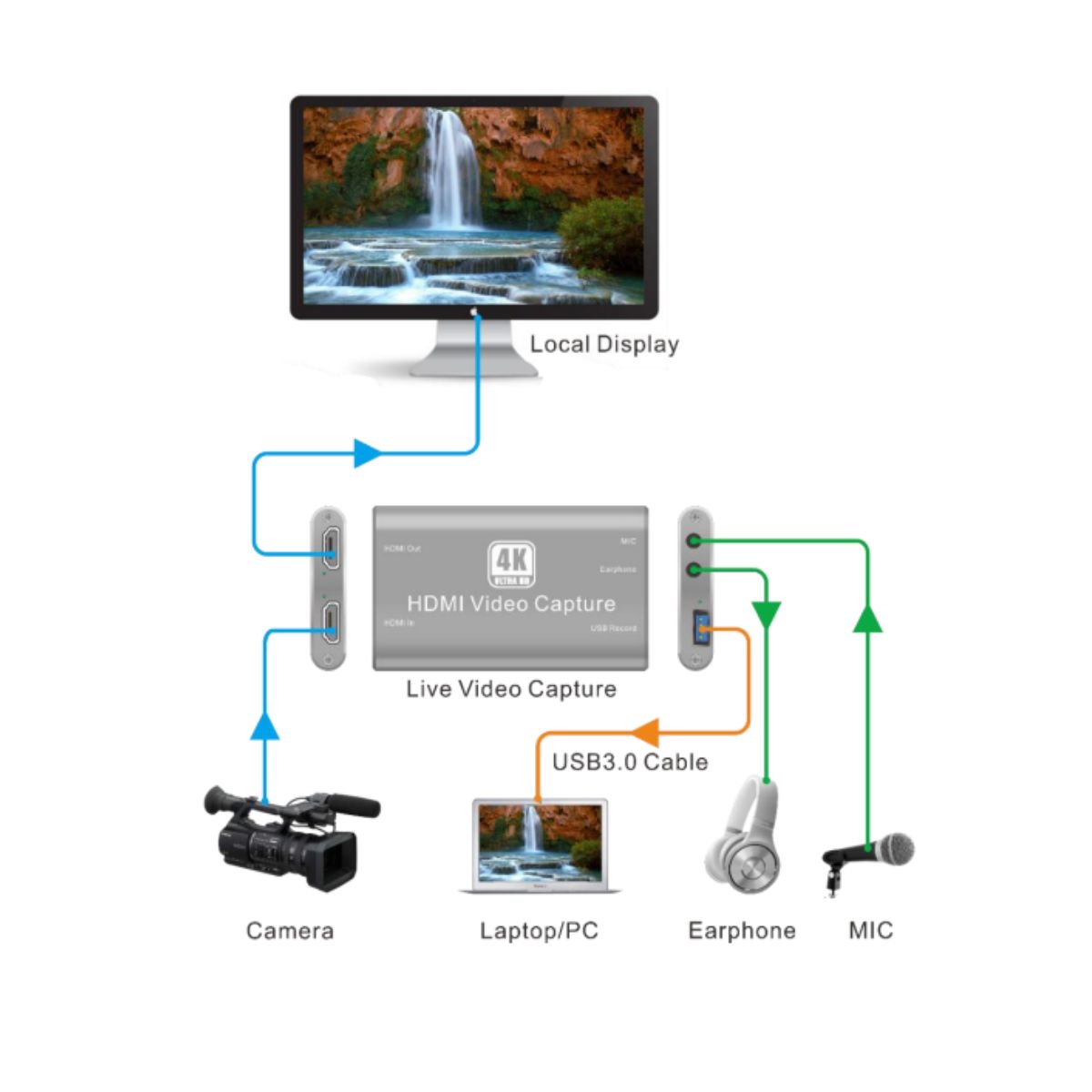

The MP-HU3VC-H2 is an HDMI-to-USB video capture device. The product is designed to capture video and audio signals from the HDMI source. The content captured can be saved to the PC/Laptop through a USB cable.
- Capture video and audio from HDMI sources
- HDMI video resolution is up to 4K@60Hz 4:4:4, HDR10
- Supports HDMI loop output for display device connection
- Capture resolutions up to 1080p at 60 frames per second through the USB port.
- Compatible with multiple third-party applications, such as OBS/ VLC/Potplayer/ YouTube on Windows, QuickTime on Mac OS X.
- Supports microphone input and headphone output.
- Powered from a USB port, no external power supply required.
- Lower latency
| Description | HDMI to USB Video Capture Device |
| Input | (1) HDMI In, (1) Microphone |
| Input Connector | (1) Type-A HDMI, (1) 3.5mm jack |
| Output | (1) HDMI Out, (1) USB Record, (1) Earphone |
| Output Connector | (1) Type-A HDMI, (1) Type-A USB, (1) 3.5mm jack |
| HDMI Standard | 2.0 |
| HDMI Input Resolution | Up to 4K@60Hz 4:4:4, HDR10 |
| HDMI Output Resolution | Up to 4K@60Hz 4:4:4, HDR10 |
| USB Output Color Space | YUV2, RGB |
| HDMI Audio Format | LPCM 7.1 audio, Dolby Atmos® , Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™ pass-through. |
| Microphone Audio Format | PCM 2.0 |
| Headphone Audio Format | PCM 2.0 |
| OS Support | Windows, Mac OS X, Linux. |
| Compatible Media Player | OBS, Potplayer, VLC, and so on. |
